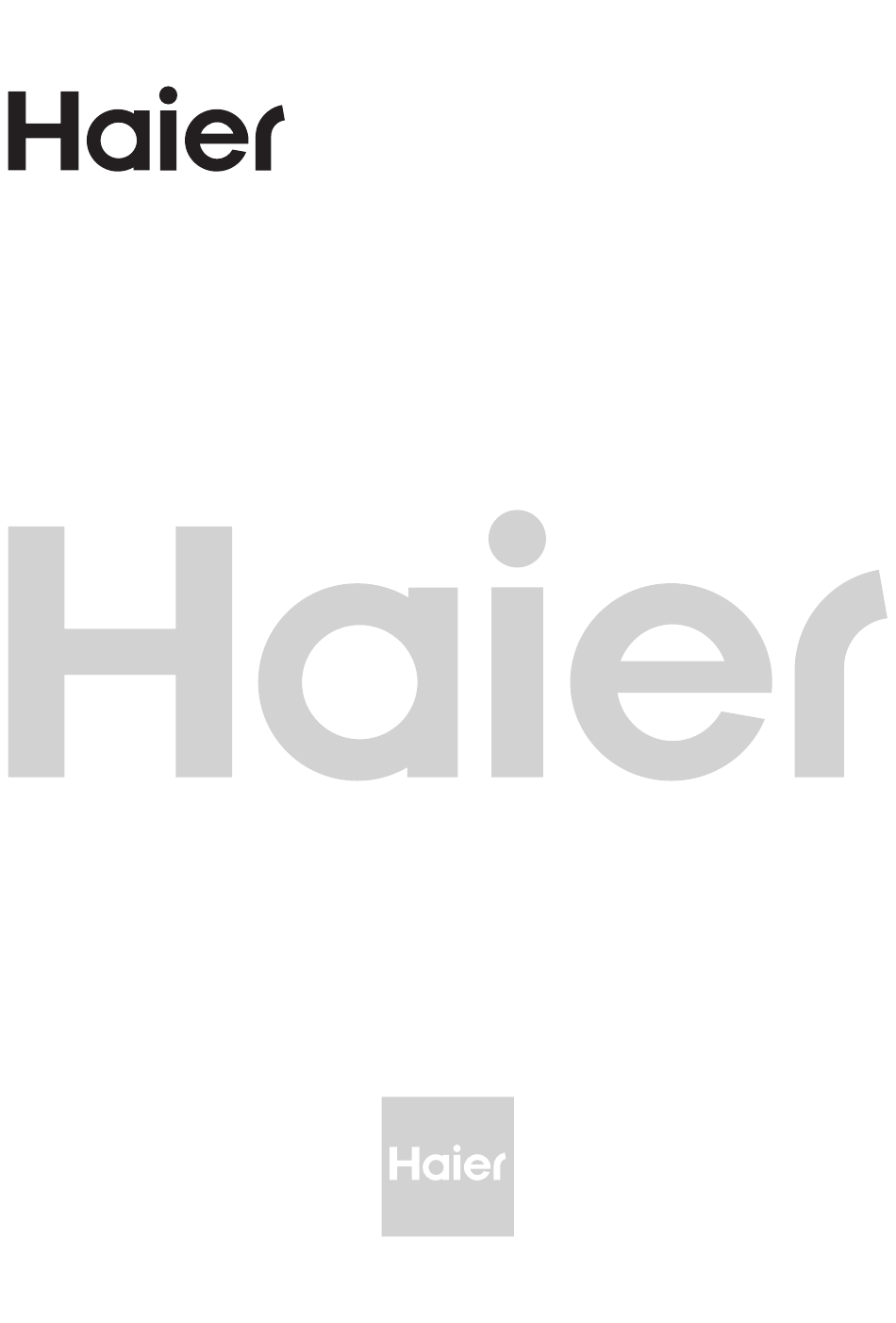

- Page 1 LED LCD TV OWNER' S MANUAL MODEL: L E 5 0 K 6 5 0 0 U A L E 5 5 K 6 5 0 0 U A L E 6 5 K 6 5 0 0 U A Please READ this manual carefully before operating your TV, and retain it for future reference...
-
Page 2: Table Of Contents
Contents 1、 Safety and warnings......................2-3 2、 Introduction........................4 Base stand assembly ......................5 4、 Wall Mount Installation....................6 5、 Installation........................7-10 6、 Remote Controller......................11-12 7、 TV Operation........................13-20 8、 Trouble shooting......................21... -
Page 3: 1、 Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. CAUTION 2) Keep these instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN! 3) Heed all warnings. CAUTION 4) Follow all instructions. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO 5) Do not use this apparatus near water. NOT REMOVE COVER (OR BACK).NO USER 6) Clean only with dry cloth. - Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.
-
Page 5: 2、 Introduction
INTRODUCTION Accessories Main features ① Used as Television, display terminal, PC display； Infrared Remote Controller.... 1 ② High luminance, wide viewing angle； Battery(AAA).......2 ③ Can store 1200 DTV programs； User’ s M anual.......1 ④ HDMI interface； Multi-Media player (USB); Main parameter Viewing Picture Size (Diagonal) 50"... -
Page 6: Base Stand Assembly
BASE STAND ASSEMBLY 1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display. Locate the 2PCS of bottom bracket into the gap in the bottom of the TV. 2. Lock screws below and check each screw is firmly tightened. M4X14MM Note: This stand is not a swivel stand. -
Page 7: 4、 Wall Mount Installation
WALL MOUNT INSTALLATION Step One: Use the expansion bolts( 4*36PWA ) to fix the wall mount brackets into the wall. wall Step Two: Fix the wall mount screws (M6x12mm/4pcs) into the rear side of the LCD TV,using the tongue of 8kgf.cm. -
Page 8: 5、 Installation
INSTALLATION Front panel 1: Remote control sensor. 2: Indicator LED: STANDBY. 3: Key board ≤8m STORE KEYBOARD The keyboard is located at the bottom left near the right side of signal indicator. Rocker Bottom 1. Middle Button: press longtime for “power” function; press once for “source”... - Page 9 INSTALLATION ANTENNA Note: Aerial connections: IEC(female). Input impendance: 75 unbalanced. STEPS: Be sure both the TV and computer are Power off. 1.Connect VGA and audio cable 2.Connect power cord 3.Power on the TV, switch to PC mode 4.Power on the PC This sequence is very important.
- Page 10 INSTALLATION PRESET MODE (PC) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 37.88 800*600 1024*768 48.36 1360*768 47.7 1280*768 47.3 67.5 1920*1080 3840*2160 67.5 3840*2160 112.5 PRESET MODE (HDMI) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 800*600 37.88 1024*768 48.36 1360*768 47.7 1280*768 47.3 1920*1080 67.5 3840*2160 67.5 3840*2160 112.5...
- Page 11 INSTALLATION AV EQUIPMENT This TV provides one group of AV ,one group of YPbPr for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. Yellow (video) Red (audio R) White(audio L)
-
Page 12: 6、 Remote Controller
REMOTE CONTROLLER Press to open the application store. APP STORE Press to turn the sound on or off. (Mute) Press to open the shortcut menu of tool. TOOL Press to adjust the volume level. VOL +/- Press to open Menu App Page. Press to open a favorite channel list. -
Page 13: 7、 Tv Operation
TV OPERATION Select the contry/ LCN/ Antenna Type/ Search Type to start auto tuning. Set your TV when turn on the TV at first time. Have a good time watching the TV . Set the network(wire/wifi). Select the wifi to connect. -12-... - Page 14 TV OPERATION Network Main Menu The Main Menu UI are as follow. Press ▼ /▲/◀ /▶ to select the menu. Wireless Network Select the WIFI ,and press the passwork to connect. Press ▼ /▲/◀/▶to select the APPS. Press ▼ /▲/◀/▶ to select the APP Center to select the APPS. Wired network Insert the Ethernet cable ,and select Auto get IP address to connect the Ethernet.
- Page 15 TV OPERATION Time Language Setting Select current display language. Press the ◀/▶ to select the Time to set. Input Method Select the Input method. System Upgrade Upgrade to the newest system version. System Recovery Recovery system to original state. Auto Attach Get the current time and date automatically. 24 Hours Select the 12 hours or 24 hours.
- Page 16 TV OPERATION Media Photo Press the ◄ / ► button to select the Photo. Multimedia Press the Input to select Media source. Folder ◄ / ► Press the button to select the Folder. Select the Video, and OK button to enter. Input Source Audio Track Change the audio track.
- Page 17 TV OPERATION TV OPERATION Adjust the hue(Red,Green,Blue) of the picture. Noise Reduction (Off/Low/Middle/High) You can clear up the input signal by set the item. Color Temp TV Setting Select the color temperature that you feel comfortable. Cool Gives white colors a blue tint. Press the MENU button to enter the TV Setting.
- Page 18 TV OPERATION TV OPERATION Auto Scan Auto Scan will search for available channels and program receivable channels. Press▼/▲ to select Auto Tuning, then press OK to start auto search. If you want to stop searching, press EXIT to stop searching. SPDIF Select to ON/OFF Digital Interface.
- Page 19 TV OPERATION TV OPERATION Press Enter button and input the password(the default password is 0000) to enter the sub - title , and press ◄ ► to sdjust. Hearing Impaired Set On/ Off. AUDIO DESCRIPTION Set On/ Off. Audio Language Select the language of audio.
- Page 20 TV OPERATION TV OPERATION Press Enter button to enter the sub-title, and press to sdjust. ◄ ► PVR USB Selector Select the USB device to recode the program. Record List List the programs have recorded. OSD Timer ,and◄ ► Select OSD Timer to adjust.
- Page 21 TROUBLE SHOOTING Trouble phenomenon Picture Audio Inspection antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interfere Noise motorcycle,fluorescent light Volume(inspect wether the mute function on the remote Normal Picture Mute control are started , or audio system are correct or not) Power cord is not inserted Power switch is not opened...
-
Page 22: 8、 Trouble Shooting
