1

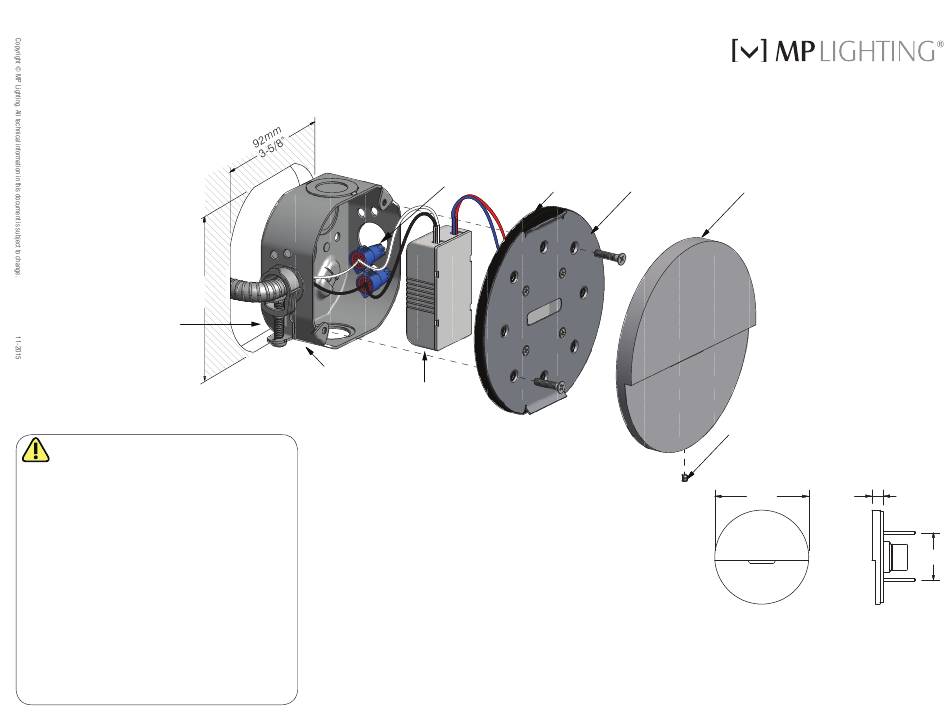

Connect primary to driver input wires
then fit into electrical box.
92mm
3-5/8"
Box supplied by others
• For cast in concrete use
appropriate box rated for cast
in concrete. Consult local
electrical code.
CAUTION
• Read all instructions.
• WARNING: RISK OF FIRE OR ELECTRICAL SHOCK: Do not make
or alter any openings in the compartment of wiring or electrical
components during installation. Do not alter or add ballasts, or
any other electrical components.
• Installation and use of this fixture mounting assembly requires a
person familiar with the construction and operation of luminaire
electrical systems and the hazards involved, if not qualified, do
not attempt installation.
• Turn off power before installation.
• Do not over tighten screws.
• Do not spray water on fixture during cleaning. Avoid using
detergents with hand softeners, anti-bacterial agents, glass
cleaners or acrylic cleaning products.
• KEEP THESE INSTALLATION INSTRUCTIONS.
2
Align crossbar to electrical box and tighten
mounting screws.
Waterproof
Wire Nuts
Standard 4"
Non Dimmable Driver
Octagon Box
3W - LED8W350L
6W - LED9W700L
For DC Driver
AC Input Voltage: 100~240V
50/60Hz
DC Output:
3W - 350mA constant current
6W - 700 mA constant current
Parts
Qty.
• LED unit w/ gasket
• Cross countersunk screws
• Set Screw
• Universal crossbar
• LED driver
• Waterproof wire nuts
Tools
•
Allen Key M3
included
• Phillips screwdriver
not included
3
Align cover plate to crossbar. Tighten
screws.
Gasket
Crossbar
Remote Driver Option
1
2
Connect fixture wires directly to
1
low voltage box leads.
1
1
2
Maintenance
Use a soft cloth to remove
any fingerprints.
t
1.877.708.1184
f
604.708.1185 www.mplighting.com
16 West 4th Avenue, Vancouver BC V5Y 1G3, Canada
Cover Plate
5/8
5 1/8
Set Screw
5 1/8
5/8
L740-L48
Installation
Instructions
3 1/4
2 1/2
