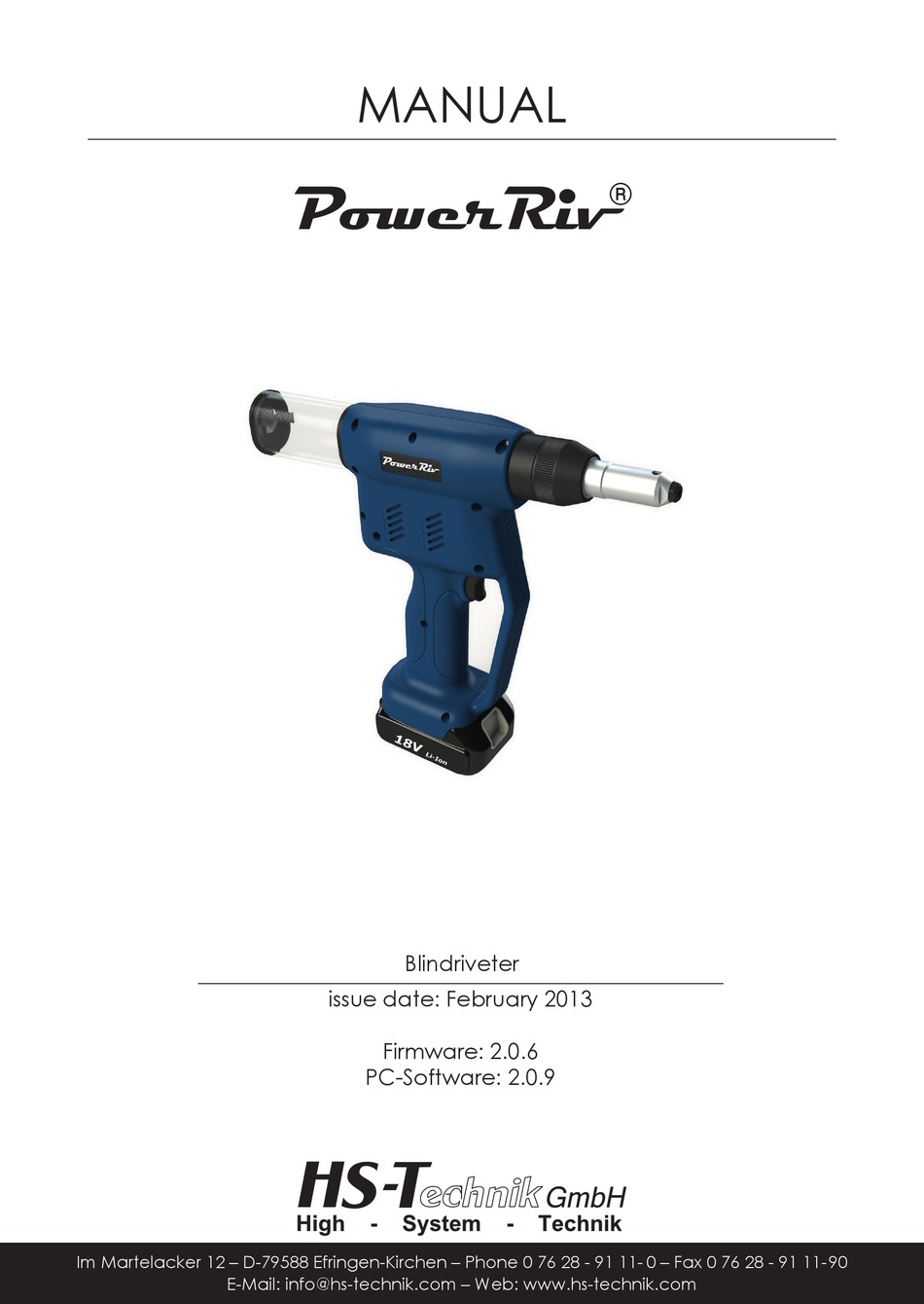

- Page 1 Blindriveter issue date: February 2013 Firmware: 2.0.6 PC-Software: 2.0.9 - 1 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 2: Table Of Contents
4.4.3. Emtying the container ......................page 23 4.4.4. Setting the first rivets ......................page 25 - 2 - - 2 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 3 Declaration of EU conformity ....................page 47 - 3 - - 3 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 4: Basic Information
• compliance with inspection and maintenance procedures. Any other use is considered improper use of the tool. HS-Technik GmbH is not liable for damage resulting from improper use. 1.2.1. Improper use We assume no liability for damage or business disruption due to failure to adhere to the instructions contained in this document or due to improper use of the blind rivet setting tool. -
Page 5: Warranty And Liability
It contains the relevant rules and information, which may not be: • duplicated • distributed or • otherwise shared, either in whole or in part. The copyright for this document remains with HS-Technik GmbH. Address of the manufacturer: Im Martelacker 12 D-79588 Efringen-Kirchen Phone: 0 76 28 - 91 11- 0... -
Page 6: Basic Safety Information
The tool may only be used: • for intended purposes • if it is in proper and safe working condition - 6 - - 6 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 7: Electrical Hazards
Keep the tool away from heat, oil, sharp edges or moving parts. - 7 - - 7 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 8: Security Of Persons
Power tools are hazardous when used by unexperienced persons. - 8 - - 8 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 9: Service
2.4.3 Service All repairs should be carried out by qualified personnel, using only original replacement parts available from HS-Technik GmbH. Doing this will ensure that tool safety is maintained. - 9 - - 9 - Im Martelacker 12 –... -
Page 10: Lithium-Ion Battery
A short circuit between the battery contacts may result in burns, fire or explosion. - 10 - - 10 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 11: Battery Chargers
Should repairs or maintenance be required, use only original replacement parts. - 11 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 12: Cleaning And Disposal Of The Tool
Use the tool with care. Proper working conditions should exist. Maintain concentration while working. - 12 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 13: Characteristics / Features
** optimized pulling unit for your chuck jaws G=Gesipa, T=Titgemeyer, L=Lobster - 13 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 14: Blindrivet Setting Tool Powerriv
Nosepiece must match with the chuck jaw system! - 14 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 15 3.2. Battery power tool PowerRiv ® - 15 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
- Page 16 Illuminates the work area during the rivet setting operation - 16 - - 16 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 17: Initial Operation
The computer automatically locates and installs the driver. You can also download the PC software and the USB driver from our homepage www.hs-technik.com in the "Downloads" area. Remove the battery. Connect the riveting tool to an unused USB port on your computer using the provided USB cable. - Page 18 The directory path now appears in the input window. Click "Next". - 18 - - 18 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
- Page 19 - 19 - - 19 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 20: Installing The Pc Software
The window setup panel appears. - 20 - - 20 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 21: Quick Start
The PC software is at the level indicated on the riveting tool ID plate (software). - 21 - - 21 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 22: Inserting The Battery
4.4.2 Inserting the battery Please note: Only batteries approved by HS-Technik GmbH for use in the PowerRiv riveting ® tool may be used. Using incorrect batteries can ruin both, the batteries and the riveting tool. HS-Technik GmbH assumes no liability for the use of incorrect batteries. -
Page 23: Emtying The Container
- 23 - - 23 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 24 Please note: The tool settings have not yet been configured. The tool currently sets rivets using preset default values. - 24 - - 24 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 25: Setting The First Rivets
- 25 - - 25 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 26: Programming The Riveting Tool For Special Applications
USB port at your computer. On the display the message "USB" appears. - 26 - - 26 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 27: Starting The Tool Manager Software (Niettechnik.exe)
- 27 - - 27 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 28: Change Settings Of The Tool
At "0" the function is deactivated. - 28 - - 28 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 29 Choose the minimum of current till a rivet process should be evaluated. (Default: 6A) - 29 - - 29 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
- Page 30 NOTICE: Before closing click "write" to save you change on the power tool. - 30 - - 30 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 31: Maintenance And Disposal
® ensure touble free operation and prolong its the service life. General information: 1. Maintenance work may be performed only by qualified service personnel. Original HS-Technik replacement parts must be used. Document all maintenance work with - serial number of the tool - date - rivet count - type of work performed The following maintenance and checks must be performed at regular intervals and when the tool is heavily soiled. -
Page 32: Changing / Extending The Chuck Jaws And Extensions
Identical process at the fast exchange system. - 32 - - 32 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 33 Slide the sleeve back on. Tighten the nut by hand. - 33 - - 33 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 34: Changing The Nosepiece
There are various kinds of nosepieces for the different rivet types. Please note that rivets may only be set using a compatible nosepiece. Consult the following table to fi nd out which nosepiece fi ts your rivet. The values provided in the table apply to standard blind rivets and nosepieces made by HS-Technik GmbH. For special rivets, please contact your HS-Technik representative. Art. no. Description HST-M*-18 Nosepiece for max mandrel diameter 1.8 mm... -
Page 35: Compression Bushing
In the following table you can see if the rivet matches with your compression bushing. The values of the table applying for standard blind rivets and HS-Technik GmbH compression bushings. For special rivets please contact your representive HS-Technik GmbH. -
Page 36: Cleaning
Clean the interior of the sleeve thoroughly with a cloth. - 36 - - 36 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 37: Storage
The battery is not subject to regular waste. Take it to a battery collection point or return it to the manufacturer for disposal. - 37 - - 37 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 38: Technical Data
Weight 1,9 kg without battery 2,0 kg without battery - 38 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 39: Explanation Of Display Indicators
> 30 % > 10 % > 5 % - 39 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11- 90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 40: Overview Of Display Indicators
6 Start of a new rivet counting job. 7 Rivet "OK", one more rivet to be set to finish the job. - 40 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 41 Tool Manager as described in chapter 5.3. - 41 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 42: Troubleshooting
(see chapter 5.3). not to be evaluated. - 42 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 43: Drawings
9. Drawings _________________________________________________________ - 43 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... - Page 44 Index Änderung Name Datum D:\Helmuth\Solid Works 2009\Blindnietgeräte\Blindnietgerät PowerRIV\Explosionszeichnungen\PowerRiv HST-PR - 44 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
-
Page 45: List Of Replacement Parts
Index Änderung Datum Name D:\Helmuth\Solid Works 2009\Blindnietgeräte\Blindnietgerät BNG-2011\Ritzelwelle komplett - 45 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 46: Delivery Contents
Software, rivet counter, display etc. without battery, nosepieces, charger and pulling unit - 46 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com... -
Page 47: Declaration Of Eu Conformity
Im Martelacker 12, D-79588 Efringen-Kirchen H.-Martin Hanke Geschäftsführer Date: 01.09.2012 - 47 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
