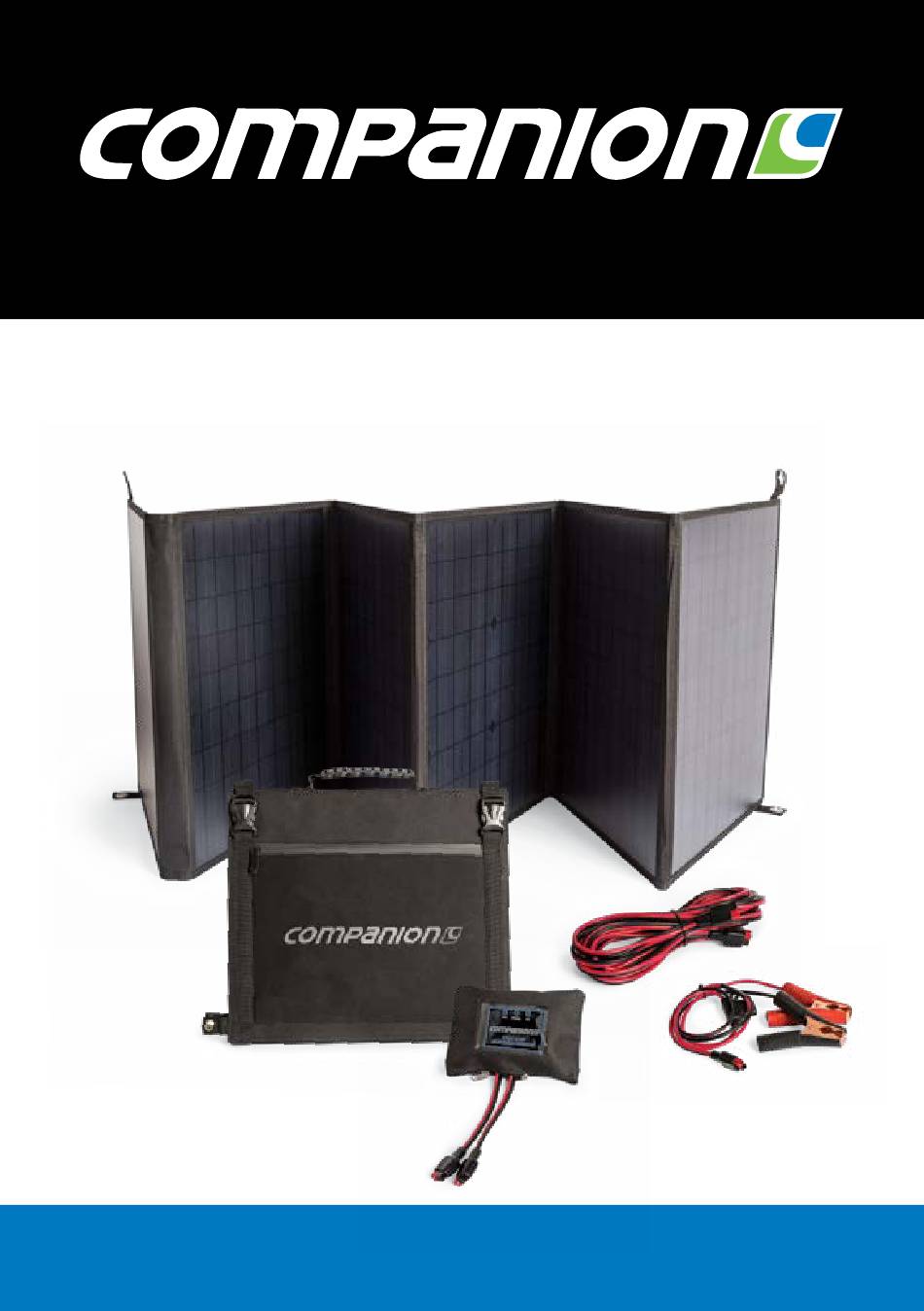

- Page 1 OWNERS MANUAL SOLAR MAT KIT 125W Part No. COMPBI023 Australia’s original Outdoor brand...
-
Page 2: Product Features
INTRODUCTION The Companion 125W Solar Mat Kit includes the latest high performance monocrystalline cells with an outstanding 19.5% efficiency making it the ideal portable solar charging solution for charging all types of 12V DC batteries (excluding lithium). Ideally suited for camping, 4WDriving, caravanning, boating and other activities to power a range for 12V DC accessories directly from your 12V DC battery, including;... - Page 3 OWNERS MANUAL GENERAL WARNINGS IMPORTANT: THIS USER MANUAL CONTAINS IMPORTANT SAFETY INFORMATION AND OPERATING INSTRUCTIONS. PLEASE READ THIS MANUAL CAREFULLY TO FAMILIARISE YOURSELF WITH THE PRODUCT AND ACCESSORIES BEFORE CONNECTING TO THE BATTERY BEING CHARGED. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.
- Page 4 • Ensure correct DC clamp connection ‘polarity’ when ‘connecting’ to the battery being charged. Connect the ‘Red’ coloured DC clamp to the positive ‘+’ battery terminal. Then connect the ‘Black’ coloured DC clamp to the negative ‘-’ battery terminal • Immediately cease charging if the battery being charged is found to be excessively hot, leaks or appears to be taking a long time to charge •...
- Page 5 1 – 125W solar mat (folded) OWNERS MANUAL SOLAR MAT KIT 125W 2 – Heavy duty 900D polyester material Part No. COMPBI023 3 – Carry handle with rubber grip insert 4 – Retaining straps with quick release buckles 5 – Front and rear storage pockets 6 –...
- Page 6 CONTROLLER/REGULATOR SPECIFICATION AND OPERATION Features: • Advanced Micro Control Unit (MCU) uses Pulse Width Modulation (PWM) technology for high efficient operation • Able to charge four types of 12V DC batteries; GEL, AGM, WET (conventional lead-acid) and Calcium ONLY • 5 stage charging with built-in regulator prevents your battery from being over or undercharged. Overcharging occurs when the charge voltage is unregulated and can result in premature battery failure.
- Page 7 OWNERS MANUAL OPERATION – CHARGING Level 4 Level 3 Level 5 Level 2 Level 1 Level 1. Soft Charge: When a battery has been over-discharged, the controller will softly ramp up the battery voltage to 10V Level 2. Bulk Charge: Maximum current charging until the battery rises to absorption level Level 3.
-
Page 8: Operation - Set Up
NOTE: IF DAMAGE IS FOUND ON ANY PART, IT IS HIGHLY RECOMMENDED THAT THEY ARE REPLACED WITH GENUINE PARTS AVAILABLE FROM COMPANION BRANDS. PLEASE CONTACT COMPANION BRANDS CUSTOMER SERVICE (DETAILS ARE AT THE BACK OF THIS BOOKLET) IF SPARE PARTS ARE REQUIRED. - Page 9 OWNERS MANUAL Winter angle setting Summer angle setting From solar To battery input lead output lead Place the solar panel 5m Extension 0.8m Extension facing to the sun Lead Lead Solar Mat output lead clamp Black clamp Collect power from the sun...
-
Page 10: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q: How does the solar mat work? A: The solar mat converts sunlight energy into DC (direct current) electric power to charge rechargeable batteries. The batteries are then used to run your lights, fridge or power an inverter. Q: What type of batteries can be charged with this solar mat kit? A: The controller is factory set for AGM batteries, however the controller can also be set to charge GEL, WET and Calcium by selecting the corresponding ‘DIP’... -
Page 11: Maintenance
DC battery clamps and or disconnect the DC battery clamps from the battery and wait 30 seconds (this will reset the controller). If after reconnecting the DC battery clamps and the problem persists, please contact Companion Brands customer service (details are at the back of this booklet). - Page 12 TECHNICAL DETAILS – CONTROLLER Electrical Rated solar panel amps 12A (max.) Normal input solar cell array voltage 15-22V DC Solar cell array voltage (no load) 25V DC (max.) Lowest operating voltage 9V DC (min) Standby current consumption at night 2mA (max.) Voltage drop –...
- Page 13 OWNERS MANUAL Protection Against reverse polarity or short circuit at the solar cell side Against reverse polarity or short circuit at the battery side No reverse current from the battery to the solar cell at night Over temperature protection during charging 65°C Electrical connections Input and output connection...
-
Page 14: Customer Service
TECHNICAL DETAILS – PANELS Cell type Monocrystalline Cell efficiency 19.5% Maximum power (Pm) 125W* Current at max. power (Imp) 6.82A Voltage at max. power (Vmp) 17.6V Output connection 30A Anderson style Cell encapsulation PET lamination Bag material Polyester 900D Dimensions (folded) 368L x 395W x 80Hmm Dimensions (unfolded) 2140L x 395Wmm... -
Page 15: Warranty Statement
Any damage caused by improper power input or improper cable connection. To Make a Claim This warranty against defects is provided by Companion Brands, If a defect in the goods appears within 12 months you are entitled to claim a warranty, please contact or send all... - Page 16 Distributed by Companion Brands Bundoora VIC 3083 www.companionbrands.com.au...
