RECOMMENDED TOOLS
Safety Glasses
Measuring Tape

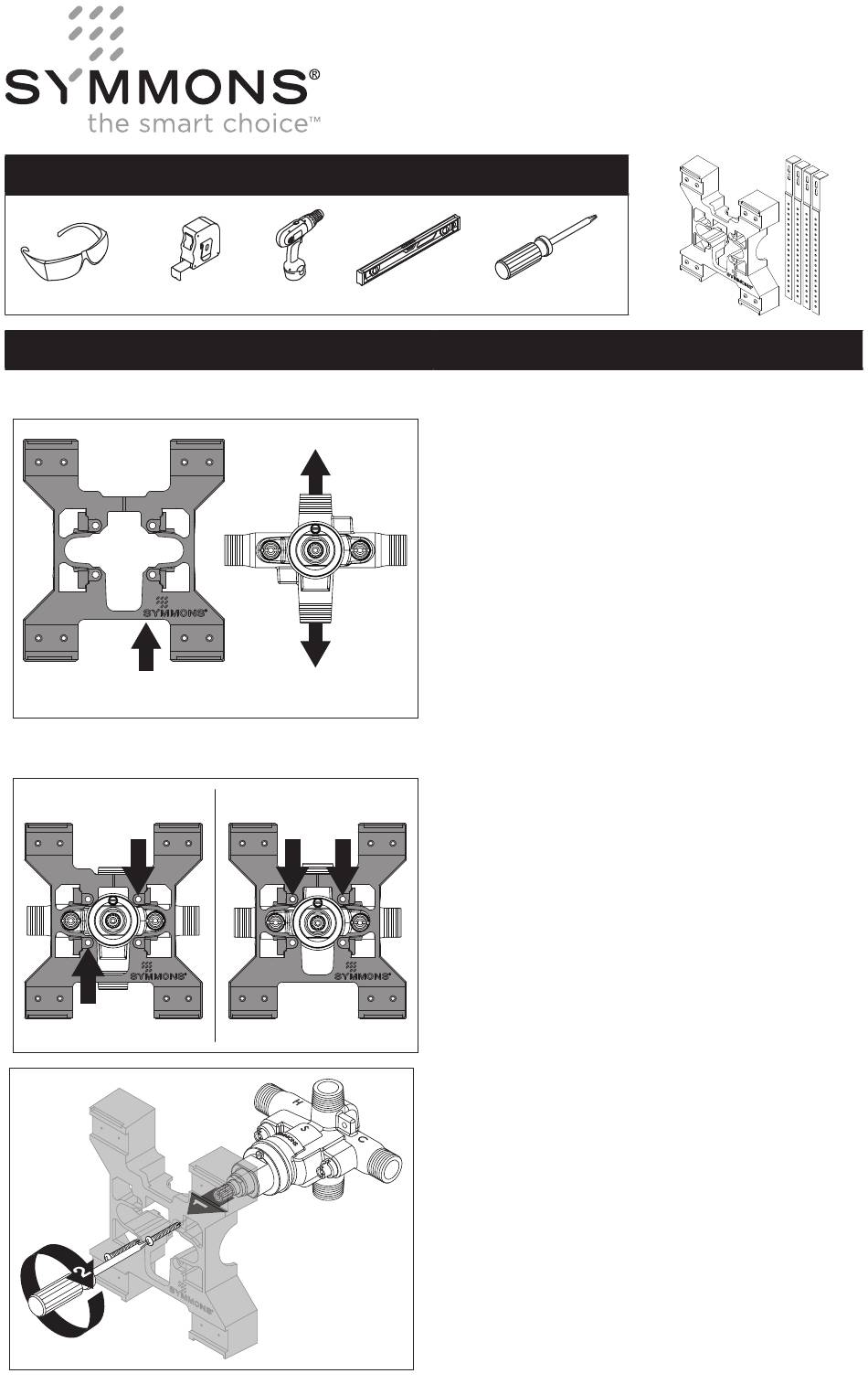

1. VALVE BODY INSTALLATION
1.1 Orient Mounting Bracket and Valve Body
SYMMONS LOGO
FIGURE 1.1
1.2 Install Valve Body to Mounting Bracket
4 PORT
FIGURE 1.2
Temptrol Rapid Install
RTS-076
Installation Instructions
Level
Drill
SHOWER ("S")
TUB ("T")
3 PORT
FIGURE 1.3
Phillips Screwdriver
Mounting bracket and valve body must
be oriented correctly to ensure successful
installation (see FIGURE 1.1).
1.
Orient valve body so shower outlet ("S") is
facing upward and tub outlet ("T") is facing
downward.
2.
Orient bracket so the Symmons logo is
visible in the bottom right corner.
1.
Align screw holes in bracket with screw
holes in valve body stringer mounts
(see FIGURE 1.2):
4 PORT (bottom left & top right holes)
3 PORT (top left & top right holes)
2.
Place valve body into mounting bracket.
Thread (2x) screws into mounting bracket
to secure valve body (see FIGURE 1.3).
Bracket
™
ZV-3299 REV A
