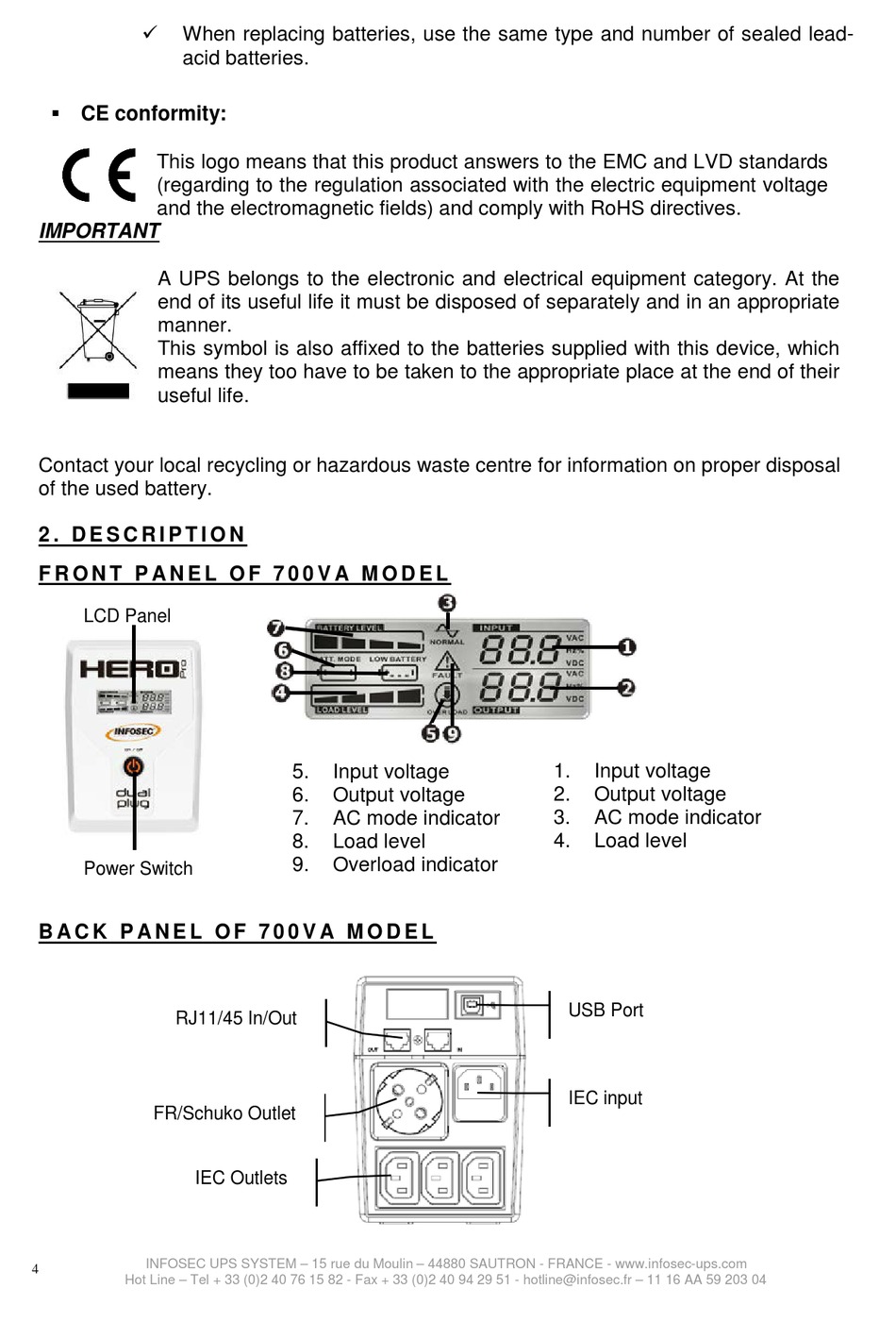

INFOSEC HERO PRO DUAL PLUG 700 User Manual page 4


When replacing batteries, use the same type and number of sealed lead-
acid batteries.
 CE conformity:
This logo means that this product answers to the EMC and LVD standards
(regarding to the regulation associated with the electric equipment voltage
and the electromagnetic fields) and comply with RoHS directives.
IMPORTANT
A UPS belongs to the electronic and electrical equipment category. At the
end of its useful life it must be disposed of separately and in an appropriate
manner.
This symbol is also affixed to the batteries supplied with this device, which
means they too have to be taken to the appropriate place at the end of their
useful life.
Contact your local recycling or hazardous waste centre for information on proper disposal
of the used battery.
2 . D E S C R I P T I O N
F R O N T P A N E L O F 7 0 0 V A M O D E L
LCD Panel
Power Switch
B A C K P A N E L O F 7 0 0 V A M O D E L
RJ11/45 In/Out
FR/Schuko Outlet
INFOSEC UPS SYSTEM – 15 rue du Moulin – 44880 SAUTRON - FRANCE - www.infosec-ups.com
4
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 11 16 AA 59 203 04
5. Input voltage
6. Output voltage
7. AC mode indicator
8. Load level
9. Overload indicator
IEC Outlets
1. Input voltage
2. Output voltage
3. AC mode indicator
4. Load level
USB Port
IEC input
