Summary of Contents for HFE vacuum systems HENKOVAC HV-40/60

  • Page 2 Art. no. 96.06.5.0805/11.06 http://www.henkovac.nl, e-mail: info@henkovac.nl. User manual Diptank "HV-40/60" "HV-55/75" Manufactured by: Het Sterrenbeeld 36, 5215 ML 's-Hertogenbosch, The Netherlands P.O.Box 2261, 5202 CG 's-Hertogenbosch, The Netherlands tel: +31(0)73-6271271, fax: +31(0)73-6271200 http://www.hfe.nl, e-mail: info@hfe.nl...
  • Page 3 2011 HFE Vacuum Systems BV All rights reserved. No part of this document may be reproduced and/or published by means of printing, photocopy, microfilm or any other method, without the prior written permission of the manufacturer. This also applies for the accompanying illustrations and/or diagrams and schematics.

  • Page 4: Preface

    PREFACE PREFACE SE OF THE MANUAL This manual is intended as a reference for users and technicians, who can install, use and maintain the machine(s) stated on the front of this document in a safe way. ICTOGRAMS AND SYMBOLS AT THE MACHINE At the machine the following pictograms and symbols are attached to the machine: Suggestions and advice to make carry out the particular tasks or actions easier.
  • Page 5 PREFACE DENTIFICATION OF THE MACHINE The identification plate contains the following data: Type Serial number Year of manufacture Number of phases- Volt Voltage Frequency Hertz Current Ampere Weight kilogram 96.06.5.0805-IM-GB/11.06...

  • Page 6: Table Of Contents

    CONTENTS CONTENTS PREFACE............................3 SAFETY INSTRUCTIONS AND DANGER WARNINGS..............6 SAFETY REGULATIONS IN THE DIPTANK ..................8 MACHINE AND THE ENVIRONMENT....................9 1.THE DIPTANK..........................10 1.1........................10 XECUTION DIPTANK 1.2.......................10 AIN COMPONENTS DIPTANK 2.INSTALLATION..........................11 2.1..........................11 NSTALLATION 2.2........................11 REPARE FOR USE 3.CONTROL ............................12 3.1.

  • Page 7: Safety Instructions And Danger Warnings

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS AND DANGER WARNINGS ENERAL The manufacturer accepts no liability whatsoever for damage or injury caused by not (strictly) following the safety directions and instructions in this manual, or carelessness during the installation, use, maintenance and repair of the machines identified on the front of this document and any accompanying options.
  • Page 8 The specifications stated in this manual may not be changed. ODIFICATIONS Modifications of (parts of) the diptank are not allowed. By modifications executed by others than HFE vacuum systems b.v.: • The guarantee expires • The liability of the manufacturer expires *1 The “Use in accordance with purpose”...

  • Page 9: Safety Regulations In The Diptank

    SAFETY INSTRUCTIONS IN THE DIPTANK SAFETY REGULATIONS IN THE DIPTANK BOILING DYR SECURITY The machine is equipped with a float switch (A) that secures the diptank against boiling dry. Because of the vaporizing of warm water and as there is always some water left in the packing, the water level in the diptank will decrease.

  • Page 10: Machine And The Environment

    SAFETY INSTRUCTIONS IN THE DIPTANK • Make sure there is adequate lighting. • Always switch off the machine at the main switch during maintenance and/or repairs and/or remove the plug from the socket. • Observe the maintenance intervals specified. Overdue maintenance can lead to high costs for repair and servicing and the right to guarantee can be lost.

  • Page 11: The Diptank

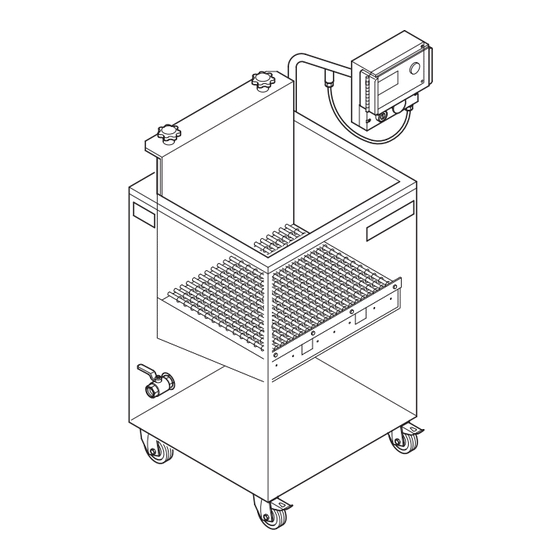

    THE DIPTANK 1. THE DIPTANK 1.1. Execution diptank In a diptank products can be final processed which are vacuum packed in shrink bags. Shrink bang are vacuum bags which shrink when being heated. A diptank is a machine with a water reservoir. The water will be heated till the adjusted temperature. After vacuum packing of products the package shows folds and wrinkles.

  • Page 12: Installation

    INSTALLATION 2. INSTALLATION 2.1. Installation 1. Unpack the diptank. 2. Level the machine on a flat firm surface. 3. Apply the brakes of the wheels 4. Have a qualified electrician connect a suitable plug to the connection cable. 5. Adjust the height of control panel: Loosen the star button (A) and position the control panel (B) at a suitable height and angle, in order to work easier with the diptank.

  • Page 13: Control

    CONTROL 3. CONTROL 3.1. Control panel A. Temperature control B. Control lamp C. Pulse button in order to have the diptank make one cycle. D. Start button for the heating 3.2. Switching on 1. Press the start button (D): the heating will be switched on.

  • Page 14: Control Working Temperature

    CONTROL Remarks • The display shows the measured temperature. This is the actual temperature, not the adjusted temperature. • If you have not pushed a button during 15 seconds, the display automatically returns, without storing the value. 3.3.2. Control working temperature 1.

  • Page 15: Maintenance

    MAINTENANCE 4. MAINTENANCE 4.1. Cleaning of the tank Daily maintenance in order to work hygienically it is necessary to: • Clean the tank • Refresh the water 1. Remove the plug from the socket. Because of this the diptank, so including the heating, will be switched off.

  • Page 16: Faults

    FAULTS 5. FAULTS Faults Cause Remedy The diptank does not The plug is not in the socket. Plug the plug into the socket. work. (Earth leaking) protection in the Check the electric cabinet. electric cabinet has tripped. A fuse(s) in the electric cabinet is Check the electric cabinet.

  • Page 17: Technical Details

    TECHNICAL DETAILS 6. TECHNICAL DETAILS Type HV-40/60 HV-55/75 Dimensions and weight Depth 675 mm 800 mm Width 860 mm 1020 mm Height 1350 mm 1350 mm Weight 106 kG 130 kG Dimensions and weight of the packed machine Depth 960 mm 1035 mm Width 950 mm...

  • Page 18: Ce-Declaration

    ECLARATION CE-VERKLARING VAN OVEREENSTEMMING CE-DECLARATION OF CONFORMITY CE-KONFORMITÄTSERKLÄRUNG DECLARATION DE CONFORMITÉ CE DICHIARAZIONE DI CONFORMITA'CE Wij, HFE vacuum systems bv. Wir, Het Sterrenbeeld 36, 's-Hertogenbosch Nous, The Netherlands Noi, verklaren geheel onder eigen verantwoordelijkheid dat de produkten, declare under our sole responsibility that the products, erklären in alleiniger Verantwortung, daß...

This manual is also suitable for:

Henkovac hv-55/7500
