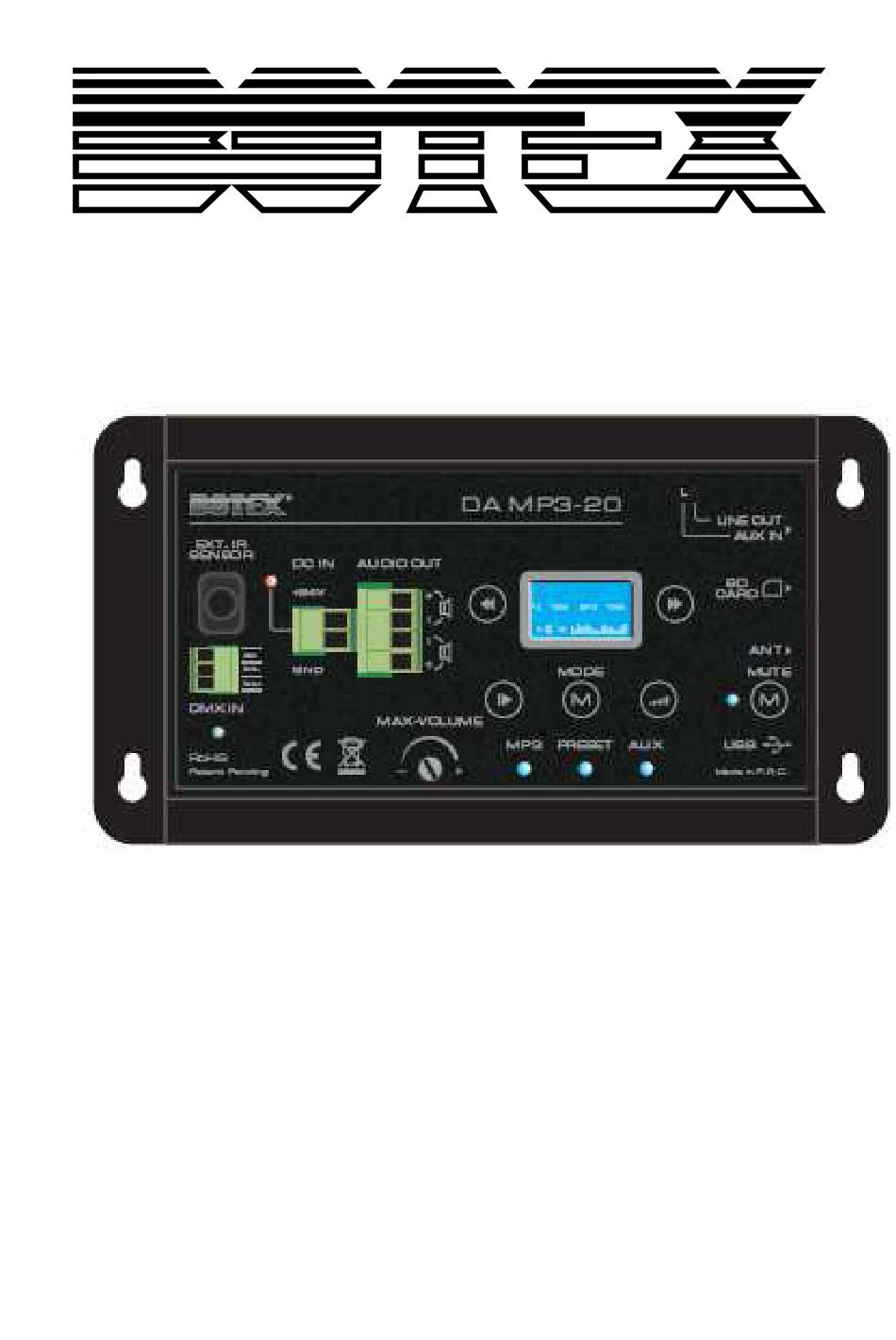

- Page 1 Manual Controller LED ADT MP3-20...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Introduction ............................4 Key functions ............................ 4 Technical data ..........................5 Dimensions ............................5 Control panel view ..........................6 Notations in the manual ........................7 Instruction ............................ -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use (not outdoors) only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Introduction
2. Introduction Congratulations on the purchase of our Controller LED ADT MP3-20. The LED ADT MP3-20, is a 20W amplifier which is controllable by DMX, it allows setting the DMX start address and the forwarding of stereo signals directly to external loudspeakers. -
Page 5: Technical Data
4. Technical data Power supply DC 24V Output power of the amplifier DC input 2 pin connection AUDIO output 3 pin connection Controller ADT-48 (separate available) Protocol DMX 512 (1990) Housing Polycarbonate Accessory IR remote (included) IR sensor (included) Dimensions 195 x 105 x 18 mm Weight 230 g... -
Page 6: Control Panel View
6. Control panel view 1. MODE button Select and confirm a mode. 2. VOLUME knob With it you can adjust the volume. 3. AUX IN Here you can connect an external audio source. 4. SD CARD slot You can use a SD card for transmitting music folders. 5. -
Page 7: Notations In The Manual
11. STANDYBY button This button is to power on/off the device. 12. INDICATOR The indicators are representing for the corresponding working state. 13. DMX IN Here you can connect the ADT-48 and receive the DMX signal with 3-pin terminal. 14. DC IN Here you can connect the power source with 4-pin terminal. -
Page 8: Main Menu
8.1. Main menu Press MUTE + MODE at the same time to change the mode. You can reach the preset mode from the MP3 mode. Touch the NEXT or PREV button to move the cursor and choose a point of the submenu. Press the MODE button to confirm. -
Page 9: Dmx Address
8.1.1. DMX address Choose the point of menu DMX Address. The LCD shows: You can set the DMX address from 1-512; the start address is 49 (to connect with the ADT-48, the DMX address has to be set on 49). 8.1.2. -
Page 10: Mp3 Player
8.1.4. MP3 Player MP3 menu The menu for the MP3 player is consisting out of main menu and the submenu. The submenu has the points of menu Playback (the device is playing music) and Standby (the device stops playing music). Hold down the MODE button to get to the main menu. - Page 11 • Forwards/Backwards while the device is playing music. Hold down the PREV button to step backwards. Hold down the NEXT button to steps forwards. Function mode From the main menu you can reach every function mode. • Volume control You have to touch VOLUME to activate the volume function. Use NEXT to increase the volume and PREV to decrease the volume.
- Page 12 If you choose Reboot the LCD shows: The device allows you to repeat folders or all music files. • Equalizer: For selection of the equalizer Natural, rock, Pop, etc. • SRS WOW mode: For selection of SRS WOW, user settings or to break the SRS WOW. •...
-
Page 13: Ir Remote
9. IR remote You can control the ADT-MP3-20 with an external IR EYE sensor. Before using you should connect the IR EYE sensor in the right way. Connecting the IR EYE sensor to the ADT-MP3-20 1. Unplug the device from the power supply system. 2. - Page 14 2. Information on detail for functions you can read out in the chart below. NOTE: 1. The effective distance between the ALED ADT MP3-20 and the remote should not be more than 6m. On a distance over 6m the remote does not work. 2.
- Page 15 b) Press FOLDER + 11 (11 mean you have to press 1 twice) and you will choose the folder MUSIC1 from the SD card. Press FOLDER + 2 and you will choose the folder MUSIC2 from the SD card and so on. Audio Repeat If the LED ADT MP3-20 is playing the folder MUSIC 1-7, the playing 1-7 will be repeated.
- Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
