DATEXEL

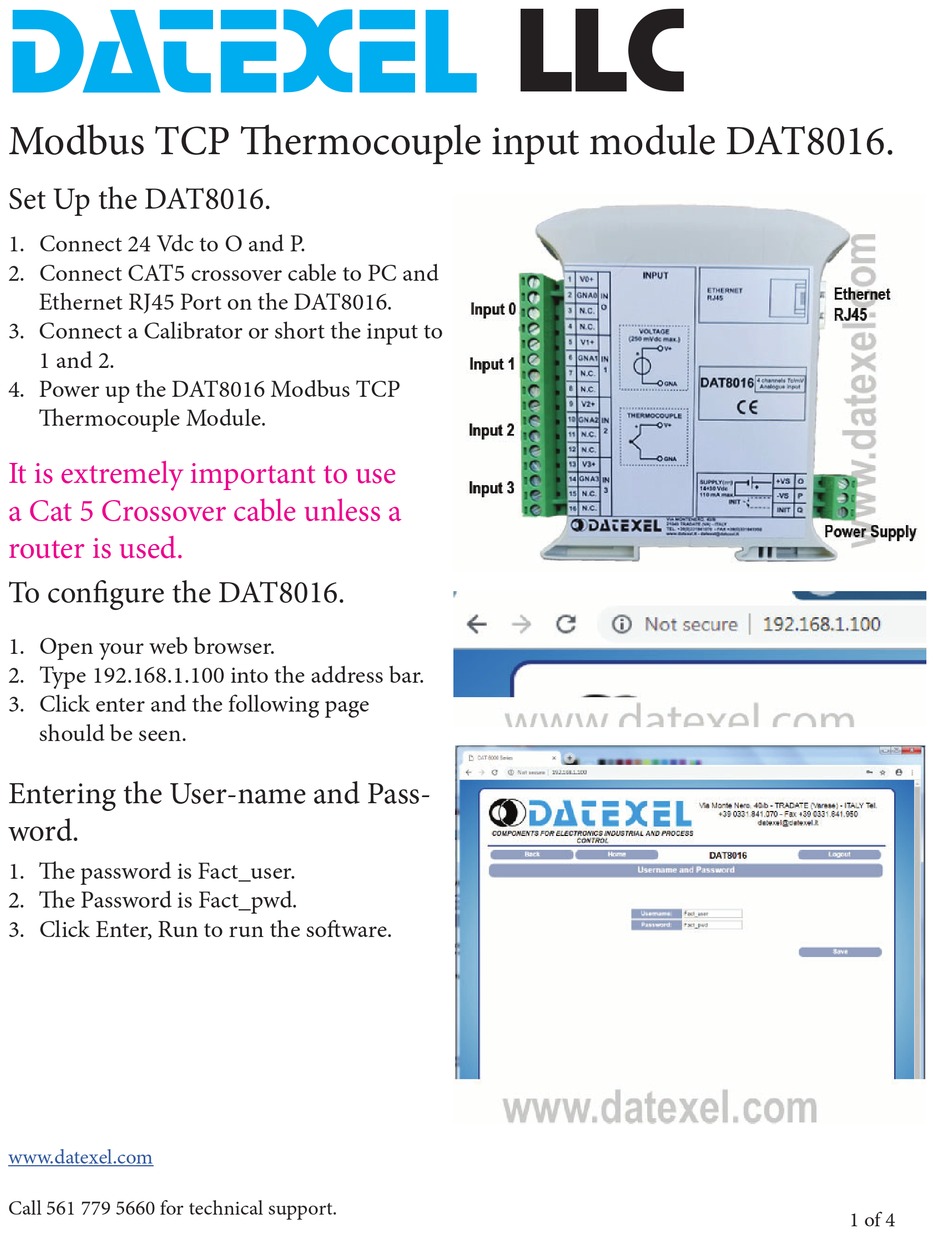

Modbus TCP Th ermocouple input module DAT8016.
Set Up the DAT8016.
1. Connect 24 Vdc to O and P.
2. Connect CAT5 crossover cable to PC and
Ethernet RJ45 Port on the DAT8016.
3. Connect a Calibrator or short the input to
1 and 2.
4. Power up the DAT8016 Modbus TCP
Th ermocouple Module.
It is extremely important to use
a Cat 5 Crossover cable unless a
router is used.
To confi gure the DAT8016.
1. Open your web browser.
2. Type 192.168.1.100 into the address bar.
3. Click enter and the following page
should be seen.
Entering the User-name and Pass-
word.
1. Th e password is Fact_user.
2. Th e Password is Fact_pwd.
3. Click Enter, Run to run the soft ware.
www.datexel.com
Call 561 779 5660 for technical support.
LLC
1 of 4
Advertisement
Table of Contents
Related Manuals for Datexel DAT8016
Summary of Contents for Datexel DAT8016
- Page 1 DATEXEL Modbus TCP Th ermocouple input module DAT8016. Set Up the DAT8016. 1. Connect 24 Vdc to O and P. 2. Connect CAT5 crossover cable to PC and Ethernet RJ45 Port on the DAT8016. 3. Connect a Calibrator or short the input to 1 and 2.
- Page 2 Th e device name should appear in the center of the page. You are also able to “Logout” of the DAT8016, go “home”, or go “back” to the page before, by clicking the icons on the page. How to read the Analog Input Signal.
- Page 3 1. Obtain new soft ware from Datexel and save to the local machine. 2. Enter the User_name and the password. 3. Click upgrade and follow the prompts. 4. Th e fi rmware version of the DAT8016 is dis- played on this page. 3 of 4 3 of 4...
- Page 4 Th e User_name and Password page. 1. Enter the new User_name click save. 2. Enter the new Password click save. 4 of 4...
