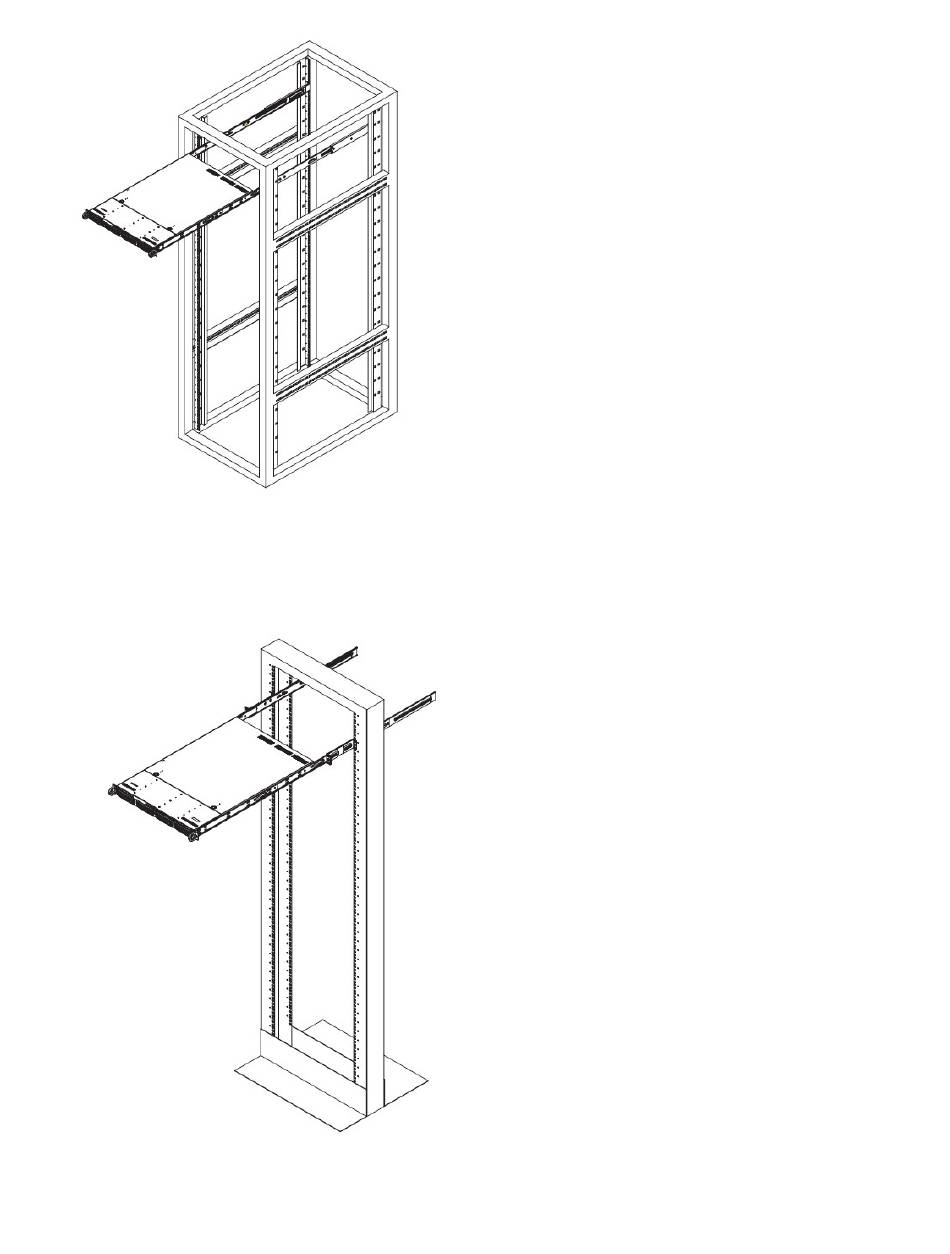

Figure 3: Installing the Server into a Rack

Installing the Server into a Telco Rack

To install your St. Bernard Server Appliance into a Telco-type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far
the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back. If a bezel is included on your server,
remove it. Then attach the two front brackets to each side of the chassis, then the two rear brackets positioned with just enough space to accommodate the width
of the Telco rack. Finish by sliding the chassis into the rack and tightening the brackets to the rack (see Figure 4).
Figure 4: Installing the Server into a Telco Rack
