MERCEDES BENZ
A-Klasse W169 5-drzwi
A-Class W169 5-door

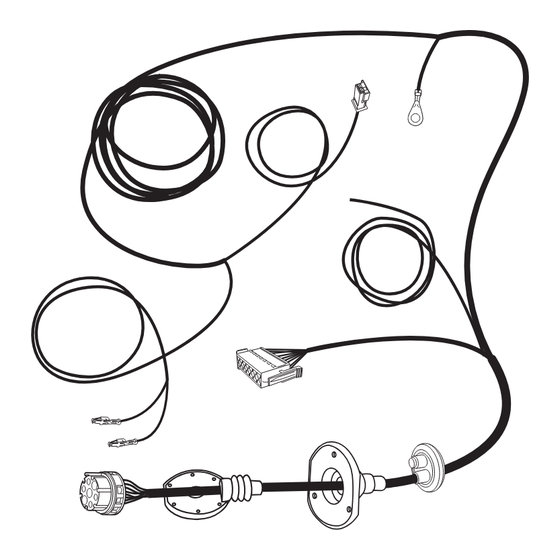

Zestaw elektryczny do haka holowniczego / 7-biegunowy / 12 Volt / ISO 1724
Instrukcja montazu
Elektrosada pre tazné zariadenie / 7-pól / 12 Volt / ISO 1724
Návod na pouzitie
Electric wiring kit for towbars / 7-pin / 12 Volt / ISO 1724
Fitting instructions
87040743 / 08.09.2011 / © ConWys AG
09/04
A-Klasse C169 3-drzwi
09/04
A-Class C169 3-door
12/04
B-Klasse W245 5-drzwi
12/04
B-Class W245 5-door
Hak-System Sp.z o.o. / ul.Hauke Bosaka 1 / PL-25 950 Kielce
tel/fax:041-362-00-35
www.haksystem.pl /e-mail:biuro@haksystem.pl
06/05
06/05
1
