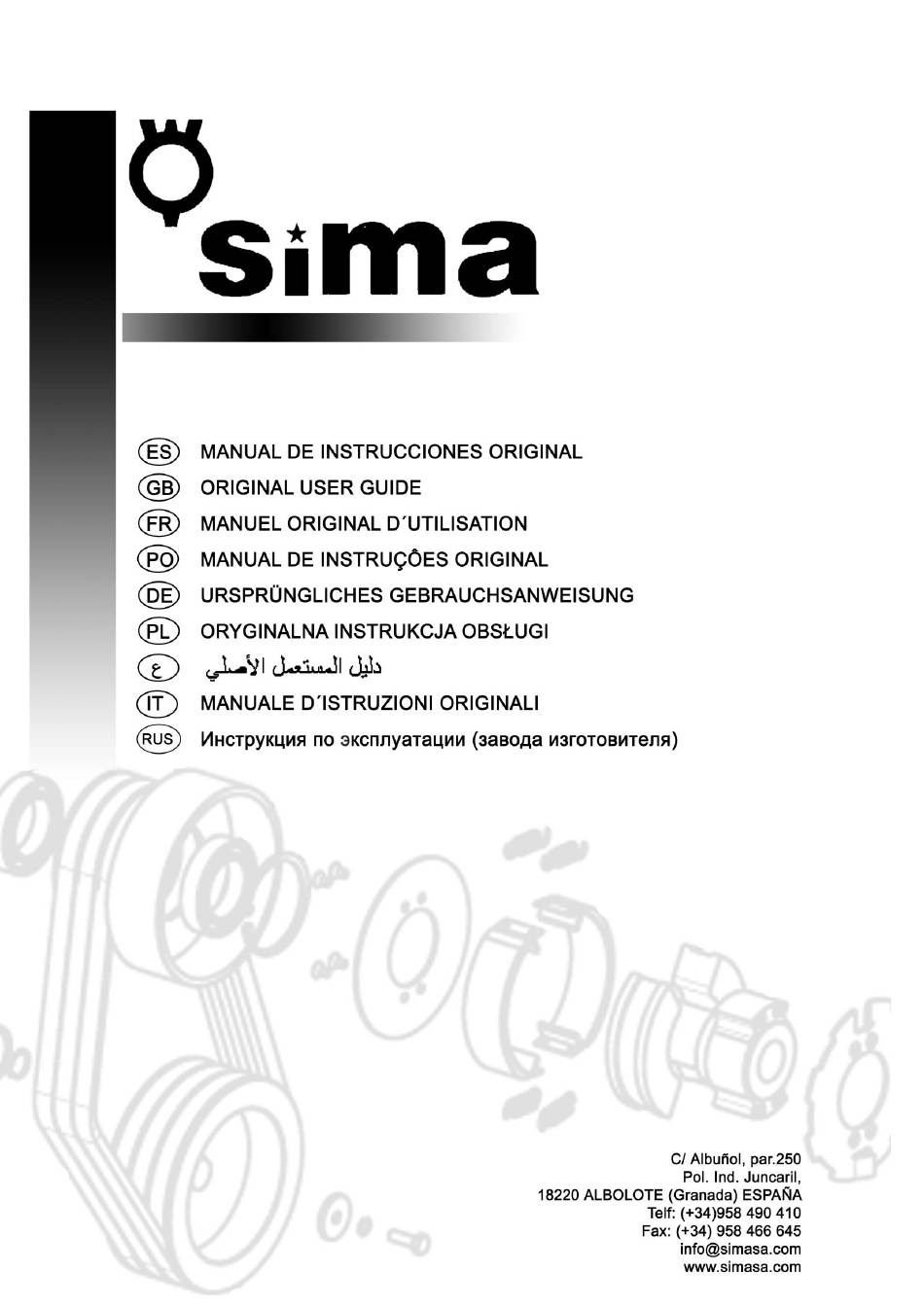

- Page 1 CX-16 CX-20 CX-25...
-
Page 3: Table Of Contents
INDEX INDEX ......................2 1. GENERAL INFORMATION ................3 2. GENERAL DESCRIPTION ................3 3. TRANSPORTATION ..................3 4. SUPPLY CONDITIONS................. 4 5. PICTOGRAMAS................... 4 6. ASSEMBLING INSTRUCCIONS ..............4 7. EXPLOXION VIEW OF THE MACHINE ............4 8. -
Page 4: General Information
WARNING: Pease read and understand perfectly the present instruction before using the machine. SIMA S.A. thanks you for your trust in our products and for purchasing the PORTABLE HYDRAULIC SHEAR. This manual provides you with the necessary instructions to start, use, maintain and in your case, repair of the present machine. -
Page 5: Supply Conditions
4. SUPPLY CONDITIONS. Portable hydraulics shearing machines CX models are supplied in sealed and strengthened packaging. The machines are introduced on the packaging which in turn serves as a carrying case so they can withstand storage at various heights if necessary. Along with the machine you will find: •... -
Page 6: Safety Recommendations
ATTENTION: You are to follow all safety recommendations mentioned in the present user manual and comply with all labour risks prevention norms in every location.. SIMA SA is not responsible for any consequences that may result in inappropriate use of the machines above 9. -
Page 7: Stopper Adjustment
10. STOPPER ADJUSTMENT Main stopper function is to keep the steel bar in the correct position as the bar diameter to be cut. The optimal brew bar is an angle of 90 ° to the cutting blades. CAUTION: If stopper is not set correctly, it could result in excessive wear of the cutting blades, also because spare material could shoot off with strength and also damage to the cutting unit. -
Page 8: Oil Level Control And Oil Change
12.1 OIL LEVEL CONTROL AND OIL CHANGE Failure to maintain proper oil level will cause a drop in hydraulic pressure and loss of power cut. We recommend changing the hydraulic oil at least once a year or immediately in the event that shows traces of oil contamination. -
Page 9: Cutting Performance
4. Press the trigger until cut the rod and the piston completely back to stay in place. CAUTION: There is always a possibility that the cut end can be ejected powerfully, especially if the piece has less than 30cm in length. 14. TECNICAL CHARACTERISTICS MODEL CX-16 CX-20 CX-25 220/230V 110V... -
Page 10: Warranty
Repairs under warranty made by SERVÍ-SIMA are subject to some strict condition to guaranty a high quality and service. SIMA S. A. guarantees all its products against any manufacturing defect; to take into account the conditions stated in the attached document “WARRANTY CONDITIONS”. The latter would cease in case of failure to comply with the established payment terms. - Page 12 SOCIEDAD INDUSTRIAL DE MAQUINARIA ANDALUZA, S.A. POL. IND. JUNCARIL, C/ALBUÑOL, PARC. 250 18220 ALBOLOTE (GRANADA) TEL..: 34 - 958-49 04 10 – Fax: 34 - 958-46 66 45 MANUFACTURER OF LIGHT MACHINERY FOR CONSTRUCTION SPAIN...
