Odyssey LTBXS X Stand User Manual

USER GUIDE
Thank you for choosing Odyssey.
IMPORTANT!
Please read this User Guide before attempting to assemble and use the stand.
Step 1
Step 2
Step 3
X Frame (A)
Top Support Bars
Bottom Support Bars
Hex Wrench (F)
(C)
(D)
Step 4

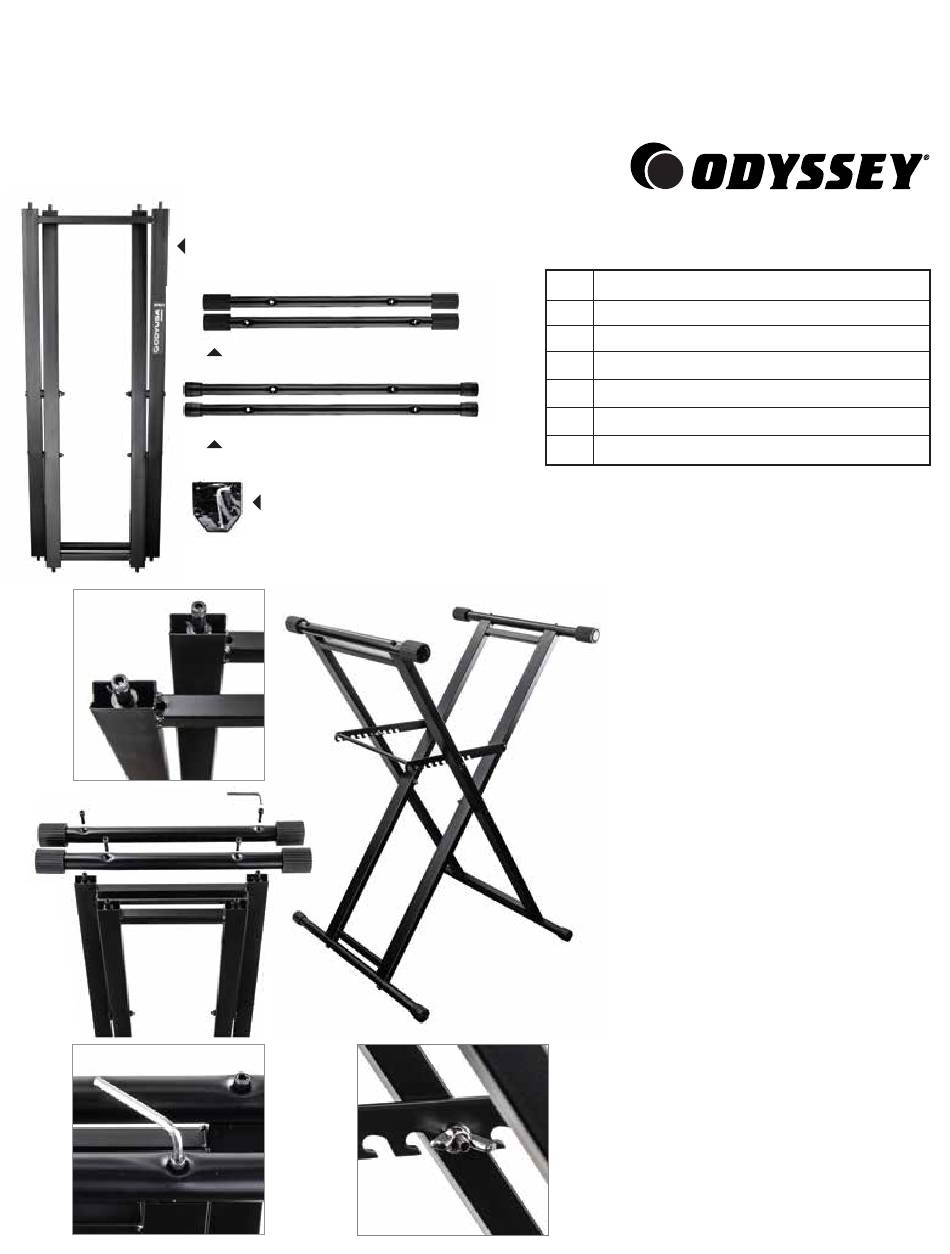

Box Contents

Qty Item
(B)
1 X Frame (A)
(C)
1 Top support bar for Inner leg frame (B)
1 Top support bar for Outer leg frame (C)
(D)
1 Bottom support bar for Inner leg frame (D)
(E)
1 Bottom support bar for Outer leg frame (E)
1 Hex wrench in pouch (F)

Assembly steps for the LTBXS

Step 1. Use the hex wrench to
unscrew bolts from the ends of the
(B)
X frame.
Step 2. Attach the top and bottom
support bars (B, C, D, E) to the X
frame ends. Then, re-attach the
bolts to the X frame through the
holes of each support bar.
Step 3. Using the hex wrench,
tighten the bolts until the bars are
secured.
Step 4. Unfold the X Stand with the
(E)
center dual brace support teeth
pointed downward. Turn the wing
nuts counter clockwise to loosen.
Set the stand to the desired
height/width by hooking the teeth to
the wing nut bolt. When correctly
set, the brace support should be
perfectly parallel to the floor. Turn
both wing nuts clockwise to secure
before placing gear on the stand.
When folding the stand follow step 4
instructions reversely.
For service contact your local authorized ODYSSEY dealer or call 626.588.2528
LTBXS
X Stand
