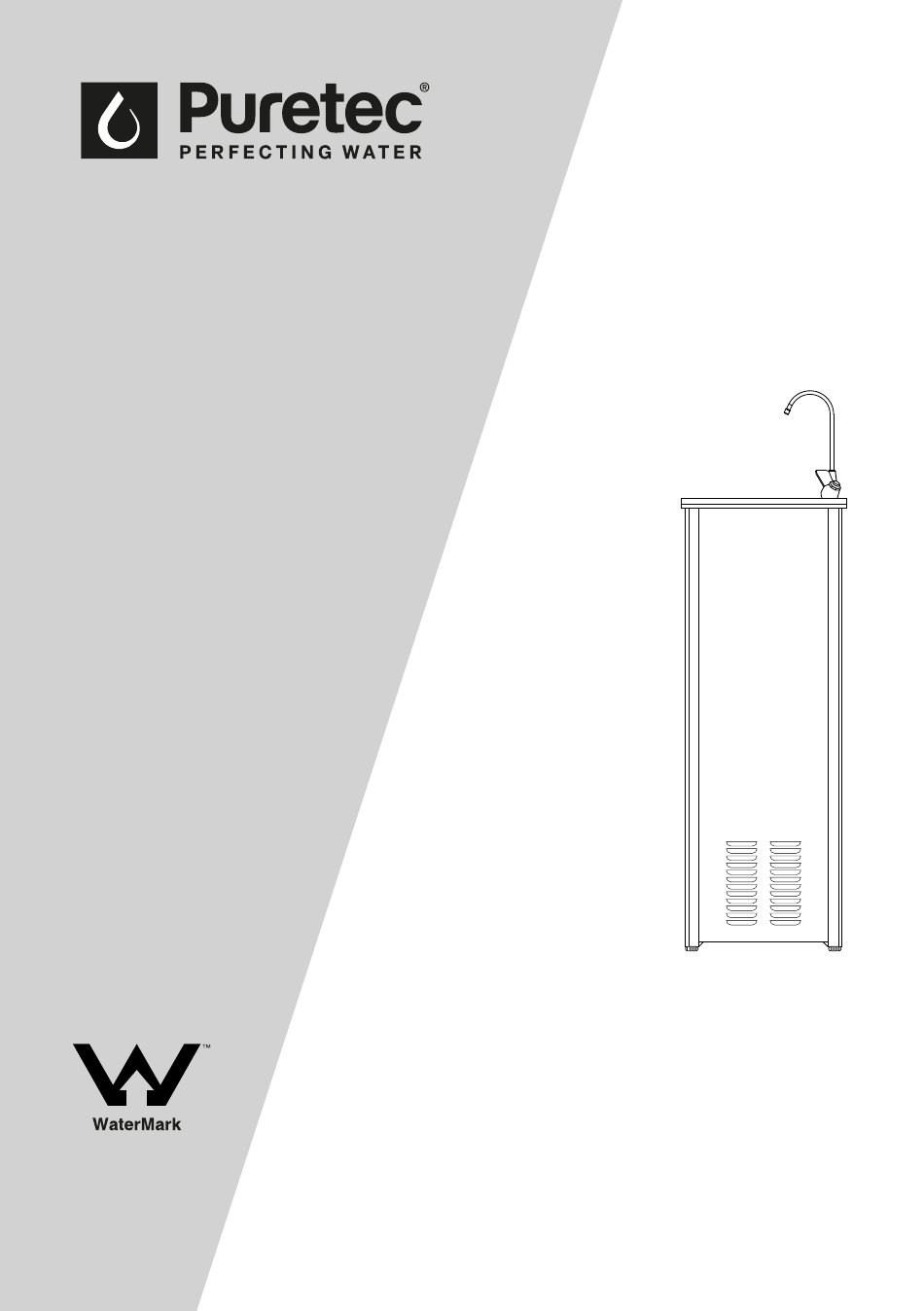

- Page 1 User Guide D Series WMTS105:2016 Certificate No. 23291 Freestanding Water Chiller System Australian Certification Services For correct operation & installation it is essential to observe these instructions. DEC2019...
-
Page 2: Table Of Contents
Use Guidelines ........................... 8 Electrical Diagram ........................8 External Filter Installation ....................9 Troubleshooting ........................10 Performance Data ........................ 10 Warranty ............................ 11 Product Information Distributor: Installer: Phone: Date Installed: Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 3: Puretec Customer Service
Puretec Customer Service Puretec Customer Service Thank you for purchasing a Puretec Freestanding Water Chiller System. Your system is a proven performer manufactured from only quality materials and components and will give years of spring-like water, if maintained properly. The Puretec filter supplied with the Freestanding Water Chiller System needs regular cartridge replacement to maintain optimum performance. -
Page 4: Parts Diagram
Terminal Pipe Main Shell Power Cord Drain Plug Power Cable Terminal Compressor Condenser * Only D10I, D10IC, D20I, D20IC, D30I & D30IC Models have Z1 Filter installed internally on bubbler. Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 5: Installation Requirements
Allow an air gap of at 100 mm each side and at the front of the machine. D SERIES | Freestanding Water Chiller System... -
Page 6: Installation
1 minute to clear air pockets and flush the filter. All Puretec freestanding chillers are supplied with a Puretec filter to ensure water of the highest quality. I models have the filter pre-installed internally. E models are supplied with the filter seprately and will need to be installed (see External Filter Installation on page 9). -
Page 7: Operation & Maitenance
2 weeks). • Keep the area surrounding the fountain clean and dry. In the event of any leakages, switch off the water and power and call Puretec. Cartridge Changeout Replacement cartridge code for D Series systems: Z1-R Turn off the water supply at an external shut off valve. -
Page 8: Use Guidelines
Caution: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before the chiller. Fig. 3 Electrical Diagram Cold Thermostat Fuse Compressor Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 9: External Filter Installation
Fig. 4 External Filter Inlallation Diagram Filter Head & Bracket Chiller Tubing MultiValve (sold separately) Tee Valve (sold separately) Z1-R Filter Cartridge Cold Water Supply D SERIES | Freestanding Water Chiller System... -
Page 10: Troubleshooting
Debris has blocked up the Drainage waste blocked. Clear the obstruction. waste system. In the event of any other breakdown, please call Puretec Performance Data Cooling Refrigerant Refrigerant Model Function Voltage... -
Page 11: Warranty
Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
