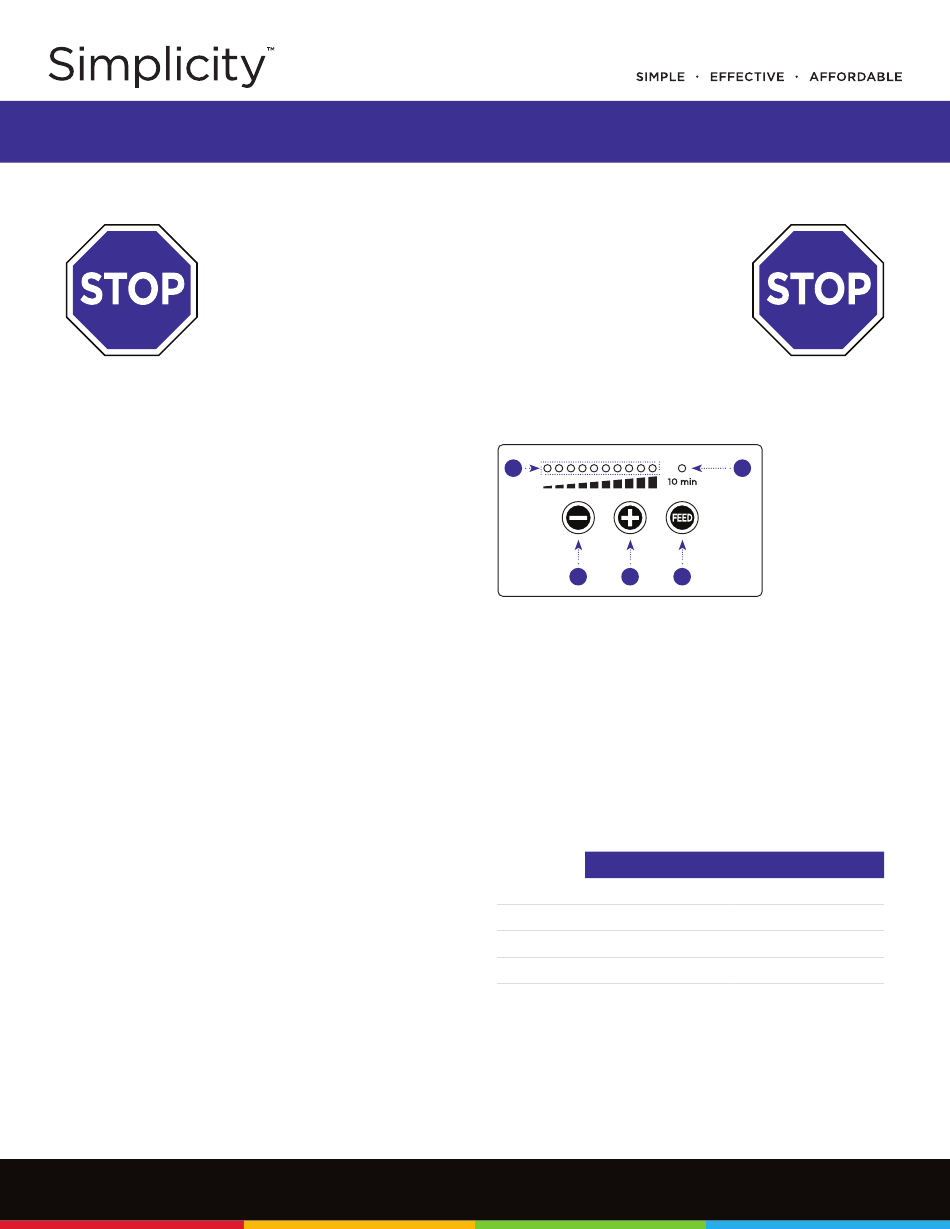

Simplicity 1000 DC Quick Start Manual

Parts List
• Pump Body
• Controller
• Electronic Power Supply
Installation
SUBMERSIBLE USE ONLY
1.
Plumb pump with barb fittings (included) or
threaded fittings (not included) and desired tubing.
Please use included O-rings with the barb fittings
to minimize leakage and only hand tighten the hose
bard retaining collar. Do NOT tighten with tools as
breakage may occur.
2. Attach intake screen to pump body.
3. Place pump in water being careful not to
submerge the connector on the end of the cord.
If the connector gets wet, it MUST be dried out
completely prior to use.
4. Connect pump electrical cable to controller. Please
make sure the connection is tight and firm, and
use the water resistant retaining collar to reduce
exposure to moisture.
5. Connect power supply to controller.
6. Mount the controller and the power supply in an
area free from heat, water and moisture, ideally in
an area with good airflow to allow the components
to remain cool.
8. Double-check all connections.
9. Connect power cord to power supply.
10. Plug power cord into grounded outlet.
DC Pumps
QUICK START GUIDE
PROBLEM? PLEASE DO NOT RETURN THE
PRODUCT TO THE PLACE OF PURCHASE.
Please visit our website at
for additional information and videos. Need more help? Please
contact us directly at customercare@simplicityaquatics.com or
424-757-6150 and we'll be happy to help you out.
• Grounded Power Cord
• Intake Screen
• Plumbing Part Kit
SIMPLICITYAQUATICS.COM
www.simplicityaquatics.com/support
Controller Operation
E
A
A. [–] button decreases flow and reduces energy
consumption
B. [+] button increases flow and increases energy
consumption
C. FEED button stops the pump for 10 minutes for
feeding or maintenance. Pump will automatically
restart after 10 minutes or can be restarted
manually by pressing the feed button again.
D. FEED light illuminates when FEED mode is enabled.
E. 10 LED lights indicate the current flow settings.
Max. Flow Rate
1000 DC
1600 DC
2100 DC
3200 DC
Lock / Unlock
• Lock: Press the [+] or [–] button for 3 to 4 seconds
until the controller LED lights flash twice.
• Unlock: Press the [+] or [–] button for 3 to 4 seconds
until the controller LED lights flash twice again.
D
B C
Min. Flow Rate
1,000 gph 790 gph
1,600 gph 1,150 gph
2,100 gph 1,350 gph
3,200 gph 1,400 gph
