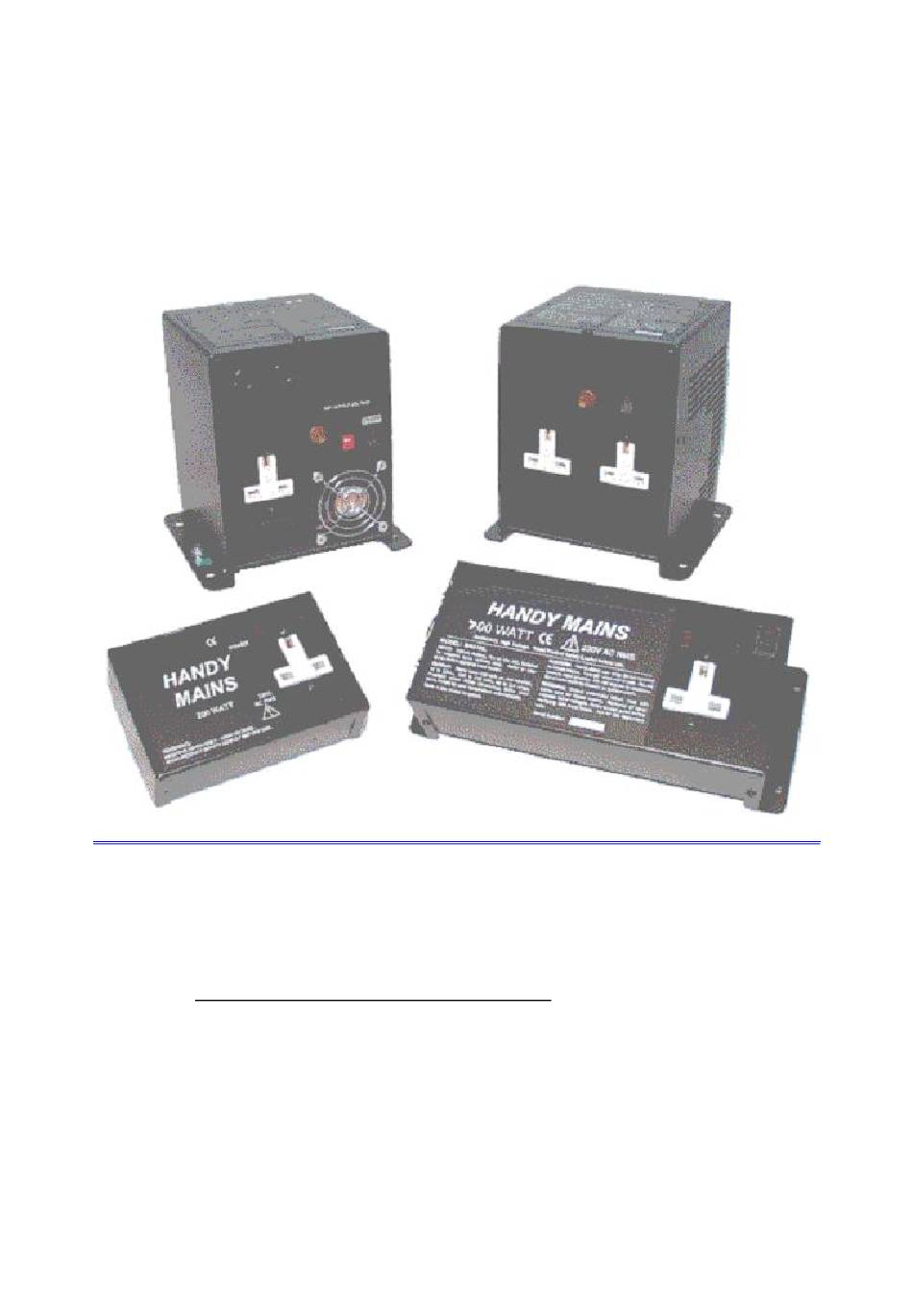

The Popular "Handy Mains" Inverter Series
The "Handy Mains" series of inverters produce AC mains power from a broad range of battery inputs and
some models have now been in production for over 10 years. We have a wealth of experience with inverters
and our designs reflect this, during their life time they have constantly evolved to meet the challenge of
powering most types of equipment, modern and old. With sales to five major distributors the 'Handy
Mains' has become one of the foremost inverters in the field.
With power ranges up to 2700W there is sure to be a "Handy Mains" to suit your requirements.
Go to http://www.custompsudesign.com for more information.
