Summary of Contents for Monosem Trimble TMX-2050

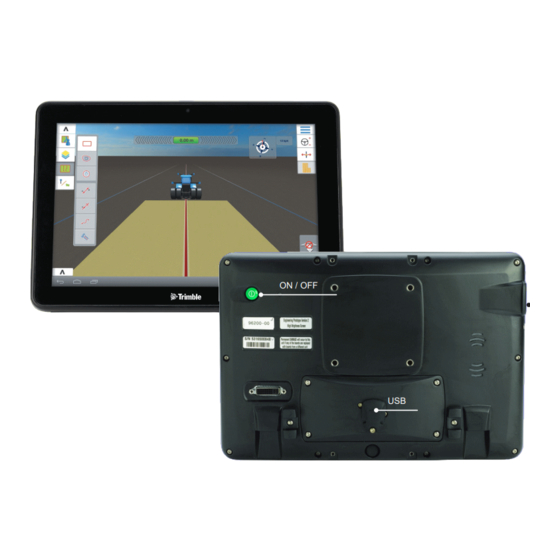

- Page 1 TMX-2050 TRIMBLE TERMINAL Presentation of the TMX-2050 terminal. ON / OFF Access to applications Screenshots Applications recently used Return to home page Return to previous page Page 1 sur 9 FAST SETTING GUIDE 2018...
- Page 2 TMX-2050 TRIMBLE TERMINAL Change the language of the terminal. 1. Return to home page 2. Parameters 3. Language and input 4. Language 5. Select the language or country from the drop-down menu. Check the software version of the TMX – 2050 terminal. Page 2 sur 9 FAST SETTING GUIDE 2018...
- Page 3 TMX-2050 TRIMBLE TERMINAL Take screenshots then retrieve them on a USB stick. Press the photo icon at the bottom of the It is not necessary to screen on the right- have the USB stick hand side. connected to take a screenshot.
- Page 4 TMX-2050 TRIMBLE TERMINAL Setting the tool. Adding a tool. Page 4 sur 9 FAST SETTING GUIDE 2018...
- Page 5 TMX-2050 TRIMBLE TERMINAL Modifying the tool parameters. Page 5 sur 9 FAST SETTING GUIDE 2018...
- Page 6 TMX-2050 TRIMBLE TERMINAL Modifying the tool parameters. Settings identical for CHANNEL 1, 2 and 3. Page 6 sur 9 FAST SETTING GUIDE 2018...
- Page 7 TMX-2050 TRIMBLE TERMINAL Create the field. Page 7 sur 9 FAST SETTING GUIDE 2018...
- Page 8 TMX-2050 TRIMBLE TERMINAL Allocate a task to the field. Page 8 sur 9 FAST SETTING GUIDE 2018...
- Page 9 TMX-2050 TRIMBLE TERMINAL Launching navigation. Page 9 sur 9 FAST SETTING GUIDE 2018...
