05/00 AWA 1230-1841

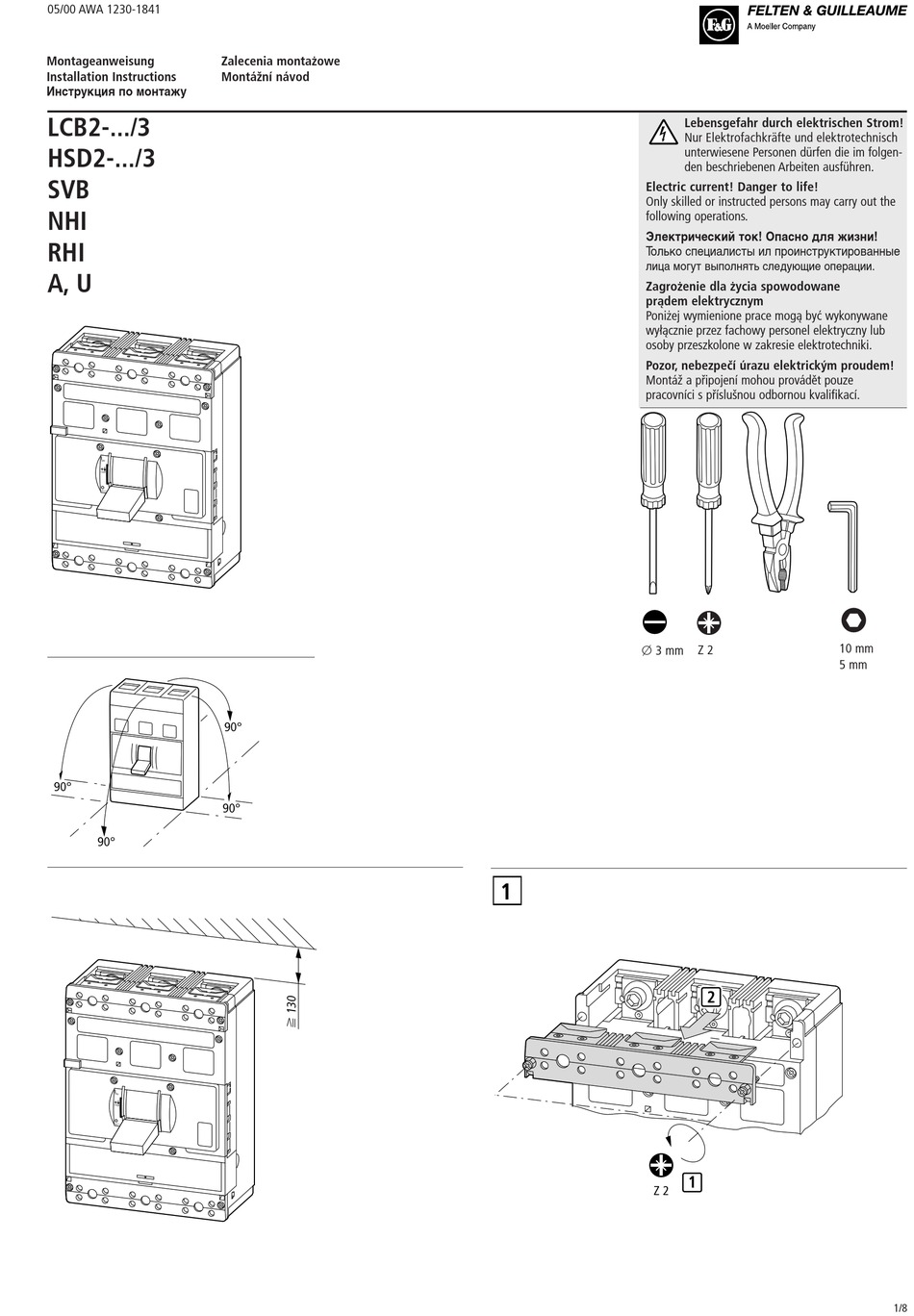

Montageanweisung
Installation Instructions
Инcтpyкция пo мoнтaжy
LCB2-.../3
HSD2-.../3
SVB
NHI
RHI
A, U
90°
90°
Zalecenia montażowe
Montážní návod
90°
90°
Electric current! Danger to life!
Only skilled or instructed persons may carry out the
following operations.
Элeктpичecкий тoк! Oпacнo для жизни!
Toлькo cпeциaлиcты ил пpoинcтpyктиpoвaнныe
лицa мoгyт выпoлнять cлeдyющиe oпepaции.
Zagrożenie dla życia spowodowane
prądem elektrycznym
Poniżej wymienione prace mogą być wykonywane
wyłącznie przez fachowy personel elektryczny lub
osoby przeszkolone w zakresie elektrotechniki.
Pozor, nebezpečí úrazu elektrickým proudem!
Montáž a připojení mohou provádět pouze
pracovníci s příslušnou odbornou kvalifikací.
o 3 mm
1
Z 2
Lebensgefahr durch elektrischen Strom!
Nur Elektrofachkräfte und elektrotechnisch
unterwiesene Personen dürfen die im folgen-
den beschriebenen Arbeiten ausführen.
10 mm
Z 2
5 mm
2
1
1/8
