Rugged Ridge 13104 Series Installation Instructions

IMPORTANT NOTICE:

Carefully read instructions before attempting to install this product. Rugged Ridge in no way responsible for any damage to the vehicle or
personal injury that may occur during the installation or use of this product.

INCLUDED COMPONENTS

1 – Security Floor Console
1 – Mounting Bracket
2 – Keys
1 – Neoprene Gasket
2 – 5/16" x 5 ½" Hex Head Bolts
2 – Seat Belt Straps

INSTALLATION INSTRUCTION

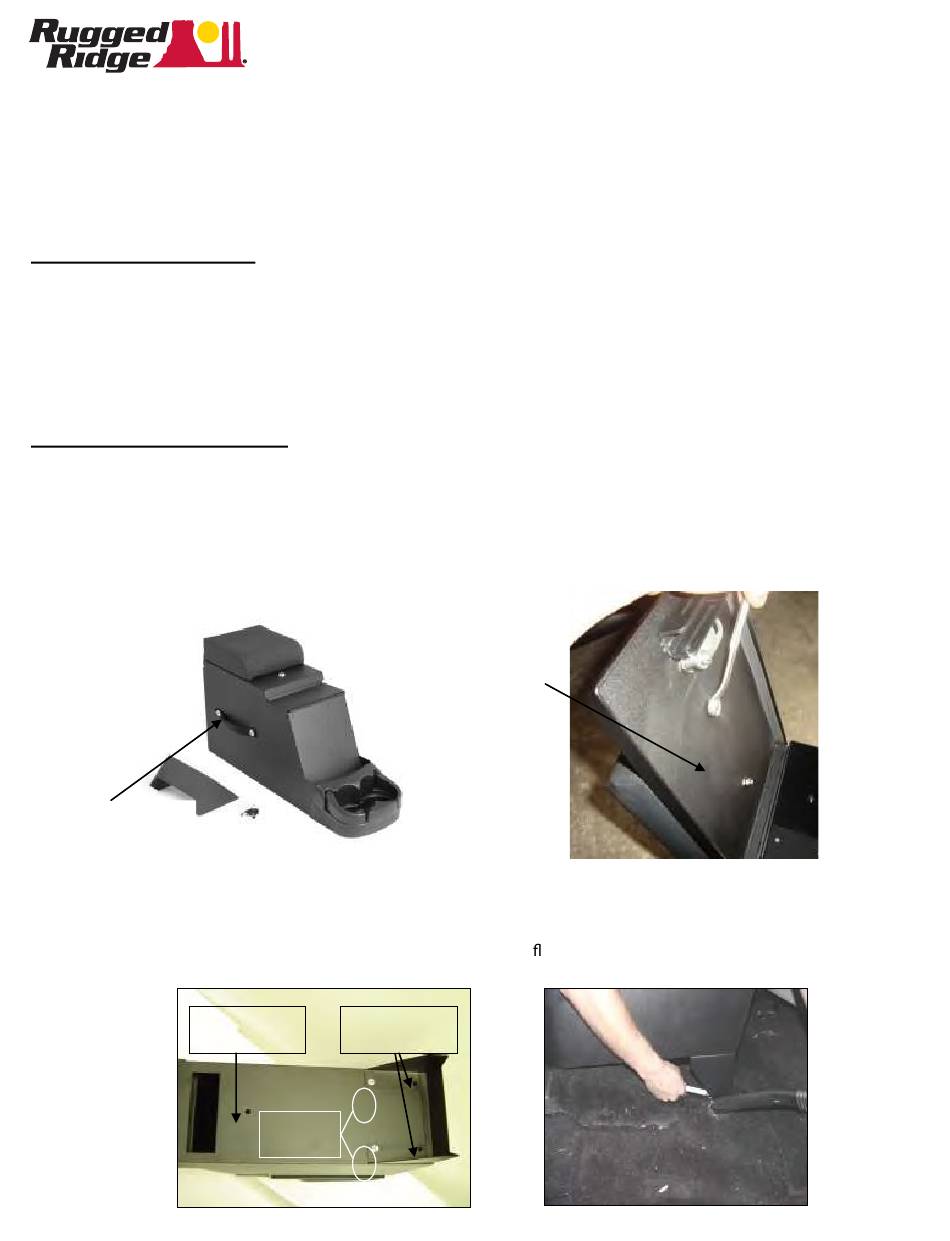

1. Apply Neoprene Gasket to the bottom of the main compartment.
2. Locate (4)-Cap Nuts, (4)-10-32 x ½" Hex Washer Phillips Screws, (4)- 10-32 Flat Washers, and (2)-Seat Belt
Straps. Attach Seat Belt Straps to the side of the Security Console by using the hardware listed in this step
(Figure 1).
3. If not already install, locate console padded arm rest. Attach to top of security console by using (2)-Cap Nuts.
If already installed skip to step #4. (Figure 2).
Seat Belt Straps
Figure 1
Locate (2)- 10-32 x ½" Hex Washer Phillips Screws, (2)- 10-32 Flat Washers, and (2)-10-32 Lock Nuts. Attach
Mounting Bracket to the two small center holes on the bottom of the console by using the hardware listed in this
step (Figure 3).
4. Position Security Floor Console between the seats and mark the oor directly under the three mounting holes
on the bottom of the Console (Figure 3). NOTE: Check to make sure that the shift lever will not interfere with
console.
5/16" x 1 ¾"
Figure 3
13104.01

Installation Instructions

Metal Stereo Security Floor Console with
5/16" x 2 ½"
Hex Bolt Hex Bolts
10-32 x ¾"
Screws
76-95 CJ & Wrangler
P/N: 13104.XX
DRILLING REQUIRED.
1 – 5/16" x 1 ¾" Hex Head Bolt
3 – 5/16" Lock Nuts
6 – 5/16" Flat Washers
6 – 10-32 x ½" Hex Washer Phillips Screws
4 – 10-32 Cap Nuts
3 – 10-32 Lock Nuts
7 – 10-32 Flat Washers
Cap Nuts
Page 1 of 3
Figure 2
Figure 4
4/3/2013
