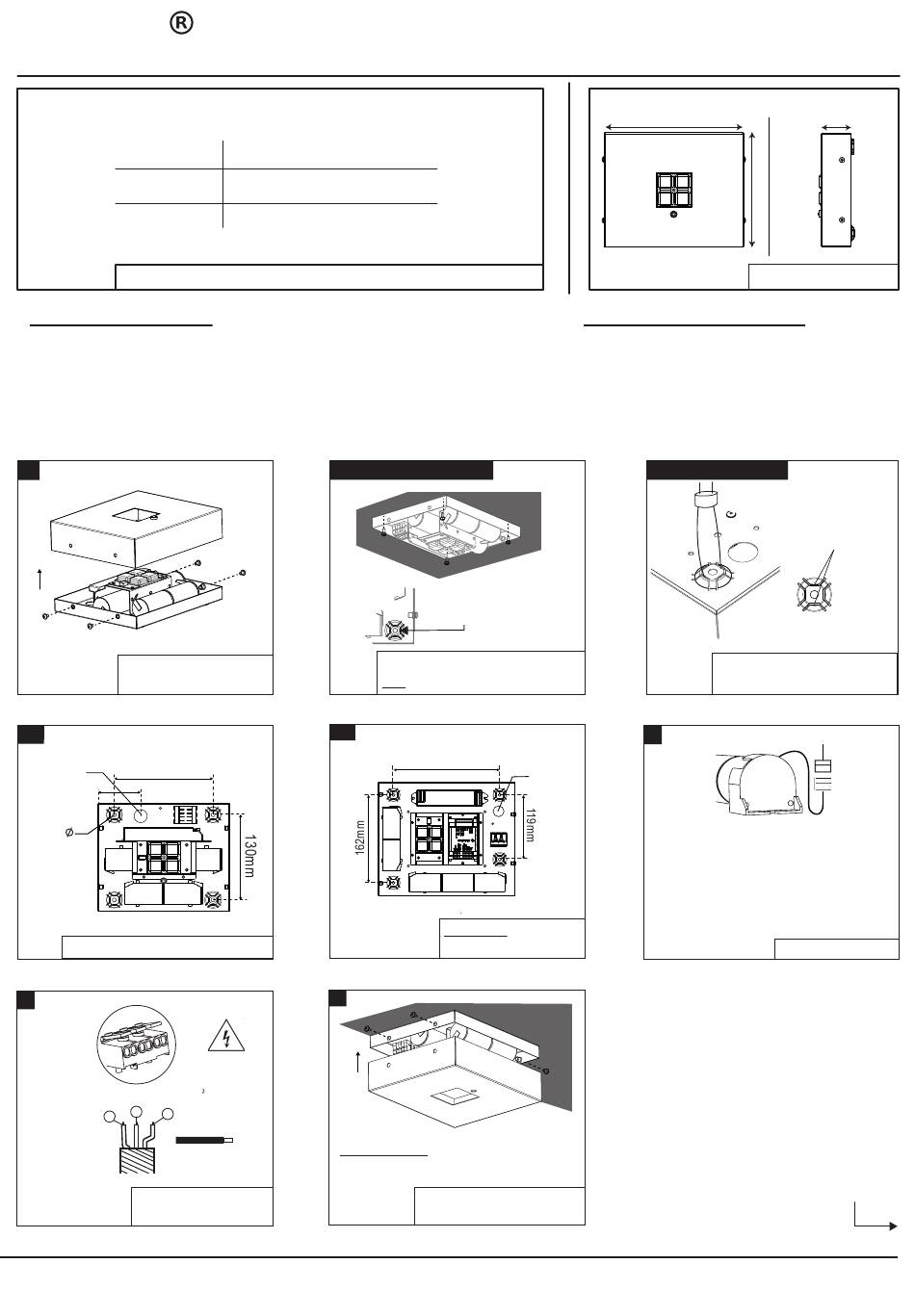

Luxonic LED-EM HIGH BAY Installation Instructions

LED-EM

Installation Instructions

Catalogue Prefix.
LED-EM
LED-EM (Wireless)
For wattages & additional information, please see website.
Health & Safety
Please ensure all onsite health & safety regulations are observed.
All electrical work should be carried out by qualified personnel only.
The electricity supply should be disconnected before any electrical
work is undertaken.
These products should not be exposed to liquids or the elements.
1.
Unscrew M4 (x4) &
remove lid.
2A.
Mains Feed
150mm
65mm
6mm
Luminaire fixing dimensions.
4.
Max Core Dia:
1.5mm
E
N
L
220~240V
50/60 Hz
Stripped Back
Lead: 9mm
Connect luminaire
to mains.
HIGH BAY
L W H
170 170 50
250 210 42.5
Surface Mount option.
2B.
5.
Illustration purposes
For surface mounted option only.
Kg.
1.8
2.2
Fixing scews through
dimple as shown.
Fix to ceiling (fixing screws
not supplied).
194.5mm
Mains Feed
Wireless luminaire
fixing dimensions.
Replace lid and fasten
with screws.
W
L
Suspension Option
Suspension wire / gripple to be supplied by
the user.
Suspended option.
Thread suspension wire
through dimples (x4).
3.
Installation procedure of emergency luminaire:
•The battery connections must be left disconnected
during installation unless uninterrupted mains supply
to the luminaire is guaranteed.
•Cycling of the permanent mains supply other than
necessary to perform Emergency duration and function
test is prohibited as it may cause damage to the battery
•Correct commissioning procedure must be followed,
Please refer to the Luxonic Website for more details¹.
For Wiring Config and
Regulations, please turn over.
H
NOT TO SCALE
Thread through
points shown.
Connect battery.
