FC LIGHTING FCSL2000 Series Installation Instructions

FCSL2000 Series - INSTALLATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
STUD WALL INSTALLATION
GENERAL:
1. Before starting the installation, make sure all electricity has
been turned off and electrical breaker has been locked out
and tagged out.
2. To ensure the success of the installation, be sure to read
these instructions and review the diagrams thoroughly before
beginning.
3. All electrical connections must be in accordance with local
codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in
this manual are not meant to cover all possible conditions and
situations that may occur.
IMPORTANT: Temporarily remove Splatter Shield and contents
from Back Box housing and set aside.
1. Install Drywall Mounting Brackets onto Back Box using 6-32
screws provided. Orient Back Box as shown. Fig 1
2. Adjust brackets to align front face of backbox flush to face of
finished wall surface. Then fasten brackets to studs. Fig 2
3. Orient Back Box housing as shown to attach conduit.
Connect conduit to backbox using 3/4" K.O.s. Fig 3
4. Optional Hanger Bar Brackets can be used to hang the Back
Box between studs or braces to complete installation. Fig 4
6. Reinstall Splatter Shield and all contents using the (2) 8-32
screws provided. Fig 5
IMPORTANT: All wiring connections must be made in
accordance with local electrical codes, ordinances, and the
National Electric Code.
CONFIDENTIAL
THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF FC LIGHTING, INC. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED.

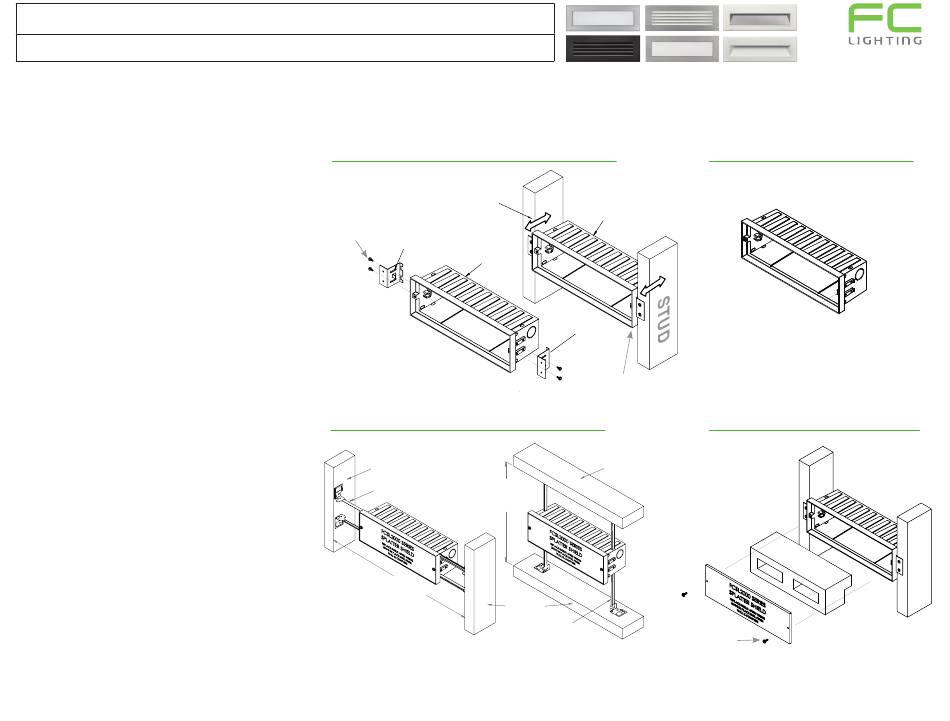

DETAILED ILLUSTRATION
