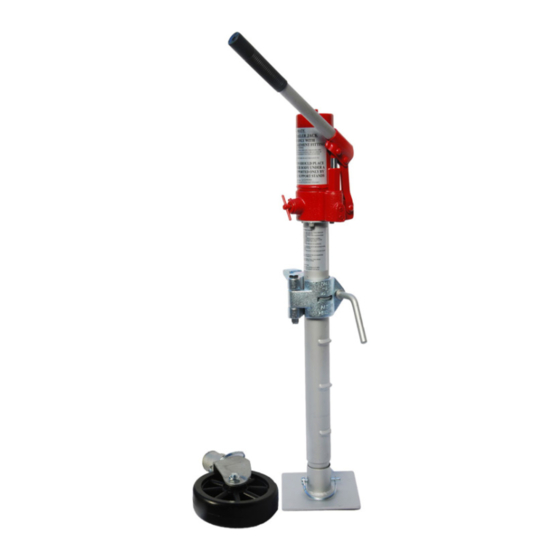

Owners Manual
WARNING
THIS PRODUCT IS ONLY TO BE
USED WITH THE TRAIL-A-MATE
ENGAGEMENT FITTING
PLEASE FAMILIARISE YOURSELF WITH THIS MANUAL BEFORE USING TRAIL-A-MATE
TO PREVENT DAMAGE TO PROPERTY OR PERSONAL INJURY.
_____________________________________________________________________________________________________________________________________________
THIS PRODUCT IS MANUFACTURED TO AS/ NZ STANDARDS 2693:2007
WORKING LOAD LIMIT 1000KG
More information https://www.caravansplus.com.au
Advertisement
Summary of Contents for Seatra TRAIL-A-MATE
- Page 1 WARNING THIS PRODUCT IS ONLY TO BE USED WITH THE TRAIL-A-MATE ENGAGEMENT FITTING PLEASE FAMILIARISE YOURSELF WITH THIS MANUAL BEFORE USING TRAIL-A-MATE TO PREVENT DAMAGE TO PROPERTY OR PERSONAL INJURY. _____________________________________________________________________________________________________________________________________________ THIS PRODUCT IS MANUFACTURED TO AS/ NZ STANDARDS 2693:2007 WORKING LOAD LIMIT 1000KG More information https://www.caravansplus.com.au...
- Page 2 IMPORTANT Sometimes during shipping and handling, air may get trapped in the hydraulic system, causing poor or no lifting performance. Purge any air from the system by simply opening the release valve (turn counter-clockwise) and unscrew the air vent valve (turn counter-clockwise) then operate pump handle several times.
- Page 3 Trail-A-Mate engagement fitting on caravan. 5. Make sure release valve is tightened clock-wise and pump handle until slot in saddle is locked into the Trail-A-Mate engagement fitting. 6. Continue to raise jack to desired height. 7. When finished, remove support stands and then slowly turn release valve counter-clockwise to lower vehicle.
-
Page 4: Important Warning
PLEASE READ INSTRUCTIONS THOROUGHLY Before using your jack, you should ensure the following THE JACK SHOULD BE USED ONLY WITH THE TRAIL-A-MATE ENGAGEMENT FITTING 1. That the jack should be used on level firm ground wherever possible. 2. That it is recommended that the wheels of the caravan / trailer be chocked, and that no person should remain in a caravan / trailer that is being jacked. -
Page 5: Fitting Instructions
FITTING INSTRUCTIONS for Trail-A-Mate engagement fitting Weld Trail-A-Mate Jack engagement fitting to the bottom of the cross-member at the REAR of the axle keeping flush to outside wall of caravan IMPORTANT: PLEASE NOTE Some older model caravans need to have cross-member at rear of axle strengthened to accommodate engagement fitting More information https://www.caravansplus.com.au... - Page 6 The jack should be used on firm level ground where ever possible. 2. PROPER POSITIONING The jack should be positioned under the Trail-A-Mate engagement fitting. This MUST be located on the cross-member at the REAR of the axle. 3. WORKING UNDER THE VEHICLE The jack should be used for lifting and lowering only.
- Page 7 MAINTENANCE PRODECURES For better performance and longer life the oil level should be maintained at 20mm below the top of the oil reservoir. ADDING OIL With the jack fully lowered and the release valve closed, remove the air vent valve (Part # 23) being very careful not to permit dirt or foreign matter to get into the hydraulic system.
- Page 8 TRAIL-A-MATE PARTS LIST OIL RESERVOIR O-RING PUMP HOUSING SCREW BALL BEARING SEAL SEAL COVER RELEASE VALVE OUTER SHAFT COVER INNER SHAFT COVER PISTON HOUSING PISTON PISTON SEALS COLLAR SEAL O-RING O-RING CHECK VALVE 17.17A.17B SNAP PINS 18.18A.18B LINKAGE PINS 19.19A...
- Page 9 Seatra International Pty Ltd 233 Shepherds Hill Road, Eden Hills, S.A. 5050 Phone: (08) 8278 5107 Fax: (08) 8278 9269 Website: www.trail-a-mate.com.au Email: seatra@iweb.net.au This product is tested by: Melbourne Testing Services NATA Accreditation No. 1047 More information https://www.caravansplus.com.au...
