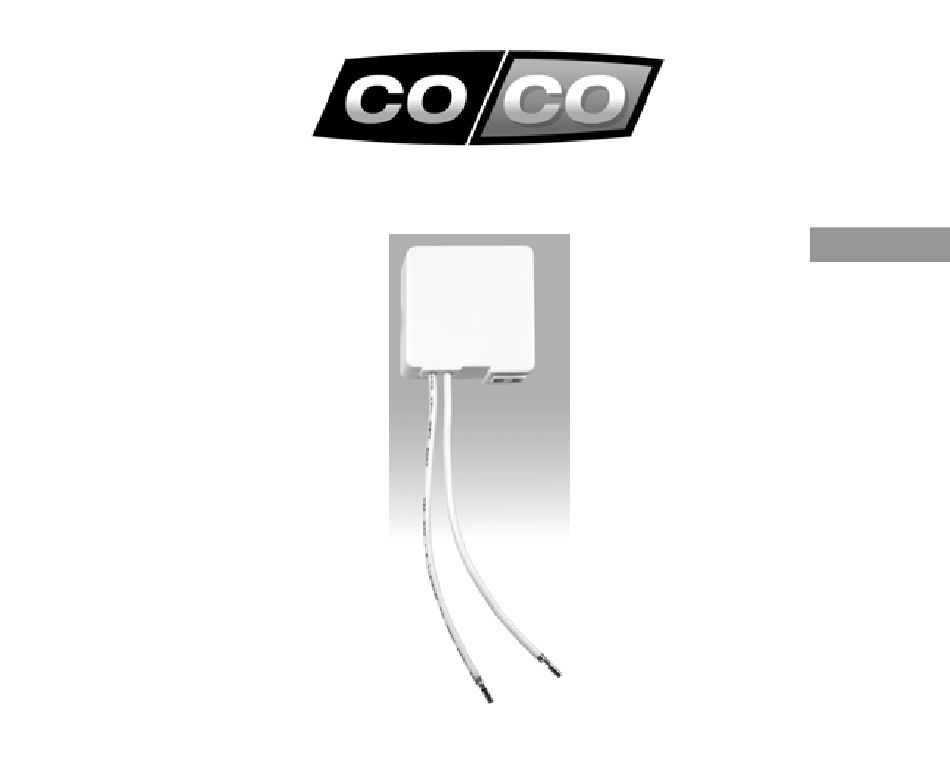

- Page 1 USER’S MANUAL version 1.1 English AWMR-230 MINI BUILT-IN SWITCH...
- Page 2 AWMR-230 MINI BUILT-IN SWITCH A: Search mode button B: Wall switch connection C: Light connection Picture of the AYCT-102 (not D: Indicator (power and connection status) included)
- Page 3 AWMR-230 MINI BUILT-IN SWITCH [1] Switch off the mains power. [2] Remove the existing switch from the wall.
- Page 4 AWMR-230 MINI BUILT-IN SWITCH 230 VAC [3] Disconnect the 2 power wires (brown and [4] Connect the 2 switch wires from the built-in black) from the wall switch. switch to the terminals on the wall switch from which you disconnected the wires. It does not matter which wire is connected to which terminal.
- Page 5 AWMR-230 MINI BUILT-IN SWITCH 230 VAC [5] Connect the wires you disconnected previously [6] Switch on the mains power. to the built-in switch: [1] L: ‘Hot wire’ (brown, from the central junction box), [2] : ‘Switch wire’ The indicator on the built-in switch remains lit (black, from the light).
- Page 6 AWMR-230 MINI BUILT-IN SWITCH [7] Press the search mode button with a pointed [8] Send an ‘on’ signal with your transmitter. Press object. The indicator begins to flash. the desired ‘on’ button of a remote control or wall switch. The indicator on the built-in switch stops flashing as soon as the connection is made.
- Page 7 AWMR-230 MINI BUILT-IN SWITCH [9] To confirm, the built-in switch switches on and [10] Re-install the wall switch in the wall box (in off two times. The code of the transmitter is stored which the built-in switch is located). The product is in the memory of the built-in switch.
- Page 8 • The wireless system can be indefinitely expanded with other COCO remote controls and/or receivers. • Your COCO transmitter may have a special ‘group’ button with which multiple receivers with different settings can nonetheless be controlled simultaneously. Repeat [7 - 8] and press the ‘group’ on button of the transmitter in step [8].
- Page 9 • There may be restrictions on the use of this device outside the EU. If this device is used outside the EU, check whether the device complies with the local directives. This product complies with the essential requirements and other relevant provisions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.coco-technology.com.
- Page 10 If possible, submit this product for recycling after use. Do not dispose of the product with household trash. Warranty and copyright This device is covered by a two-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without...
- Page 11 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AWMR-230 MINI BUILT-IN SWITCH item number 74035 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
