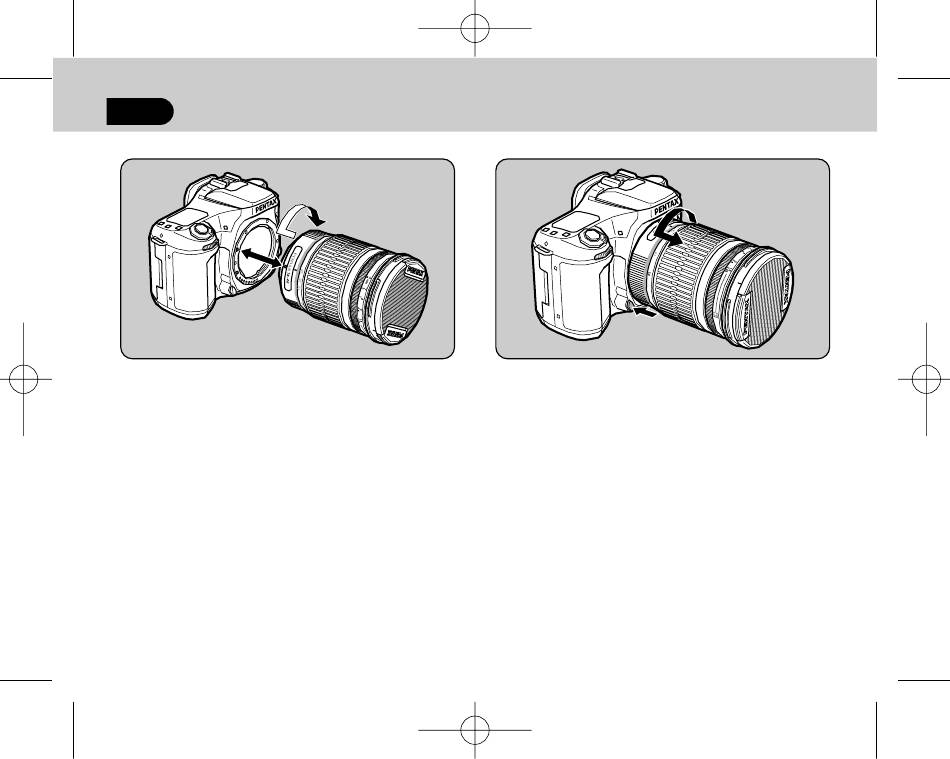

MOUNTING AND REMOVING THE LENS

6
1
1.
To mount the lens on the camera body
Attach the lens while aligning the red dots on the lens and body, then turn the lens
clockwise until it clicks in place.
✍
Memo:
•
Do not hold down the lens unlock button while mounting the lens, otherwise the lens will
not be properly mounted.
•
After mounting the lens, gently turn the lens counterclockwise to make sure it is locked
in place.
2.
To remove the lens
Hold down the lens unlock button on the camera body and turn the lens
counterclockwise.
2
