Summary of Contents for Meilhaus Electronic USB-GT Series

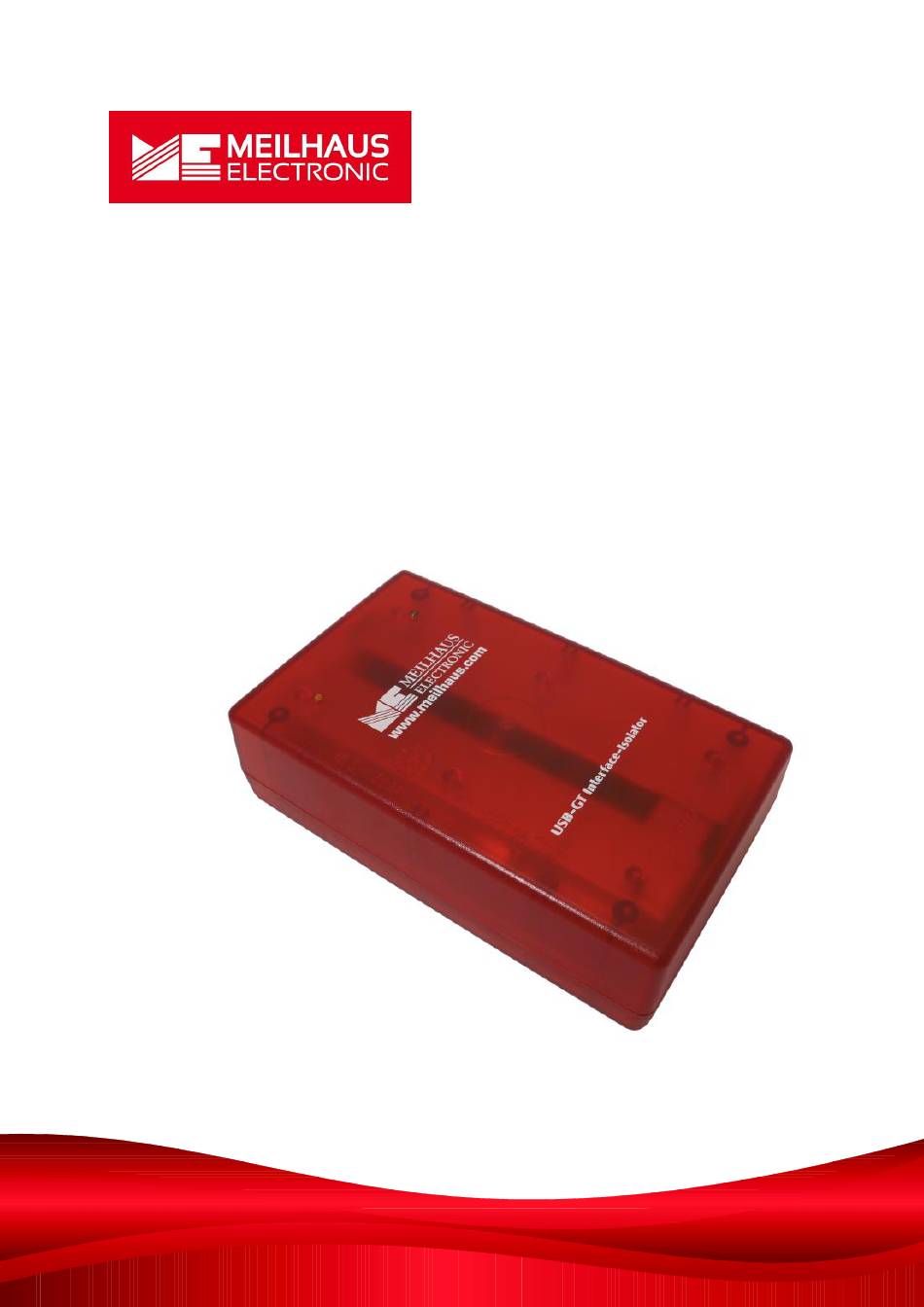

- Page 1 Meilhaus Electronic Manual USB-GT Interface Isolator (USB-GT (D), N, H, MED-D, MED-N)
- Page 2 Electronic assumes no responsibility for its use, any infringements of patents or other rights of third parties which may result from use of this manual or the product. Meilhaus Electronic assumes no responsibility for any problems or damage which may result from errors or omissions.
-
Page 3: Table Of Contents
Content Introduction ............4 Package Contents ............. 5 Model Overview ..............5 Function ................5 USB mode ................ 6 Connections ..............6 Safety precautions ..........8 Installation ............... 9 2.1.1 Model USB-GT (D) ............9 2.1.2 Model USB-GT-MED-D and USB-GT-MED-N: ....10 2.1.2 Model USB-GT-H and USB-GT-N: ........ -
Page 4: Introduction
Introduction Valued customer, Thank you for purchasing this device from Meilhaus Electronic. You have chosen an innovative high-technology product that left our premises in a fully functional and new condition. Please take the time to carefully examine the contents of the pack- age for any loss or damage that may have occurred during shipping. -
Page 5: Package Contents
Package Contents 1. 1 x ME-Power-DVD (User Manual + Certification document). 2. 1 x USB-GT Interface, depends on the version. 3. 1 x USB – Host Cable (A/B). 4. Model: USB-GT H und USB-GT N additional supplied compo- nents: 1 x External 5 V/DC power. Model Overview Model Admission... -
Page 6: Usb Mode
Model: ! Important ! Any device with a current load greater than 1 A USB-GT H should not be connected if it doesn’t have its own power supply. USB-GT N Any device with a current load greater than 1 A should not be connected if it doesn’t have its own power supply. - Page 7 An external power supply is not required for the standard USB-GT interface. An internal DC/DC-in- USB-GT-MED-D: verter supplies the secondary part of the circuit and therefore the connected device with max. 250 mA. An external power supply is not required for the standard USB-GT interface.
-
Page 8: Safety Precautions
Safety precautions Please refer to this user .manual and the following safety measures. 1. Check the USB-GT N interface for damage before use. Is the housing damaged? Are the USB connectors loose or pushed in? Are there loose parts inside the housing? The USB-GT N interface should not be used, if the damages men- tioned above are obvious. -
Page 9: Installation
Device-connection: Use only shielded USB cables with a maxi- mum length of 3 meters. The use of inappropriate cables may cause emissions or lead to a reduced noise immunity. 9. Do not store or use device in close proximity to other devices. Installation 2.1.1 Model USB-GT (D) For Installation please follow the following steps:... -
Page 10: Model Usb-Gt-Med-D And Usb-Gt-Med-N
2.1.2 Model USB-GT-MED-D and USB-GT-MED-N: For Installation please follow the following steps for 1. Check the USB–GT interface for damages before use (see safety precautions). 2. Connect the USB-cable (USB-A-Connector) to the operational host (for ex. PC). 3. Connect the USB-cable (USB-B-Connector) of the host to the interface. -
Page 11: Troubleshooting
! Attention ! No device should be connected that draws more than 1000 mA without its own power supply! 5. Now connect your device (for ex. USB–stick) into the USB-A- port of the USB–GT N interface and the yellow LED will begin blink- ing =>... - Page 12 If not, a defect in the interface is possible. In that case it has to be inspected by qualified service personnel. 4. After connecting the device, the yellow or green LED goes out: ! disconnect the cable immediately ! This could be an overload of the USB-GT interface. Check the current load of the connected devices.
-
Page 13: Appendix
Appendix Specifications Model: USB-GT-MED-D and USB-GT-MED-N Primary power supply through USB-B-port (host) +5V, approx. 500mA Secondary power supply by DC/DC converter Max. current load, device : 250 mA max. 250 mA max. (without external power supply; 2 A max. with 5 V (with external power supply) Host-connector (primary) USB-B-port... - Page 14 EN 60601-1-2: 2001 + A1: 2006 EN 60601-1: 1990 + A1: 1993 + A11: 1993 + A12: 1993 + A2: 1995 + A13: 1996 Model: USB-GT-N and USB-GT-H Primary power supply through USB-B-port (host) +5 V, approx. 130 mA Secondary power supply external power supply +5 V DC Max.
- Page 15 Device-connector USB-A-port (secondary) Power LED green LED, light up when host is con- nected Communication LED yellow LED-continuous light (DC/DC- converter is working) yellow LED-blinking (communication host– device) Data transfer bi-directional (half duplex, Master-Slave) Transfer rate Low-Speed: 1,5 Mbit/s Full-Speed: 12 Mbit/s Signal throughput time approx.
-
Page 16: B Drawings
Drawings... -
Page 17: C Accessories
Accessories We recommend to use high-quality connector cables with single- shielded lines per channel. For further accessories please refer to the current Meilhaus Elec- tronic catalog and the internet: www.meilhaus.de/en/pc-boards/accessories/... -
Page 18: D Technical Questions
Download-Server and Driver Update: To download current driver versions for Meilhaus Electronic devices as well as manuals in PDF format, please go to: www.meilhaus.org/driver Service Department with RMA Process: In case you need to return a board for repair purposes, we strongly ask you attach a detailed description of the error as well as infor- mation regarding your computer/system and the software used. -
Page 19: E Index
Index Accessories Model Overview Appendix Model USB-GT-N and USB-GT-H Modell: USB-GT-D Connections Package Contents Drawings Safety precautions Specifications Function Technical Questions Troubleshooting Hotline USB mode USB-GT-MED-D and USB-GT-MED-N Installation...
