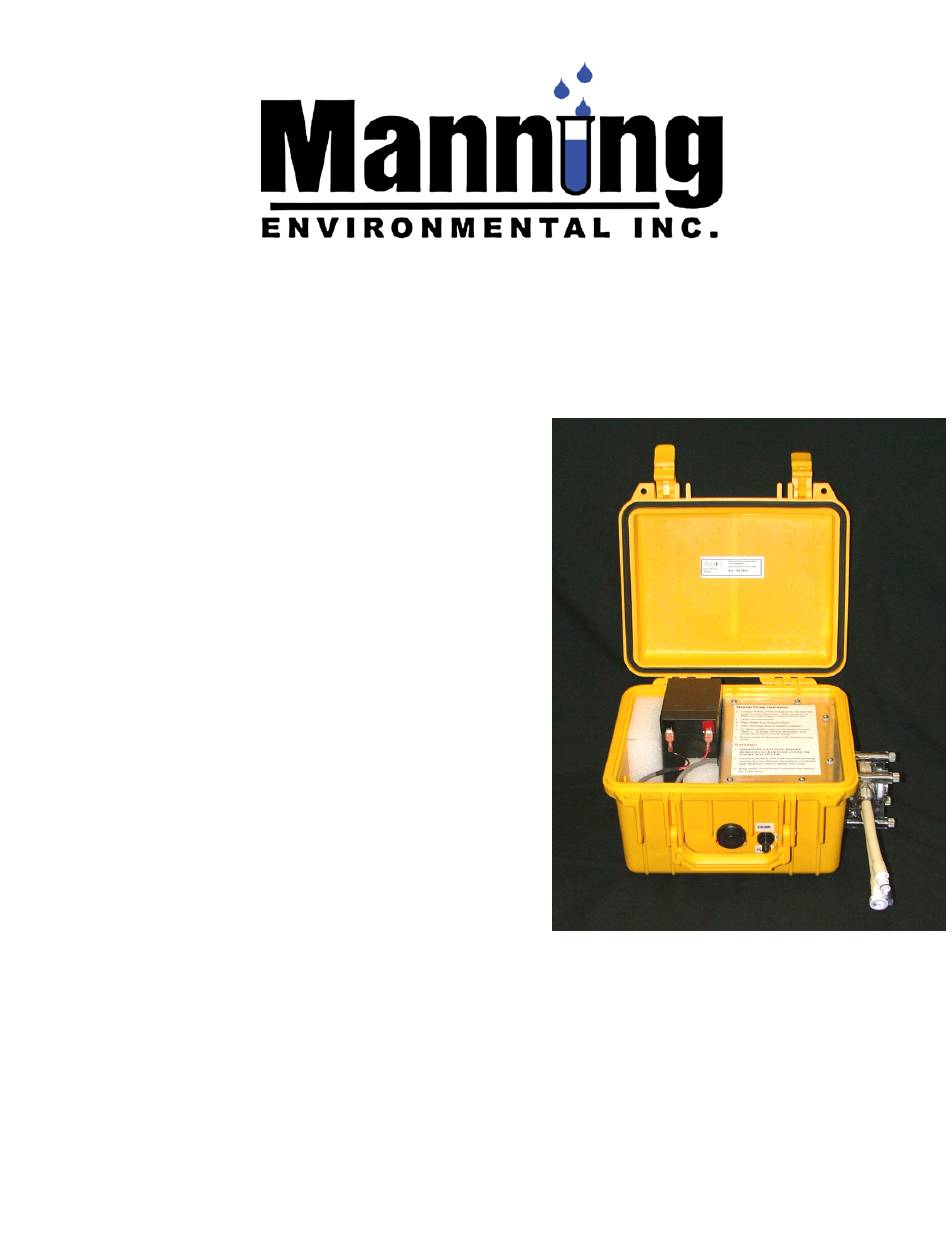

- Page 1 MSP250 Manual Sampling Pump Operation Manual 17 April 2014 © 2014 Manning Environmental Inc. All rights reserved.
-
Page 3: Replacing Pump Tubing
1. DISCONNECT BATTERY BEFORE REMOVING CLEAR PUMP COVER OR INJURY MAY OCCUR. 2. If MSP250 Manual Pump is used with the handle pointing upward, lay case flat and run pump to completely clear fluid from lines or spatter may occur. - Page 4 4. Orient the pump housing as shown below. (Note: The “bottom,” or the side that fits against the case, is pointing upward.) Orient rollers in ½ of pump housing as in picture. Note roller position. Fold pump hose in half, aligning ends and forming loop at other end.
- Page 5 Using the pump tool* included in the pump kit, rotate rollers clockwise while pressing hose in gap between rollers. *Note: Pump tool is stored in a slot at the top left of the foam insert in case. Continue until hose is in place. Once hose is in place, put on other half of pump housing.
- Page 6 Hold two halves together and rotate rollers clockwise using the pump tool. Set aside. 12. To re-attach pump housing, line up the arbor shaft with the pump motor shaft, and place clamshell onto motor. 13. Rotate the clamshell to align the four screw holes. 14.
- Page 7 Insert a pair of round-nose pliers into the end of the hose. Stretch out the hose with the pliers. Rotate the pliers 90 degrees in the hose and stretch again. Quickly remove the pliers and insert the fitting into the end of the hose.
- Page 8 Press the fitting into the hose using a wiggling motion. Make sure that barbed end of fitting is fully inserted into hose Removal of fitting Using a knife, cut a slit in the hose along the side of the connector.
- Page 9 The sampler is supplied with an extra male and female hose couplings to attach intake hose to the pump tubing. The MSP250 uses ¼” internal diameter intake hose, which is available from Manning as an accessory. Intake hose should always be ¼” internal diameter. If a larger internal diameter hose is used, the coupling may not fit and there will be a loss of performance.
- Page 10 If there are solids or debris in the water being sampled, Manning recommends using a strainer on the intake hose to prevent clogging. Strainers are available from Manning in PVC or stainless steel. If you have any questions, please call Manning Technical Support at (800) 863-9337 extension 205 or...
-
Page 11: Specifications
Manning Environmental, Inc. Phone: (800) 863-9337 101 Bar T Drive Fax: (254) 793-9965 Florence, Texas 76527-4445 Email: sales@manning-enviro.com Web: http://www.manningenvironmental.com In the interest of improving and updating its equipment, Manning reserves the right to alter specifications for equipment at any time. - Page 12 Items may not be returned without authorization from Manning Environmental, Inc. This warranty applies only to products sold under the Manning trademark and is the sole express warranty made by Manning Environmental, Inc. All implied warranties, including without limitation, the warranties of merchantability or fitness for a particular purpose, are disclaimed.∗...
