Honda 08L14-E09-101 Installation Instructions

Bicycle attachment (hitch mount) 2009 pilot.
Hide thumbs


Advertisement

www.collegehillshonda.com
INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

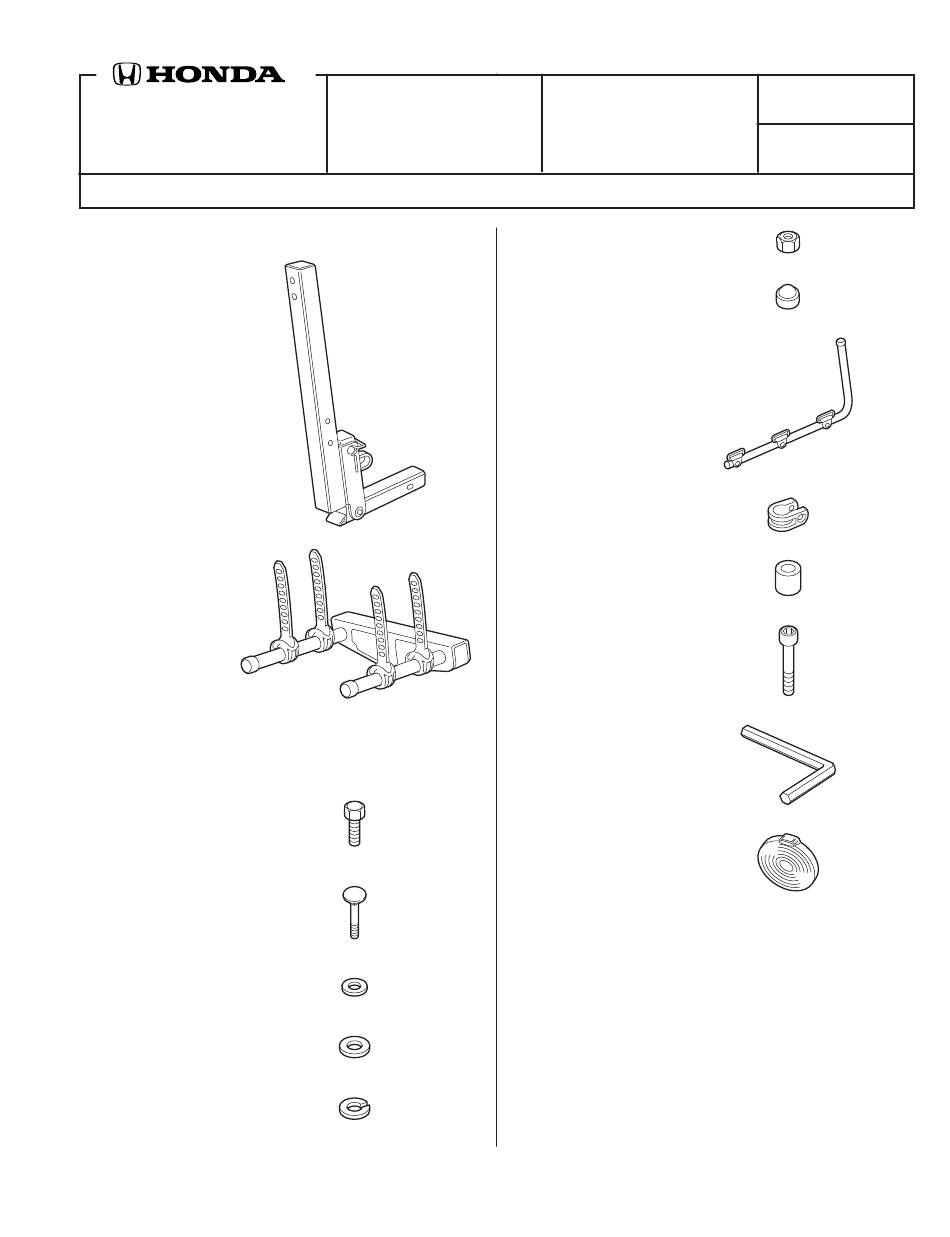

PARTS LIST
Upright assembly
Bicycle arm bracket
Bolt, 12 x 40 mm
4 Bolts, 8 x 70 mm
4 Washers, 8 mm
Flat washer, 12 mm
Lock washer, 12 mm
© 2008 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
BICYCLE ATTACHMENT
(HITCH MOUNT)
P/N 08L14-E09-101
4 Nuts
4 Nut covers
Tie-down bar
2 Clamps
2 Spacers
2 Socket bolts, 6 x 55 mm
Hex wrench
4 Straps
TOOLS REQUIRED
Ratchet
13 mm and 19 mm sockets
AII 39487 (0805)
Application
2009 PILOT
08L14-S9V-1000-91
Publications No.
AII 39487
Issue Date
MAY 2008
1 of 4
