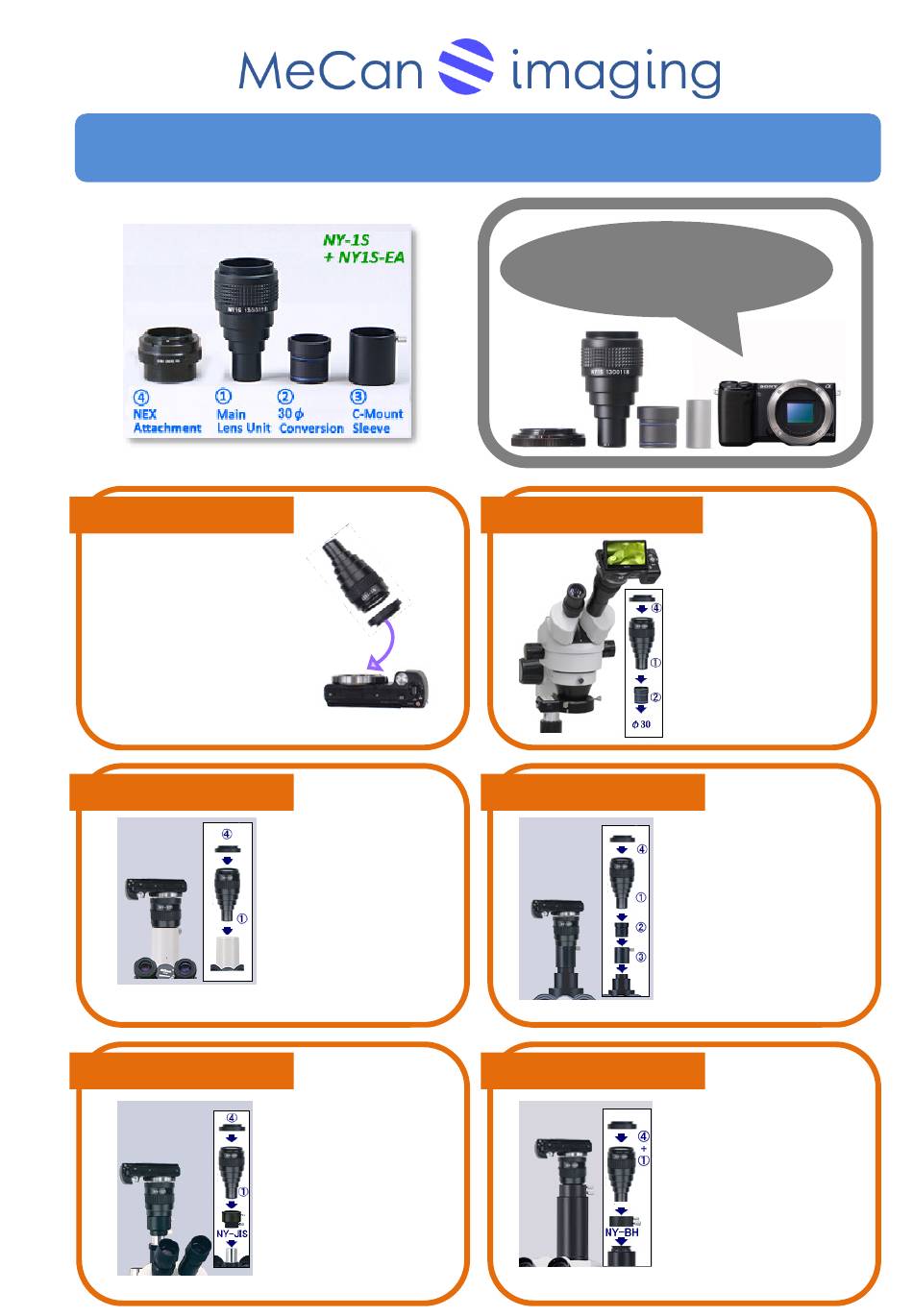

NY1S-α5100 – Microscope Documentation Set
Installation
First, attach ④ and ①.
Next, install ④ to lens
mount and secure.
Nikon F phototube
JIS phototube
Insert ① directly.
Secure with screw
which
may
be
attached to F-tube
Attach NY-JIS (option)
to JIS phototube.
Insert ① into it
and secure with screw
at the side of NY-JIS..
.
Photomicrograph with
Sony α5100
Eyepiece φ23.2/30mm
C-Mount
Olympus PT phototube
Remove eyepiece
and install ①.
Use ② for eyepiece
withφ30mm
diameter.
Screw ③into C-mount.
Attach ① and ② , and
insert it into ③. Secure
with screw at the side.
** Compatible with
Direct (1.0x) C -mount
Attach NY-BH (option)
to PT phototube.
Insert ① into it
and secure with screw
at the side of NY-BH..
.
Advertisement
Table of Contents
Summary of Contents for MeCan NY1S-a5100
- Page 1 NY1S-α5100 – Microscope Documentation Set Photomicrograph with Sony α5100 Installation Eyepiece φ23.2/30mm First, attach ④ and ①. Remove eyepiece Next, install ④ to lens and install ①. mount and secure. Use ② for eyepiece withφ30mm diameter. Nikon F phototube C-Mount Insert ①...
- Page 2 1. Settings * Page number next to each line refer to pages in Instruction Manual Help Guide Settings described here are only standard examples for starter. Please adjust details in accordance with your specific requirement as you get more accustomed to the operation. Turning on the camera and setting up the date/clock - Instruction manual - P20 Shoot mode - P (Program Auto) -...
- Page 3 2. Shooting Movie Instruction Manual P.21 - Help Guide [163] 5. Press the MOVIE button to start recording. 6. Press the MOVIE button again to stop recording. Point Focusing and brightness would be adjusted automatically Press the shutter button half way to focus quickly during recording,. Audio Recording off - Help Guide [105] 1.
