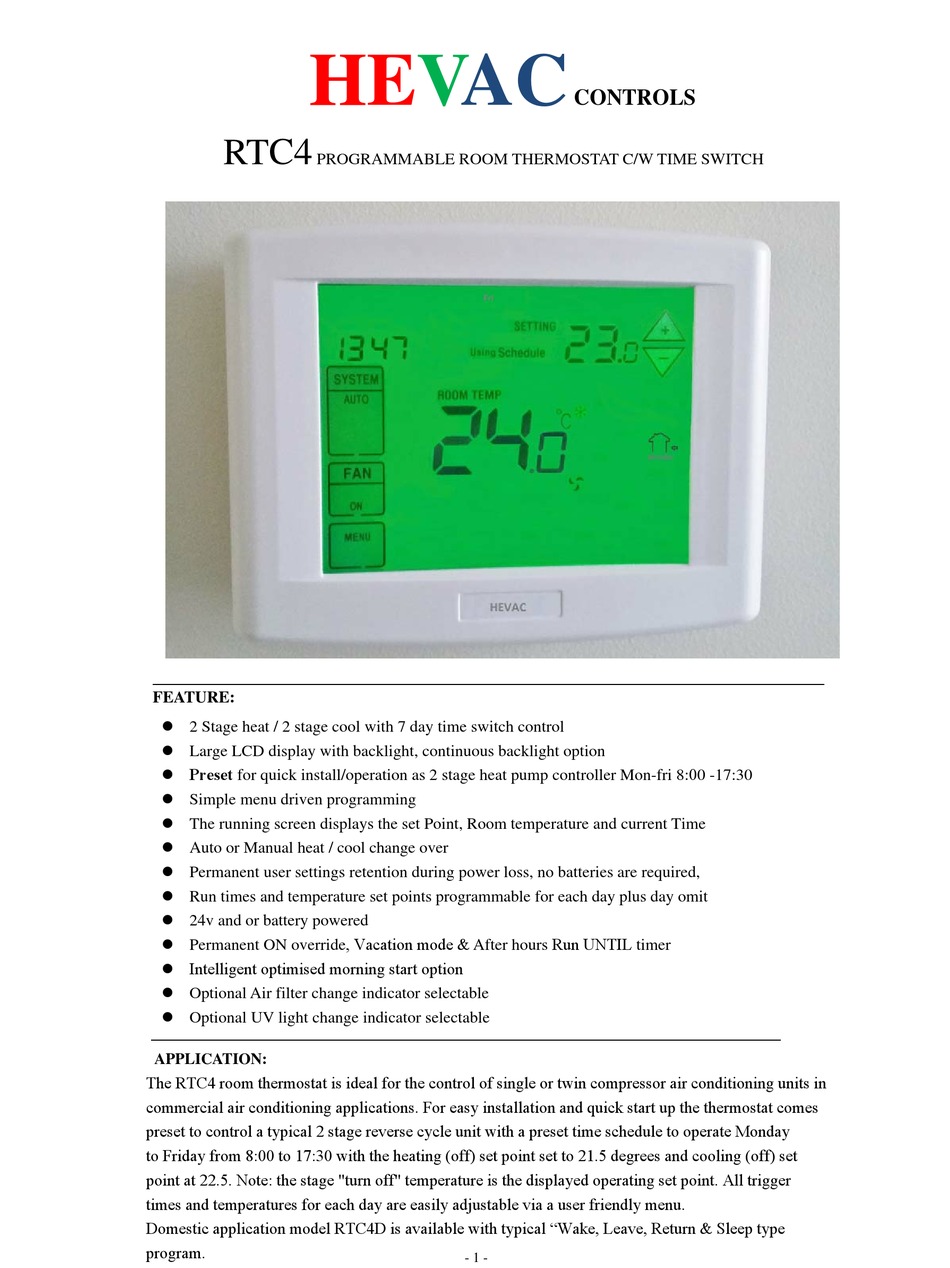

HEVAC RTC4 Manual

HEVAC
RTC4
PROGRAMMABLE ROOM THERMOSTAT C/W TIME SWITCH
FEATURE:
 2 Stage heat / 2 stage cool with 7 day time switch control
 Large LCD display with backlight, continuous backlight option
 Preset for quick install/operation as 2 stage heat pump controller Mon-fri 8:00 -17:30
 Simple menu driven programming
 The running screen displays the set Point, Room temperature and current Time
 Auto or Manual heat / cool change over
 Permanent user settings retention during power loss, no batteries are required,
 Run times and temperature set points programmable for each day plus day omit
 24v and or battery powered
 Permanent ON override, Vacation mode & After hours Run UNTIL timer
 Intelligent optimised morning start option
 Optional Air filter change indicator selectable
 Optional UV light change indicator selectable
APPLICATION:
The RTC4 room thermostat is ideal for the control of single or twin compressor air conditioning units in
commercial air conditioning applications. For easy installation and quick start up the thermostat comes
preset to control a typical 2 stage reverse cycle unit with a preset time schedule to operate Monday
to Friday from 8:00 to 17:30 with the heating (off) set point set to 21.5 degrees and cooling (off) set
point at 22.5. Note: the stage "turn off" temperature is the displayed operating set point. All trigger
times and temperatures for each day are easily adjustable via a user friendly menu.
Domestic application model RTC4D is available with typical "Wake, Leave, Return & Sleep type
program.
CONTROLS
