Summary of Contents for Fibrenetix Mobix-II Series

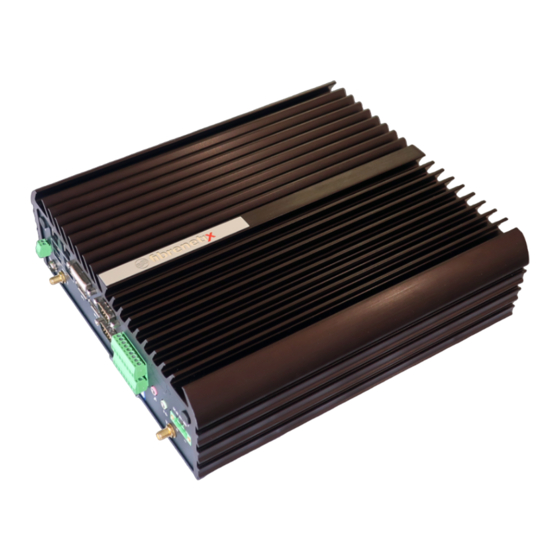

- Page 1 Quick User Guide Mobix-II Series Superior Fan less Embedded System User Guidel 130120 DP-652-2U September 2019...
-
Page 2: Table Of Contents
Front Panel ................................9 Rear Panel ................................10 Mobix-II (M12) ..................................11 Front Panel ................................. 11 Rear Panel ................................12 Mechanical Dimensions ............................13 Mobix-II (RJ45) / Mobix-II (M12) ............................. 13 2:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... - Page 3 ACPI Settings ................................ 43 NCT6106D Super IO Configuration .......................44 NCT6106D HW Monitor ............................ 49 Serial Port Console Redirection ........................50 Network Stack Configuration .......................... 51 CSM Configuration ............................. 52 USB Configuration ..............................54 3:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 4 Restore Defaults ..............................65 Watch Dog Timer (WDT) & General-Purpose Input / Output (GPIO) ........66 WDT Sample Code ................................66 GPIO Sample Code ................................67 Point of Contact ................................66 4:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
-
Page 5: Disclaimer
Published January 2020 Fibrenetix believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. Fibrenetix disclaims all warranties, express or implied, including, without limitation, those of merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. -
Page 6: Introduction
A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes Mobix-II series are safety system for all industrial applications. -
Page 7: Hardware Specification
User Guide Hardware Specification System MOBIX-II Series - MB-5XX-X-XXX-AXX-CT Processor Intel Core i7/i5/i3 or Pentium Processor ® ® ® Core Logic Intel Q170 Express Chipset ® Memory 2x 260-Pin DDR4 1866/2133MHz SODIMM Max. up to 32GB OS Storage (internal 2.5”) 2x Internal 2.5”... - Page 8 With SSD: 50G, half sine, 11ms Certification CE, FCC Class A Warranty Period 3 Years BTU/hr (with optional Power Adaptor) 410.31 *Specifications are subject to change, without prior notice. 8:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
-
Page 9: Hardware Details
Indicates the status of the LAN active LAN Port Antenna hole Used to connect the system to a local area network (MobixII-4L Only) Used to connect an antenna for optional Mini-PCIe WiFi module 9:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... -
Page 10: Rear Panel
Used to connect an antenna for optional Mini-PCIe WiFi module COM1 ~ COM2 support RS232/422/485 serial device DVI-I port Used to connect a DVI monitor or connect optional split cable for dual display mode 10:69 Mobix-II Series Europe − Americas −... -
Page 11: Mobix-Ii (M12)
Indicates the status of the LAN active LAN Port Antenna hole Used to connect the system to a local area network (MobixII-4L-M12 Only) Used to connect an antenna for optional Mini-PCIe WiFi module 11:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... -
Page 12: Rear Panel
Used to connect an antenna for optional Mini-PCIe WiFi module COM1 ~ COM2 support RS232/422/485 serial device DVI-I port Used to connect a DVI monitor or connect optional split cable for dual display mode 12:69 Mobix-II Series Europe − Americas −... -
Page 13: Mechanical Dimensions
User Guide Mechanical Dimensions Mobix-II (RJ45) / Mobix-II (M12) 13:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 14: Switches And Connectors
User Guide Switches and Connectors Switch and Connector Locations Top View Explanation for Top View in the table page 16 14:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 15: Bottom View
User Guide Bottom View Explanation for Bottom View is written in bold in the table page 16 15:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 16: List Of Connectors / Switches
PCI-Express X16 Slot PWR_LED1 Power LED Status HDD_LED1 HDD Access LED Status WDT_LED1 Watchdog LED Status GPIO_LED1 GPIO LED Status LAN1_LINK1, LAN2_LINK1 LAN Link LED LAN1_ACT1, LAN2_ACT1 LAN Active LED 16:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 17: Switches Definitions
Clear BIOS Connectors Definitions PWR_SW1: Power Button Definition Definition Power Button RESET1 : Reset Button Definition RESET USB3_1: USB3.0 Connector, Type A Definition Definition USB3_RX5+ USB2_D5– USB2_D5+ USB3_TX5– USB3_TX5+ USB3_RX5– 17:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... - Page 18 USB2_2: USB3.0 Connector, Type A Definition USB2_D8– USB2_D8+ USB2_CN1: USB2.0 Ports Connector Type: 2X5 10-pin box header, 2.0mm pitch Definition Definition USB2_D9+ USB2_D10+ USB2_D9– USB2_D10+ Cable Shield Cable Shield 18:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 19 Definition Definition UIM2_PWR UIM2_VPP UIM2_RESET UIM2_DATA UIM2_CLK SIM3: SIM Card Socket Definition Definition UIM3_PWR UIM3_RESET UIM3_VPP UIM3_CLK UIM3_DATA SIM4: SIM Card Socket Definition Definition UIM4_PWR UIM4_RESET UIM4_VPP UIM4_CLK UIM4_DATA 19:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 20 Connector Type: 2X5 10-pin box header, 2.54mm pitch COM3_1 RS232 Definition RS422 / 485 Ful Duplex RS485 Half Duplex Definition Definition DCD3 TX3– DATA3– RxD3 TX3+ DATA3+ TxD3 RX3+ DTR3 RX3– DSR3 RTS3 CTS3 20:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 21 Definition +9~48VIN DVI_I1: DVI-I Connector Definition Definition DVI_TX2– DVI Hot Plug Detect DVI_TX2+ DVI_TX0– DVI_TX0+ VGA_DDC_CLOCK DVI_DDC_CLOCK VGA_DDC_DATA DVI_DDC_DATA VGA VSYNC DVI_TXCLK+ DVI_TX1– DVI_TXCLK– DVI_TX1+ VGA_RED VGA_GREEN VGA_BLUE VGA_HSYNC 21:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 22 DP2_HPD DP2_LANE2_N DP2_LANE3_P DP2_PWR SPK_OUT1 : Speaker-out Jack (Green) MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Connector Type: 5-pin Phone Jack Definition Definition OUT_R MIC_R OUT_L MIC_L 22:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 23 Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch Definition Definition DC INPUT Reference Input Circuit Board External device Protection External power supply Circuit 5 - 30VDC Swich Optocoupler Protection Circuit Swich Optocoupler Board External device 23:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 24 Plus common External power supply Output pin 5 - 30VDC Protection Circuit Output pin Protection Circuit Optocoupler Minus common Digital Input Wiring Digital Output Wiring 16 18 16 18 24:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 25 Connector Type: RJ45 port with LEDs and dual USB3.0 ports Definition Definition Definition Link LAN2_MDI0P USB2_D3– USB2_D4– LAN2_MDI0N USB2_D3+ USB2_D4+ LAN2_MDI1P LAN2_MDI2P USB3_RX3– USB3_RX4– LAN2_MDI2N USB3_RX3+ USB3_RX4+ LAN2_MDI1N LAN2_MDI3P USB3_TX3– USB3_TX4– LAN2_MDI3N USB3_TX3+ USB3_TX4+ 25:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 26 LAN3, LAN4, LAN5, LAN6, LAN7, LAN8, LAN9, LAN10 : M12 Lan Port Connector Type: M12 X-code Female Connector LAN3~LAN10 Definition LAN3~LAN10 Definition LAN_MDI0P LAN_MDI3N LAN_MDI0N LAN_MDI3N LAN_MDI1P LAN_MDI2P LAN_MDI1N LAN_MDI2N 26:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 27 Definition WAKE# +3.3V +3.3V USB2_D12+ +3.3V MINIPCIE RST# MINIPCIE_RXN2 +3.3V +1.5V +3.3V CLKREQ2# MINIPCIE_RXP2 USIM2_VCC USIM2_DATA +1.5V MINIPCIE_CLKN2 USIM2_CLK SMB_CLK +1.5V MINIPCIE_CLKP2 MINIPCIE_TXN2 USIM2_RST SMB_DATA MINIPCIE_TXP2 USIM2_VPP +3.3V USB2_D12– 27:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 28 Definition WAKE# +3.3V +3.3V USB_D14+ +3.3V MINIPCIE RST# MINIPCIE_RXN12 +3.3V +1.5V +3.3V CLKREQ3# MINIPCIE_RXP12 USIM4_VCC USIM4_DATA +1.5V MINIPCIE_CLKN3 USIM4_CLK SMB_CLK +1.5V MINIPCIE_CLKP3 MINIPCIE_TXN12 USIM4_RST SMB_DATA MINIPCIE_TXP12 USIM4_VPP +3.3V USB_D14– 28:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 29 SATA_RXN3 SATA_RXP2 SATA_RXP3 +3.3V +3.3V +3.3V +12V +3.3V +12V +3.3V +12V +3.3V +12V +12V +12V POWER1, POWER2, POWER3, POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V 29:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 30 Connector Type: PCI-Express X1 Slot A Definition B Definition +12V +12V +12V +12V +12V SMB_CLK SMB_DATA A11 A12 +3.3V B11 B12 +3.3V +3.3V +3.3VSB PCIE_RESET# PCIE_WAKE# +12V PCIE_CLKP1 PCIE_CLKN1 PCIE_TXP11 PCIE_TXN11 PCIE_RXP11 PCIE_RXN11 30:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 31 PEG_RXP12 PEG_TXP3 PEG_RXN12 PEG_TXN3 PEG_RXP3 PEG_TXP13 PEG_RXN3 PEG_TXN13 PEG_RXP13 PRSNT2_2 PEG_RXN13 PEG_TXP4 PEG_TXP14 PEG_TXN4 PEG_TXN14 PEG_RXP4 PEG_RXP14 PEG_RXN4 PEG_RXN14 PEG_TXP5 PEG_TXP15 PEG_TXN5 PEG_TXN15 PEG_RXP5 PEG_RXP15 PEG_RXN5 PEG_RXN15 PRSNT2_4 PEG_TXP6 31:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
- Page 32 GPIO LED– LAN1_LINK1, LAN2_LINK1 : LAN Link LED Status Definition LINK LED+ LINK LED-100Mbps- LINK LED 100Mbps- LAN1_ACT1, LAN2_ACT1 : LAN Active LED Status Definition ACTIVE LED+ ACTIVE LED– 32:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
-
Page 33: System Setup
System Setup Installing HDD on removable SATA HDD bay Two removable SATA HDD bays are available for Mobix-II Series Unscrew the two sun screws circled below to take out the removable SATA HDD bay. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L). -
Page 34: Installing Sim Card
User Guide Installing SIM card For Mobix-II Series, SIM card slot is located inside the control area. Unscrew the two screws below to remove the cover bracket. Now you can insert SIM card into the socket. Please note that the installation of SIM cards has to match the installation of mini PCIe slots. - Page 35 Matching Mini PCIe Slot SIM 1 MINIPCIE1 SIM 2 MINIPCIE2 SIM 3 SIM 4 To uninstall SIM card, simply press the installed SIM card and then the card will be pushed out. 35:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
-
Page 36: Installing Wall Mount Kit
User Guide Installing wall mount Kit Wall mount kit is available for Mobix-II series included in the standard package. Place the system upside down so you can see the bottom cover. The highlighted eight screwholes below will be used. Lock the wall mount kit with eight screws (M3x5L, Nylok). -
Page 37: Bios Introduction
The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen. 37:69 Mobix-II Series Europe −... -
Page 38: Main Setup
Language setup allows the user to configure the language. Please use <Tab> to switch between language elements. System Date Set the date. Please use <Tab> to switch between date elements. System Time Set the time. Please use <Tab> to switch between time elements. 38:69 Mobix-II Series Europe − Americas −... -
Page 39: Advanced Setup
User Guide Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your prefe- rence. 39:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 40: Cpu Configuration
C-State package register. ■ This item allows you to enable or disable the Intel Hyper-Threading Technology. The options are C0/ C1, C2, C3, C6, C7, C7s, C8 and No Limit. 40:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... -
Page 41: Pch-Fw Configuration
■ Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. Un-Configure ME ■ Use this function to enable or disable Un-Configure ME without password function. 41:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... -
Page 42: Sata And Rst Configuration
Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5 ■ This item allows users to enable or disable Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5. 42:69 Mobix-II Series Europe −... -
Page 43: Trusted Computing
User Guide Trusted Computing ACPI Settings Enable ACPI Auto Configuration ■ Enable or disable BIOS ACPI auto configuration. 43:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 44: Nct6106D Super Io Configuration
User Guide NCT6106D Super IO Configuration 44:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... - Page 45 ■ This setting is used to change the address & IRQ settings of the specified serial port. Device Type Select ■ Change the Serial interface. Select <RS232> ,<RS422> or <RS485> interface. 45:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 46 ■ This setting is used to change the address & IRQ settings of the specified serial port. Device Type Select ■ Change the Serial interface. Select <RS232>, <RS422> or <RS485> interface. 46:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 47 ■ This setting is used to change the address & IRQ settings of the specified serial port. Device Type Select ■ Change the Serial interface. Select <RS232>, <RS422> or <RS485> interface. 47:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 48 ■ Change the Watch dog mode. Select <Second Mode> or <Minute Mode> mode. Watch Dog Timer Time Out Value ■ User can set a value in the range of 0 to 255. 48:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
-
Page 49: Nct6106D Hw Monitor
User Guide NCT6106D HW Monitor These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans’ speeds. 49:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 50: Serial Port Console Redirection
User Guide Serial Port Console Redirection Console Redirection ■ This item allows users to enable or disable console redirection. ■ 50:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 51: Network Stack Configuration
User Guide Network Stack Configuration Network Stack ■ Use this item to enable or disable UEFI Network Stack ■ 51:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 52: Csm Configuration
UEFI and Legacy: Allows booting from operating systems that support legacy option ROM or UEFI option ROM. Legacy only: Allows booting from operating systems that only support legacy option ROM. UEFI only: Allows booting from operating systems that only support UEFI option ROM. 52:69 Mobix-II Series Europe −... - Page 53 Select <Do not launch>, <UEFI> or <Legacy>. Other PCI devices ■ This item determines option ROM execution policy for devices other than Network, storage or video. Select <Do not launch>, <UEFI> or <Legacy>. 53:69 Mobix-II Series Europe − Americas −...
-
Page 54: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. 54:69 Mobix-II Series Europe −... -
Page 55: Chipset
User Guide Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your pre- ference. 55:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 56: System Agent (Sa) Configuration
User Guide System Agent (SA) Configuration VT-d ■ This item allows users to enable or disable VT-d. 56:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... - Page 57 DVMT Total Gfx Mem optimal Between 128M, 256M or MAX. Primary IGFX Boot Display ■ Use the field to select the type of device you want to use as the display(s) of the system. 57:69 Mobix-II Series Europe − Americas −...
- Page 58 Max Link Speed ➤ This item allows you to configure PEG 0:1:1 Max Sped. Detect Non-Compliance Device ■ Detect Non-Compliance PCI Express Device. If enable, it will take more time at POST time. 58:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
-
Page 59: Pch-Io Configuration
This section allows you to configure the chipset. PCI Express Configuration ■ PCI Express Root Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 ■ 59:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... - Page 60 ■ AChange the PCIe Port Speed. Select <AUTO>, <Gen 1> or <Gen 2> Detect Non-Compliance Device ■ Detect Non-Compliance PCI Express Device. If enable, it will take more time at POST time. 60:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 61 Options to disable compliance mode. Default is FALSE enable compliance mode. Set TRUE to disable compliance mode. xDCI Support ■ This item will allow users to enable or disable xDCI Support. 61:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com...
- Page 62 Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled. Auto: Azalia will be enabled if present, disabled otherwise. 62:69 Mobix-II Series Europe − Americas −...
-
Page 63: Security
Security menu allow users to change administrator password and user password settings. Administrator Password This item allows you to set Administrator Password. User Password This item allows you to set User Password. 63:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com... -
Page 64: Boot
Hard Driver BBS Priorities The items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. 64:69 Mobix-II Series Europe −... -
Page 65: Save & Exit
This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /load default values for all the setup options. 65:69 Mobix-II Series Europe − Americas −... -
Page 66: Watch Dog Timer (Wdt) & General-Purpose Input / Output (Gpio)
//Bit3 = (1:Minute Mode/0:Second Mode) WriteByte (DataPort, buf2); //Write back //Set watch dog time value WriteByte (AddrPort, 0xf1) WriteByte (DataPort, Time) //Set watch dog time value // close config mode WriteByte (AddrPort, 0xaa); 66:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... -
Page 67: Gpio Sample Code
#define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, 0x07); WriteByte (DataPort, SIO_LDN_GPIO); //Set OUT1~OUT8Value WriteByte (AddrPort, GPIO_Port); WriteByte (DataPort, 0x00); //set OUT1~OUT8 value, OUT1=Bit0, OUT2=Bit1 67:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com... - Page 68 Data= ReadByte (DataPort); //Read In1~In8 value Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 // close config mode WriteByte (AddrPort, SIO_Lock_Value); 68:69 Mobix-II Series Europe − Americas − Middle East sales@fibrenetix.com www.fibrenetix.com...
-
Page 69: Point Of Contact
Point of Contact For further assistance, contact Technical support Please be prepared to provide the following information: Serial number(S/N), Product Name, Model Number, and a brief description of the issue. Technical Support: Support@fibrenetix.com 69:69 Mobix-II Series Europe − Americas −...
