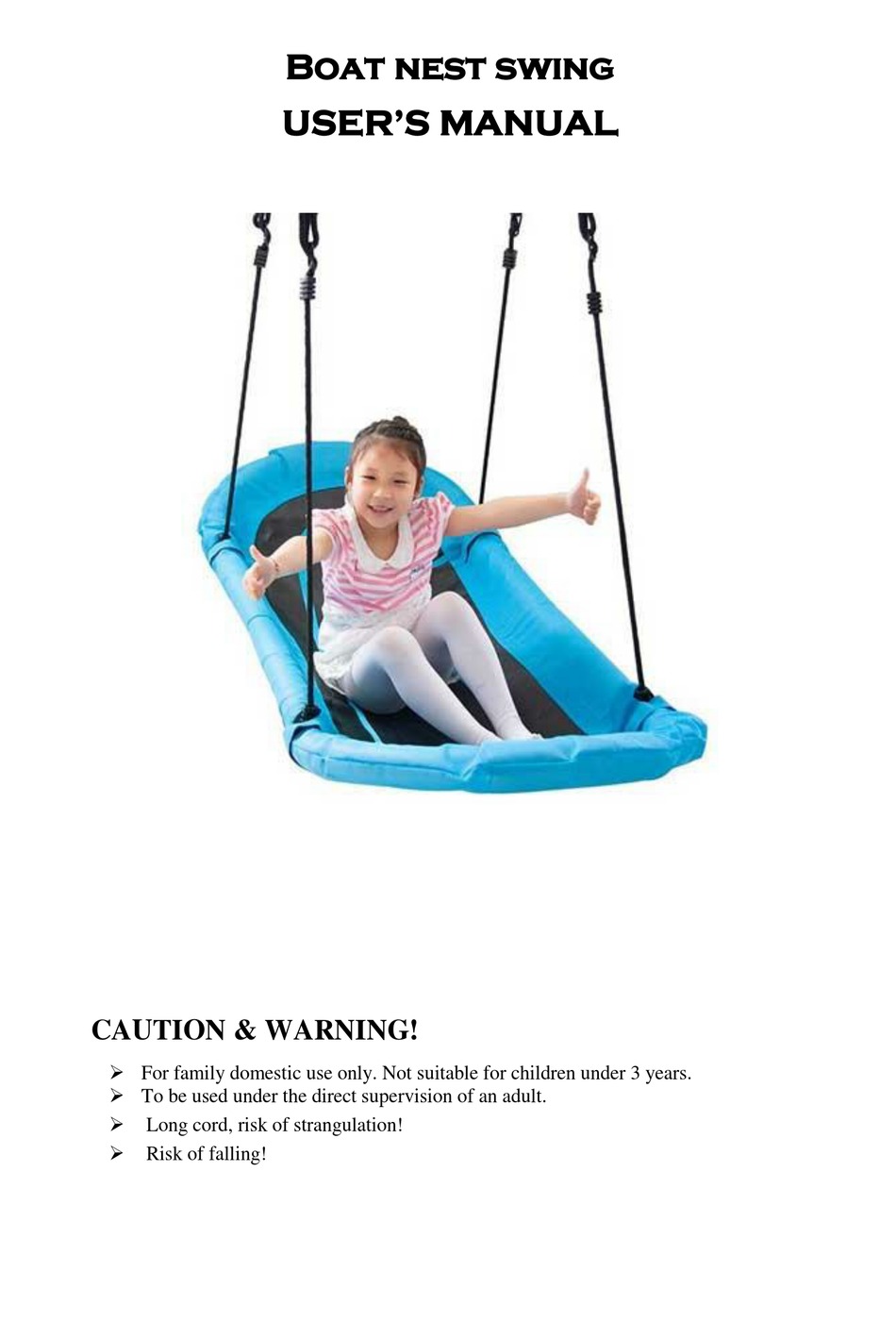

- Page 1 Boat nest swing USER’S MANUAL CAUTION & WARNING! For family domestic use only. Not suitable for children under 3 years. To be used under the direct supervision of an adult. Long cord, risk of strangulation! Risk of falling!
- Page 2 INSTRUCTIONS FOR USE SAFETY INSTRUCTIONS WARNING！ 1. Please keep this instruction sheet safely for future reference. 2. Please do not modify the product or the assembly details in any way. Modifications will affect the structural integrity and replacement parts will be at the buyer’s expense. Inappropriate use or faulty application of the product are explicitly forbidden and absolve the manufacturer of all liability.
- Page 3 PARTS LIST Remove all parts out of the packaging and check if anything is damaged, and if all parts are present. ITEM PART IMAGE PART Sail Curved tubes Straight tubes Ropes HOW TO INSTALL - Installation A - Distance between the suspension points along the crossbeam. B - Distance between the junction points of the swing element and the means of suspension.
- Page 4 The distance of A can be calculated by taking the measurement of the height and multiply it by 0.04, you will then add the measurement of the width. The distance of A should be equal to or greater than that amount. Example: H=25m B=65cm...
- Page 5 ASSEMBLY STEPS 1. Open the flaps of the seat mat. Insert the two Curved tubes into the seat mat through the flap openings, forming arc-shape. Do not remove the stock absorbing foams from tubes. 2. Insert the two Straight tubes into the seat mat through the flap openings, Do not remove the stock absorbing foams from tubes.
- Page 6 5. .Insert the plastic connector of the rope from the top through the opening of the velcro flap. Please note that there are “I” and “II” marked on the inner side of the plastic connectors. 6. Now connect the tubes by pressing down the button on the contracted tube end. Locking is done by clicking on the button.
- Page 7 Following is how to disassemble the swing: Open the velcro flaps and push the shock absorbing foam to the side. Press down the button to pull the tubes apart. INSPECTION AND MAINTENANCE The frequency of inspection and maintenance will vary with the type of equipment or materials used or other factors (e.g.
- Page 8 Operational inspection (1 to 3 months) - Check the stability of the construction. - Check every part for excessive wear and replace when necessary. Annual inspection (1 to 2 times per year) - Check for rust and corrosion. - Check every part for excessive wear and replace when necessary.
