Summary of Contents for PoolMaster 59025

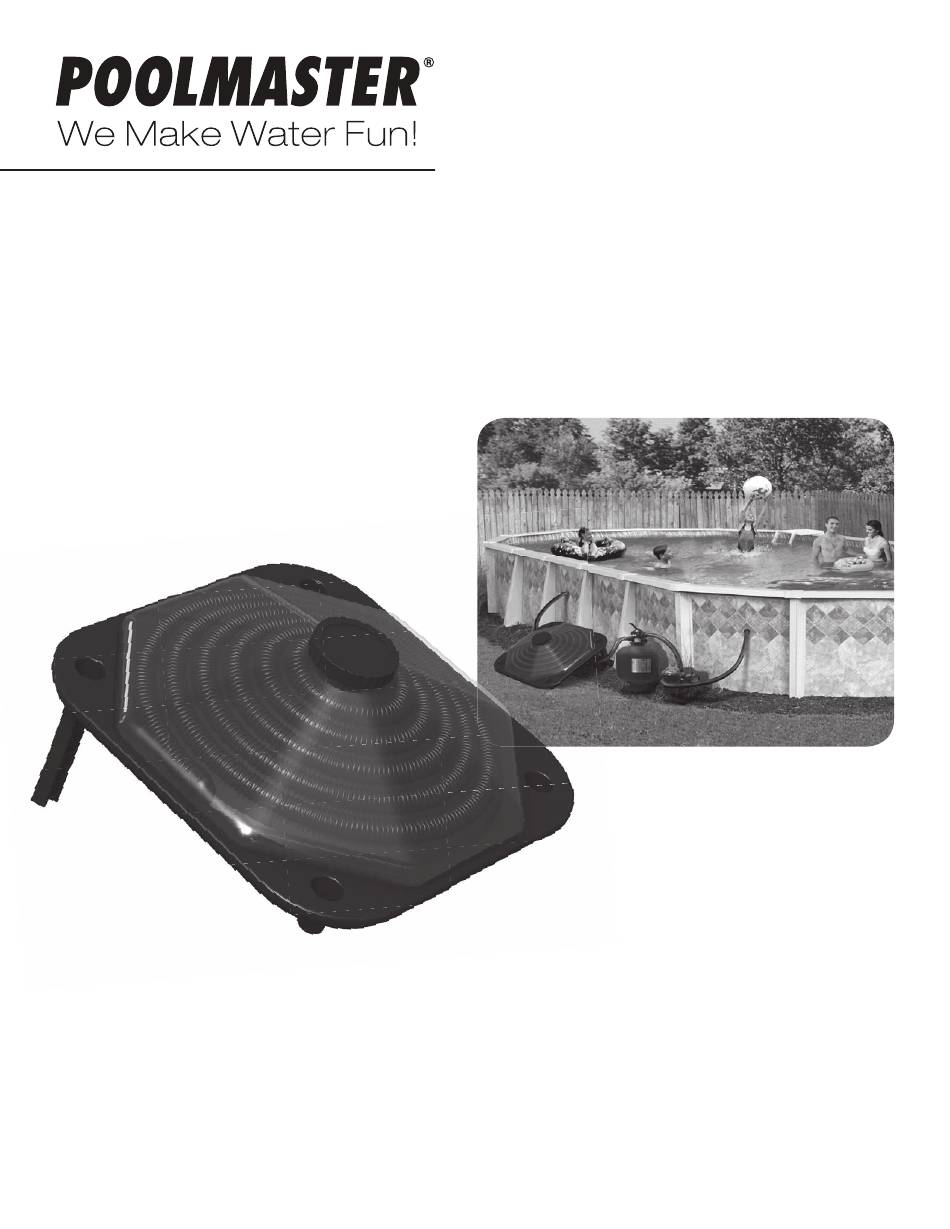

- Page 1 Above-Ground Pool Solar Heater 59025 Calentón Solar Para Alberca Sobre Tierra INSTRUCTIONS Read instructions BEFORE assembling! KEEP THESE INSTRUCTIONS for future reference.
- Page 2 THANK YOU FOR YOUR PURCHASE! We know that you and your family will enjoy the warming water that the Poolmaster Solar Heater ® for Above-Ground Pools will provide. We encourage you to read through all of the instructions before assembling your Solar Heater to maximize its performance, extending your swimming season.
- Page 3 EVERYTHING YOU NEED TO KNOW FOR OPTIMAL PERFORMANCE: • Place your Solar Heater on a solid surface. • Make sure that the Solar Heater is lower than your pool’s water level. • Make sure your Solar Heater is in a location that has the most SUN EXPOSURE for optimal heating effectiveness.
-
Page 4: Parts List
PARTS LIST - Please check to make sure you have all these parts BEFORE you begin Your Solar Heater comes with everything you need to assemble ONE Solar Heater unit PLUS an additional Bypass Kit of parts that allows you to regulate your water temperature based on your pump’s horsepower. -
Page 5: Setup Options
SET-UP OPTIONS DIAGRAM 1 - Pool & Basic Filter System Your pool should have this basic setup: FILTERED WATER POOL WATER FILTER PUMP SYSTEM BEFORE YOU BEGIN • Turn off your filter pump before you begin your installation process. • Be prepared to block the water from coming out of your pool and filter when you disconnect the filter pump hose in the next step. - Page 6 DIAGRAM 2 - Using One Solar Heater WITH 3-Way Bypass Kit To best regulate your water temperature, we recommend the following set-up. • This set up allows you to regulate the temperature using a 3-Way Bypass Valve which controls the amount of warmed water that flows back into the pool.
- Page 7 WARNING NOTE: Before attaching the 3-Way Bypass to Pool Bypass Valve, make sure you note the RIGHT FROM FILTER marking on the valve. (See photo on far right.) FAILURE TO CONNECT THE 3-WAY BYPASS VALVE IN THE RIGHT WAY WILL RESULT From IN IMPROPER WATER FLOW AND POTENTIAL Filter...
- Page 8 • Turn the Solar Heater unit over and locate the Incoming & Outgoing two openings – one will be used for an INCOMING Openings hose from the filter and the other for an OUTGOING hose back into the pool. It does not matter which opening you use for which purpose, but note that whichever opening you use for the hose coming INTO the Solar Heater, you MUST USE THE...
- Page 9 • Once you’ve assembled the Diagram 4 components, insert the prepared end with side hose connector into the other opening on the underside of the Solar Heater that you designated as the OUTGOING opening. NOTE: ONCE YOUR SIDE HOSE CONNECTOR IS IN PLACE, MAKE SURE YOU TURN TO LOCK. •...
- Page 10 HEATER OUTGOING HOSE END 1. Purchase an additional Poolmaster Solar Heater 2. Follow the set-up instructions in Diagram 2 - Using One Solar Heater WITH 3-Way Bypass Kit bridging the two units together using the incoming and outgoing hose connection method...
- Page 11 OPERATING YOUR 3-WAY BYPASS VALVE WARNING NOTE: If you run your pump at night, turn your 3-Way Bypass Valve to position 1. • Your 3-Way Bypass Valve is to help you regulate your warm water flow and takes into account the horse power of your filter pump.
-
Page 12: Faq's (Frequently Asked Questions)
• Position 1 = Directs 100% of the water flow through the 3-Way Bypass Valve and directly to your pool. The water from your filter pump will NOT go Bypass to Pool through the solar heater. THIS POSITION IS RECOMMENDED AT NIGHT TO BEST MAINTAIN THE WARMED WATER TEMPERATURE IN YOUR POOL. - Page 13 Poolmaster products have a one year warranty against manufacturer’s defects. Poolmaster may repair or replace the defective item or send replacement parts to resolve the problem. Poolmaster reserves the right to request the return of faulty goods for our inspection.
