Summary of Contents for Delmarva 2000 DE-2L

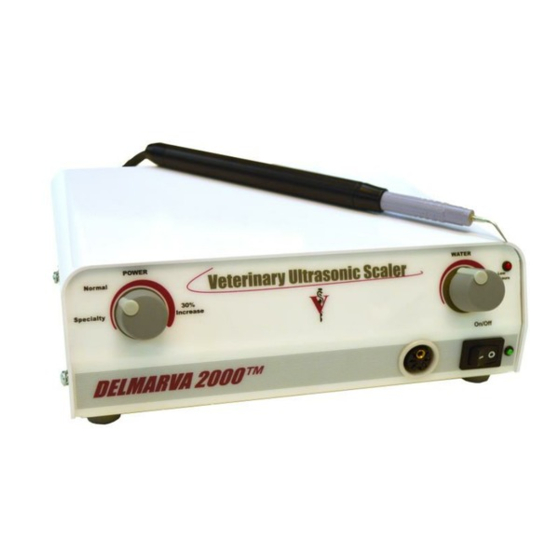

- Page 1 DELMARVA 2000 ™ Veterinary Scaler with Focused LED Illuminated Hand Piece Model DE-2L Owner’s Manual CONTAINS IMPORTANT SAFETY INFORMATION! READ BEFORE USE Federal Law restricts the sale of this device to, or on the order of, a licensed Veterinary physician.
-
Page 2: Table Of Contents
Table of Contents Specifications SAFETY INFORMATION! Must read before use! Unit Set Up Unpacking Water Supply Operating Instruction Electrical Power Scaler Handpiece Adjusting Lavage Water Pressure/Flow Using the Scaler Sterilizing and Disinfecting Purging the Water System Insert Wear, Care, and Selection Must read! Setting POWER Wear Guide Trouble Shooting Guide... -
Page 3: Specifications
DELMARVA 2000 ™ Veterinary Scaler Specifications Power Requirement: 120V +/- 10%, 60Hz 200W max Water Requirement: Cold Drinkable Water @ 20 PSI min, 50 PSI max Temperature: F to 90 F (storage 35 F to 95 Dimensions: 2.5” (63.5 mm) H, 8.0” (203 mm) W, 6.25” (159 mm) D, (excluding... -
Page 4: Safety Information! Must Read Before Use
SAFETY PRECAUTIONS MUST READ BEFORE USE! WARNING! ALWAYS sterilize or disinfect handpieces, inserts, and attachments before use Use only clean, drinkable, COLD water for lavage ALWAYS place handpiece in the side bracket after use and NEVER leave on the patient ALWAYS use only as much power as necessary when scaling and NEVER use high power with perio tips or the feline urethral catheter Avoid keeping the insert tip in one place too long... -
Page 5: Unit Set Up
UNIT SET UP UNPACKING Verify that all items are accounted for and undamaged: Veterinary Scaler unit with integral foot pedal Ultrasonic Scaler hand piece TFI#3 Scaling Insert Quick Release Valve water connection Water Line with Filter installed Water Supply Install the ¼”... -
Page 6: Operating Instruction
OPERATING INSTRUCTIONS The Veterinary Scaler is a finely engineered instrument, designed to provide years of trouble free service. The following instructions will help you operate and maintain the unit at optimal performance. ELECTRICAL POWER CONNECTION Plug the electrical cord into the appliance entry on the rear of the 2000 Plus unit. Be sure that it is fully inserted. -
Page 7: Using The Scaler
USING THE SCALER Tap at the calculus to start then use slow strokes with light pressure in an apical or oblique direction with the tip parallel to the tooth surface beginning at the coronal edge of the calculus. Do not stroke laterally at the calculus with the side of the tip as you would with a curette as this tends to burnish heavy calculus instead of removing. -
Page 8: Purging The Water System
STERILIZING AND DISINFECTING (CON’T) The autoclaving parameters given reflect the recommendations of our component vendors. These recommendations are not intended to supersede routine spore testing in accordance with your state and local health department regulations, where required. It is highly recommended that a spore test be done in any case to verify your autoclave at the parameters cited. -
Page 9: Insert Wear, Care, And Selection Must Read
INSERT WEAR, CARE, and SELECTION Inserts wear out with normal use. Compare your insert against the full size illustration on page 8 to gauge how much wear has occurred. A monthly check is appropriate for the DE-5 and DE-6, however the finer DE-6A should be checked bi-weekly. When the tip reaches back to the blue line, efficiency is reduced by 25%. -
Page 10: Wear Guide
WEAR GUIDE Hold tip up against page and align root with illustration to measure wear. -
Page 11: Trouble Shooting Guide
Unit will not come on (no lights) Use another outlet or else correct the Faulty outlet fault Unit internal failure Call Delmarva 2000 Technical support The water supply turned off or else the quick release is Turn on, connect disconnected... -
Page 12: Portable Water Supply
Depending on concentration, deposits in the 2000 Plus water system could eventually become severe enough to restrict water flow to the point where the unit will have to be returned to Delmarva 2000 for service. The same is true for hard water. -
Page 13: Accessories
Accessories Item# Description DE-5 TFI #3 Insert - 25k (Thru Flow Insert) Included with all dental units. “Beaver Tail” for heavy calculus DE-5A FSI #3 Insert - 25k (Focus Spray Insert) “Beaver Tail” for heavy calculus DE-6 TFI #10 Insert - 25k (Thru Flow Insert) “Universal” straight for light to moderate calculus DE-6A SLI-10-S Insert - Periodontal - 25k (Focus Spray Slim Line Insert) Perio (low power) DE-6B FSI #10 Insert - 25k (Focus Spray Insert) “Universal”... -
Page 14: Warranty
3. PROPER DELIVERY: To render the services provided hereunder, the unit must be shipped Freight Prepaid or delivered to DELMARVA in either its original package or a similar package affording equal degree of protection. Warranty does not include shipping and handling back to the customer. - Page 15 Non-Warranty Work - It is the customer’s responsibility to ship equipment in need of repair to DELMARVA, in the same manner as above. It is also the customer’s responsibility to return any rental equipment to DELMARVA when repairs are completed.
