VADA Rain2Main Quick Start Manual

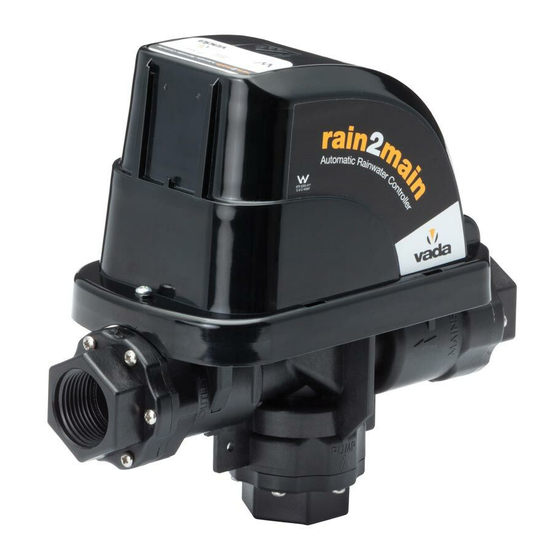

VADA - Rain2Main Automatic Rainwater Controller
PRODUCT OVERVIEW / APPLICATION
The Vada Rain2Main is designed to select between stored rainwater
(when available) and mains supply water, and send this water to
your toilet cistern, washing machine, garden and other non-potable
household water applications. It features automatic pump control to
minimise the use of electricity while saving water.
When your tank is empty, the Rain2Main seamlessly switches to
mains water supply so that there is no interruption of water to your
toilet cistern or washing machine.
Do not use the Rain2Main for liquids other than clean water.
TECHNICAL DETAILS
Mains Water supply inlet
Pump Connection
Water Outlet Connection
Protective Rating
Min Mains Pressure
Max Mains Pressure
Water Temp Range
Ambient Temp Range
Rated Supply Voltage
Max Electrical Load
Power Consumption (Mains)
Power Consumption (Tank)
Minimum Flow Rate
INSTALLATION INSTRUCTIONS
• The operator must be provided with this owner's manual. This
must be read before instlalation and followed during installation.
• These instructions are a guide only. Users not familiar with the
installation and maintenance of electrical and pumping equipment
should seek advice from people with experience in pump installa-
tion and operation.
WARRANTY & AFTER SALES SERVICE
You have purchased a quality product from Reece Australia. This
product is covered by a 24 month warranty. This warranty covers faults
in the product construction, material and assembly. Faulty products
will be repaired or exchanged free of charge. Faulty items become our
property.
This warranty does not include faults caused by
• Unsuitable or improper use
• Incorrect installation
• Normal wear and tear
• Inadequate or complete lack of maintenance
• Chemical, electrochemical or electrical influences
Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
1" BSP Female Thread
1" BSP Female Thread
1" BSP Female Thread
IP44
100 kPa
1000 kPa
1°C - 40°C
1°C - 40°C
230 - 240Vac
10A
1W
18W
2 L/min
Rain2Main is designed to be used with clean water in a
residential application. Do not use with alternative fluids,
specifically abrasive, corrosive or explosive fluids.
This appliacne is not intended for use by persons (incl children)
with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless have been given supervision
or instruction concerning the use of the appliance. Children
should be supervised to ensure they do not play with Rain2Main.
To the maximum extent permitted by law, Reece excludes all warranties
other than those set out above. In the event of a warranty claim, we
will replace or repair defective products, or pay for the cost of having
defective products repaired or replaced, but will not be liable for any
injury to any person, damage to any property, any indirect or
consequential loss, or in any other respect.
For after sales service, call 1800 080 055.
