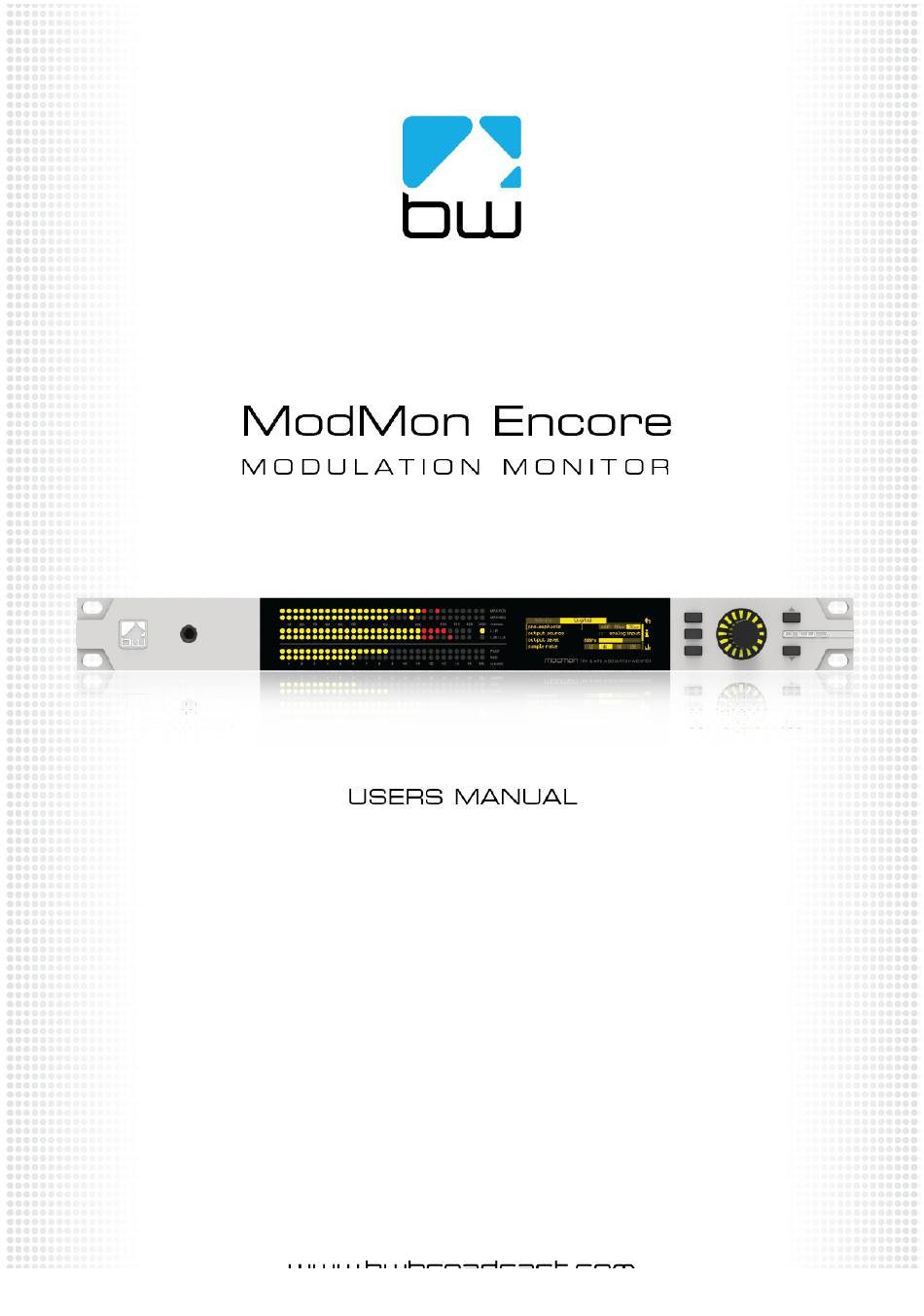

BW Broadcast ModMon Encore User Manual

Modulation monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the ModMon Encore and is the answer not in the manual?

Questions and answers

Summary of Contents for BW Broadcast ModMon Encore

Page 2: Table Of Contents
Contents The Encore Family The ModMon Encore Warranty Safety Front & Rear Panels User Interface Installation & Operation System Configuration Presets Configuration Menu Structure Routing and Block Diagram Technical Specification...
Page 3: The Encore Family
About Encore Welcome to the Encore family! Encore is a modern, high-quality range of products designed around a common hardware and software platform. The Encore family includes: Audio processors § RDS coders § Stereo generators § Rebroadcast receivers § Audio backup devices §...
Page 4 All product-specific settings are contained within the ‘Presets’ menu – providing an automobile radio -like interface which works just as well for profiles in an RDS encoder as it does for settings in an audio processor, a modulation monitor or rebroadcast receiver. The web remote control interface is common across all products, as is the API and the internal language, so it’s simple to interface the whole Encore range of products with your common monitoring and telemetry system.
Page 5: The Modmon Encore
Thank you for choosing this product, we hope it will give you many years of joyous and satisfying pleasure. Please read on to see how to set up and use the ModMon Encore in your particular situation. 2 - 1...
Page 6: Warranty
Broadcast shall, at its sole discretion, either repair or replace the product. If the warranty claim proves to be justified, the product will be returned to the user. The freight will be paid by BW Broadcast within the first 2 years, thereafter freight will be the responsibility of the customer. Warranty claims other than those indicated above are expressly excluded.
Page 7: Safety
WEEE COMPLIANCE BW Broadcast Ltd is registered with Northern Compliance PCS number WEE/P3438PR/ SCH and has been issued with WEE/FA0268RX as its unique producer ID by the appropriate environment agency. BW Broadcast Ltd full comply with it explicit responsibilities, subject to WEEE Collections Policy outlined in their General Terms and Conditions of Sale, when it sells Electrical and Electronic Equipment (EEE) to B2B customers in the UK and EU.
Page 8 DETAILED SAFETY INSTRUCTIONS: All the safety and operation instructions should be read before the appliance is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. Follow instructions: All operation and user instructions should be followed.
Page 9: Front & Rear Panels
Front & Rear Panels The Encore range uses several versions of the front panel, each using similar components and featuring the same method of operation. Headphone OLED displays for Multicolour LED Scroll knob, LED ring and output for high matrixes for level menu system and buttons for control and quality audio...
Page 10 Note: Some connectors on the rear panel are non-functional where appropriate to the product 5 - 2...
Page 11: User Interface
User Interface NAVIGATING Encore products have an intuitive interface based around a pushable scroll knob, surrounded by a ring of LEDs, with a series of buttons. Some products have three buttons, some five and some six. The buttons can be ‘soft keys’, and perform various functions denoted by icons shown adjacent to them in the displays, or may be function-specific - in which case the buttons are illuminated with the following symbols: ONLINE...
Page 12 The icons that can be shown against the softkeys are as follows: If the ‘scroll screen left’ or ‘right’ icons are displayed, this indicates that there are additional screens available. Pressing these buttons slides the displays to and from these other screens. ‘Back’...
Page 13 EDITING A PARAMETER To edit a parameter, navigate to it in the menu using the knob - square brackets [ … ] will surround the currently highlighted parameter. Press the knob to select the parameter, then rotate the knob to change it. Changes happen immediately as you turn the knob;...
Page 14: Installation & Operation
7.1.1 AUDIO CONNECTIONS The analog audio outputs are balanced XLR connectors (pin 2 +ve) and can range from peak levels of -10dBu to +24dBu. The menus in the ModMon Encore are used to calibrate the audio levels to suit your facility.
Page 15 7.1.3 ANTENNA CONNECTIONS The two antenna connectors, labelled ‘FM 1’ and ‘FM 2’ on the ModMon Encore’s rear panel connect internally to the two separate tuner modules. Depending on your application, you may wish to use two separate antennas, or one antenna with a good quality splitter or distribution amplifier.
Page 16 MPX pos Positive component of the mpx, multiplex (or ‘composite’) signal § being received by the selected tuner. Range: 0-130% MPX neg Negative component of the mpx signal. Range: 0-130% § Left and right demodulated audio, or: § The demodulated stereo sum (i.e. mono) component of the audio. §...
Page 17 Presence or absence of Traffic Program and Traffic Announcement* § Scrolling RDS data blocks § * TP is a flag that indicates that the station does periodically transmit traffic information; The TA flag indicates that the station is currently transmitting traffic information. A further press of button 1 will show a status screen displaying various parameters of the signals being received by the two tuners: This screen shows realtime displays of the following, for both tuners:...
Page 18 Otherwise that output will continue to carry the audio from one of the tuners irrespective of the actions of the A/B buttons. The reason for this option is that you may be using the ModMon Encore to feed off-air audio from your station via its audio outputs to your facility for confidence monitoring;...
Page 19 THE SYSTEM MENU This menu contains all the fundamental unit configuration settings, and should be the first place you go after taking the Encore out of its box! These settings are peculiar to the installation, perhaps the transmitter site itself, as opposed to the following ‘Presets’...
Page 20 8.1 AUDIO I/O (Certain menu items are omitted in some products in the Encore range). Within this there are two submenus – ‘inputs’ and ‘outputs’. ‘Inputs’ allows you to set the operating level of the unit when referenced to the rest of your installation.
Page 21 MPX 2 source: none mpx in 1* tuner 1 mpx* tuner 2 mpx* mpx generator pilot tone MPX 2 out level: 0dBu to +12dBu** Headphones source: none analog audio digital audio tuner 1 audio tuner 2 audio test tone diversity Headphone level: 0 to 100% For convenience, the headphone source and headphone level settings are duplicated...
Page 22 Source: none analog audio digital audio tuner 1 audio tuner 2 audio diversity test tone Preemphasis: 50uS, 75uS, off. Pilot level: 0 to 12% in 0.1% increments RDS level: 0 to 5% in 0.1% increments Audio clip drive 0 to 12 O-sh compensate drv -3 to 9 (overshoot compensation drive)
Page 23 The other option available in this menu is ‘polarity’ – where you can set each pin to output either active Hi-Z (high impedance) or active low (i.e. connected to 0v). The Events and Triggers port pinouts are: Next is the list of the 8 available events, each of which can perform a variety of actions when triggered.
Page 24 both tuners, so in this case there’s no way the Encore can know when or if the event trigger has ended. When you’re happy with the event setup, return to the top of the event menu, and switch it to ‘active’. Exit from the ‘events’...
Page 25 Encore: Sender: the email address of the Encore, e.g encore- 01@stationname.com Mail method: ‘BW’ to allow the unit to send emails via the BW Broadcast monitoring system; ‘SMTP’ if you wish to send the emails via your own SMTP server;...
Page 26 This submenu shows values of current hardware parameters: PSU voltage; PSU current; PSU power; fan voltage; fan state; temperature; plus fan speed control – which should be left set to ‘auto’ unless otherwise advised by a BW Broadcast support technician.
Page 27: Presets Configuration
If this block shows the letter A, this indicates that the preset has been selected by an ‘action’ from the ‘events’ section of the ModMon Encore (see section 8 in this manual). If the block shows the letter S, the preset has been selected by a ‘schedule’ event.
Page 28 If you have a user preset loaded, and you then load one of the factory presets, the receive frequency and deemphasis settings are not altered. The ModMon Encore will in this case apply the rest of the processing and refinements contained within that factory preset.
Page 29 If you’re using the ModMon Encore to monitor the audio of your or any other off-air transmission, it’s probably worthwhile starting off by loading the F1 Monitor preset, then setting your frequencies before saving to a user preset.
Page 30 In this case, please use the F2 Measure preset as the basis for your user presets. Be aware though that in this case, due to the effects of ultrasonic noise and multipath interference, the ModMon Encore’s modulation readings will be affected by these factors, and will not be a true representation of your transmitter’s performance.
Page 31: Menu Structure
Menu Structure PRESETS > Monitor Measure U1…U8 user presets [Preset contents similar:] tuner 1 freq: (87.5-108MHz) rds: status displays PS, PI, PTY rds: status displays TP, TA status displays RSSI, BW status displays MP, USN tuner 1 deemphasis (off/50uS/75uS) tuner 2 freq: (87.5-108MHz) rds: status displays PS, PI, PTY...
Page 32 SYSTEM > EVENTS cont… value (on/off) or (value appropriate to trigger) on delay (0 to 60s) load preset (F1/F2/U1…U8) alarm send (start/end/both) set/change (none/analog/digital) (tuner 1/tuner 2/active tuner/test tone) revert (yes/no/delay) delay time (0 to 12s) set GPIO pin (1-4) name (qwerty) send trap...
Page 33 file (on/off) filename/location (off/on) udpip SYSTEM > COMMUNICATIONS > LOGGING cont… udpport test logging run (command) RS232 > active (yes/no) baudrate (9600/19200/57600/38400/115200) ABOUT > product serial# bootloader hardware os ver media engine ver front panel ver power supply ver PSU STATUS > psu voltage psu current psu power...
Page 34: Routing And Block Diagram
Routing & Block Diagram Please see below for an audio, RF and RDS data routing diagram. This can help you understand the enormous capabilities of the Encore family of products! 11 - 1...
Page 35 11 - 2...
Page 36: Technical Specification
Technical Specification Encore family specifications. Certain parameters are irrelevant in some products. TUNER (Dual) Inputs 2 x 50 ohm, BNC female Tuning range 65-108MHz in 50kHz or 100kHz steps IF bandwidth 56kHz - 311kHz dynamic or fixed De-emphasis 75µs, 50µs or Off SNR (Mono/Stereo) -79dB / -60dB THD (Mono/ Stereo)
Page 37 This manual was written by Andy Linton. © BW Broadcast Ltd. 2017. E&OE. Encore products are manufactured in the UK by BW Broadcast Ltd. IO Centre, Croydon Road, Croydon, CR0 4WQ, UK. Tel: +44 208 253 0290. US toll-free: 1-866 376 1612.
