Summary of Contents for DPS-Promatic SPEED TEST

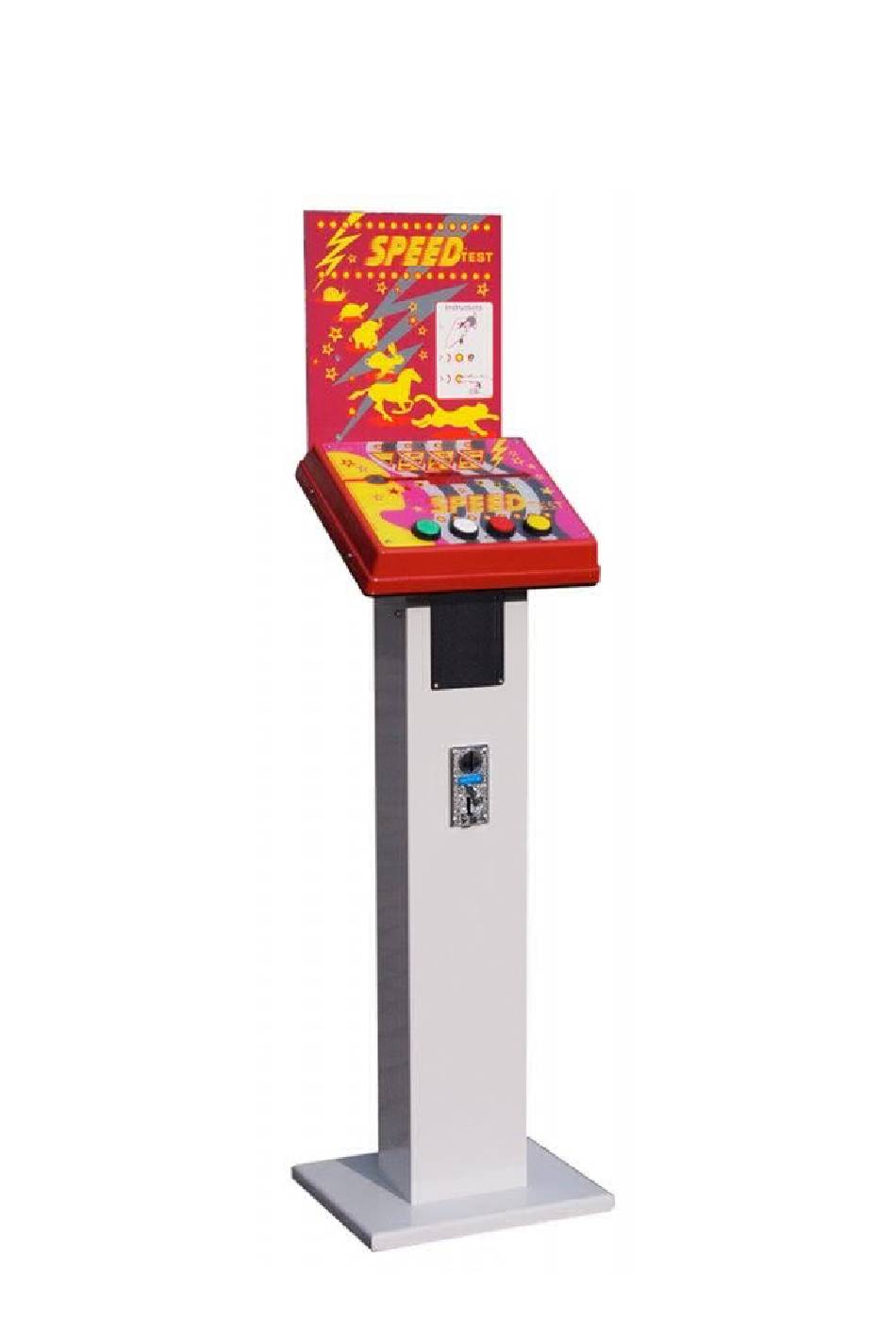

- Page 1 SPEED TEST Instructions manual v 1.0...
- Page 2 Speed Test English instructions v 1.0...
-
Page 3: Table Of Contents
1.1.Installing the back panel................5 1.2.Installing the cash box................. 6 1.3.Connecting and switching-on...............7 1.3.1 Coin acceptor..................8 1.3.2 Using the machine................9 1.3.3 Hi-Score....................9 1.4 Accounting....................10 1.5 Maintenance....................11 Specifications....................12 Declaration of conformity................13 Speed Test English instructions v 1.0... -
Page 4: Important Notes: Read Carefully
Consider to change it in case you feel this doesn’t comply with your policy. WASTE: This machine is an electronic device and should not be thrown in the regular waste and should be treated separately. Consult your local utility for more details. Speed Test English instructions v 1.0... -
Page 5: Unpacking
Find and identify the keys and the back panel. • Read this manual completely before attempting any operation. 1.1.Installing the back panel To install the unit you need to fix the back panel with the screws provided. Speed Test English instructions v 1.0... -
Page 6: Installing The Cash Box
1.2.Installing the cash box Before operating the machine you need to unpack the cash box, as shown below. Speed Test English instructions v 1.0... -
Page 7: Connecting And Switching-On
The power switch must be put in the ON position (1) to switch-on the machine. In the unlikely event of a blown fuse, always switch off the machine and disconnect the plug before changing it. Speed Test English instructions v 1.0... -
Page 8: Coin Acceptor
To do so, lift up the guide 1 and insert the coin. In case the coin has a big diameter, you may need to adjust the entrance fence with screw 2. Speed Test English instructions v 1.0... -
Page 9: Using The Machine
Press them in the same order. When you fail, the game is over 1.3.3 Hi-Score The current version of the speed test records the DAILY HI-SCORE (that is reset when the machine switches off) and the MACHINE HI-SCORE (that is stored in non-volatile memory). -
Page 10: Accounting
1.4 Accounting The machine has a counter that counts plays. It is visible from the back, near the coin acceptor. Speed Test English instructions v 1.0... -
Page 11: Maintenance
If you need to change it, ALWAYS switch off the power and unplug the machine before accessing the fuse. CLEANING: Customer put their hands on the front panel so it is important to keep it clean to avoid any disease transmission Speed Test English instructions v 1.0... -
Page 12: Specifications
Specifications Power Voltage: 115-230V (factory set to either) (+/- 10%) 50/60Hz Power consumption: 20VA max Fuses: 1 x 1A , accessible from outside Speed Test English instructions v 1.0... -
Page 13: Declaration Of Conformity
Electrical safety: Directive 73/23 This product must be connected to a properly grounded AC socket This product is not suitable for a wet or extremely humid environment Forlì 15-9-2010 DPS-Promatic srl Massimo Portolani Managing Director Speed Test English instructions v 1.0... - Page 14 47122 Forlì Italy E-mail dps1@dps-promatic.com This is revision 1.0 SPEED TEST user manual To keep amending our product and documentation this manual will be updated from time to time. Please check latest versions on http://www.dps-promatic.com Speed Test English instructions v 1.0...
