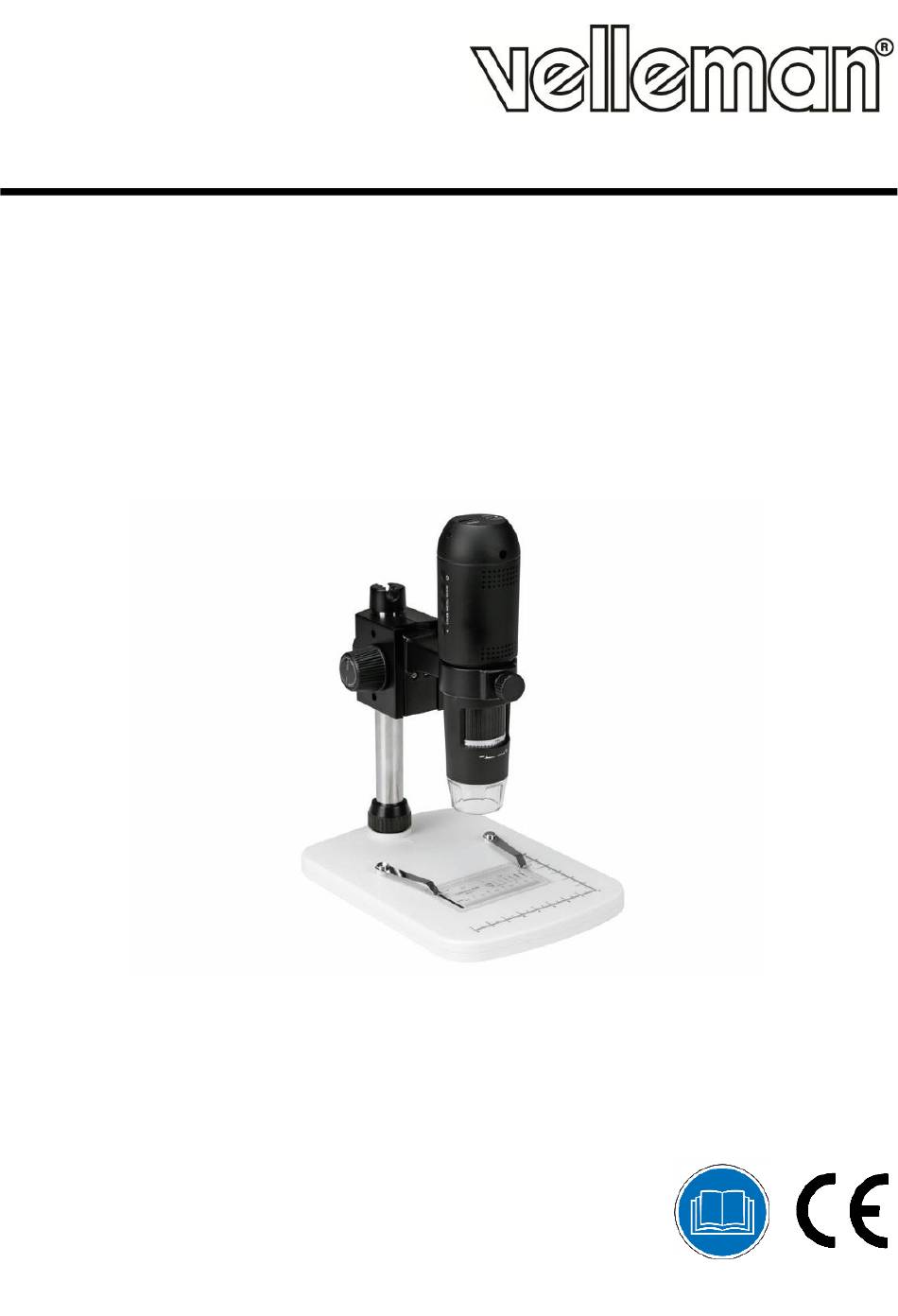

  • Page 1 CAMCOLMS2 3 MP HDMI DIGITAL MICROSCOPE 3 MP DIGITALE MICROSCOOP HDMI...
  • Page 2 CAMCOLMS2 V. 01 – 20/09/2016 ©Velleman nv...
  • Page 3 CAMCOLMS2 V. 01 – 20/09/2016 ©Velleman nv...
  • Page 4 CAMCOLMS2 V. 01 – 20/09/2016 ©Velleman nv...

  • Page 5: Safety Instructions

    If in doubt, contact your local waste disposal authorities. Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

  • Page 6: Installation

    CAMCOLMS2 Overview Refer to the illustrations on page 2 of this manual. 5 VDC + USB port LEDs HDMI port fine focus wheel microSD slot magnification ruler LED dimmer locking screw on-off locking screw mode coarse focus wheel menu coarse focus wheel...
  • Page 7 CAMCOLMS2 Menu Press the menu button to enter main menu I. Press the menu button once more to enter main menu II. Select the menu item with the down button and confirm with the capture button. Resolution Select a resolution between WVGA, 2M, 3M, 5M, 8M and 14M.

  • Page 8: Date Stamp

    CAMCOLMS2 Date Stamp Select whether to display the date or not. Date/Time Set the date and time in this window. Auto Power-Off Set the automatic power-off time between Off, 3M, 10M and 30M. Language Select your desired menu language. 9.10 TV Mode Set the encoding mode between NTSC and PAL.
  • Page 9 CAMCOLMS2 10.3 Functions Calibration It is recommended to calibrate the microscope before use. First, load the XY guide onto the display. Place the calibration ruler on the stage and fix with the stage clips. Focus the image until the picture is clear.
  • Page 10 CAMCOLMS2 Click the calibration icon and move the cursor to the picture. Click the start and end points across a known value. Enter the exact measurement values in the dialogue window. The software will automatically calibrate the magnification rate. Click OK; the adjusted magnification rate will show in the upper right corner.
  • Page 11 CAMCOLMS2 Modifying Calibration Click the calibration icon and go to Reset Magnification > Reset Picture Magnification. Reset the calibration as described above. Change the magnification rate and capture several pictures. Double-click on the picture to enter the measurement interface. Click the calibration icon and go to Set Magnification > Set Picture Magnification.
  • Page 12 CAMCOLMS2 Measuring Double-click on the picture to enter the measurement interface. Click the measurement icon and select the desired measurement option: Any Angle Line Continuous Line Radius Circle Diameter Circle Three-Points Angle Drawing and Writing Click the pen or text tool and choose your desired options.

  • Page 13: Interface Icons

    CAMCOLMS2 Capturing Video Click the video shortcut icon or go to Capture > Video. Click once more to stop recording. Timer Click the timer icon in the menu bar. Set the picture and/or video options and confirm with Start. Note Video file size is quite large.

  • Page 14: Cleaning And Maintenance

    Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
