Summary of Contents for TechLogix Networx TL-AD-HD2

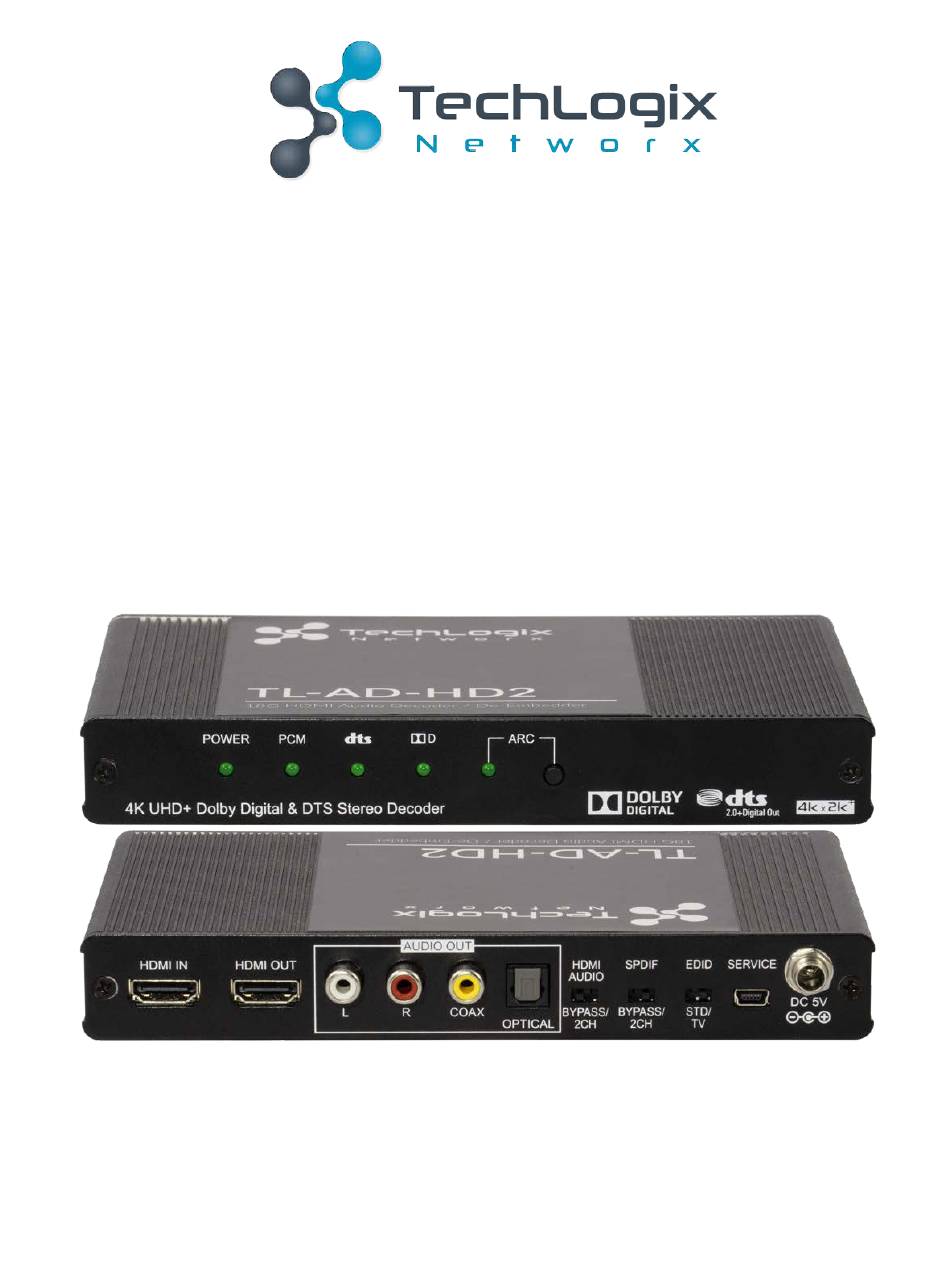

- Page 1 User Manual TL-AD-HD2 4K HDMI Audio Decoder All Rights Reserved Version: TL-AD-HD2_180824...
- Page 2 TL-AD-HD2 User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage.
- Page 3 TL-AD-HD2 User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...
-
Page 4: Table Of Contents
TL-AD-HD2 User Manual Table of Contents 1. Introduction ......................1 1.1 Introduction to TL-AD-HD ................1 1.2 Features ....................... 1 1.3 Packing List ....................2 2. Panel Description ....................3 2.1 Front Panel ....................3 2.2 Rear Panel ....................4 3. -
Page 5: Introduction
1. Introduction 1.1 Introduction to TL-AD-HD The TL-AD-HD2 4K UHD HDMI with Dolby® Digital/DTS® Stereo Audio Decoder supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance. -
Page 6: Packing List
HDMI cables in order to achieve the best image quality. The use of “Premium High-Speed HDMI” cables is highly recommended. 1.3 Packing List Ø 1 x TL-AD-HD2 Ø 1 x Power adapter (DC 5V 2.6A) Ø 1 x QR code card linking to the user manual Notes: If you find any defective or missing parts, please contact your local dealer. -
Page 7: Panel Description
TL-AD-HD2 User Manual 2. Panel Description 2.1 Front Panel POWER LED: This LED will illuminate to indicate the unit is on and receiving power. PCM LED: This LED will illuminate when LPCM audio is detected on the HDMI input. If the ARC function is active, this LED will illuminate when LPCM is detected from the ARC source. -
Page 8: Rear Panel
TL-AD-HD User Manual 2.2 Rear Panel HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. L/R OUT: Connect to powered speakers or an amplifier for stereo analog audio output. - Page 9 TL-AD-HD User Manual internal (user) EDID. Moving the switch to the right sets it to “TV” mode which will pass the EDID from the connected display device to the HDMI input device. Note: By default, the “STD” EDID contains video resolution support up to 1080p@60Hz and audio support including LPCM 2.0 up to 96kHz, Dolby Digital (5.1 channel) and DTS (5.1 channel).
-
Page 10: System Connection
TL-AD-HD User Manual 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment with proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and checked for safety. 3) All devices should be connected before being powered on. -
Page 11: Connection Procedure
Step1. Connect an HDMI source (Blu-ray, cable box) to the ‘HDMI IN’ port of the TL-AD-HD2. Step2. Connect a stereo RCA, optical, or coaxial audio cable between the TL-AD-HD2 and stereo amplifier. Step3. Connect an HDMI sink (AV receiver or TV) to the ‘HDMI OUT’ port of the TL-AD-HD. -
Page 12: Virtual Com Port Settings & Commands
TL-AD-HD User Manual 4. Virtual COM Port Settings & Commands Settings: Baud Rate: 115200bps Data bits: 8 Parity: None Flow Control: None Stop Bits: 1 www.tlnetworx.com... - Page 13 TL-AD-HD User Manual Commands: Command Name Description Parameters SET UNIT POWER OFF NONE SET UNIT POWER ON NONE GET POWER STATUS NONE SOURCEDET SHOW INPUT INFORMATION NONE SINKINFO SHOW SINK INFORMATION NONE HDCPIN SET/SHOW INPUT HDCP HDCPIN N [N=1~3, ?] STATUS 1: FOLLOW IN 2: FOLLOW OUT...
-
Page 14: Specifications
TL-AD-HD2 User Manual 5. Specifications 5.1 General 1 × HDMI Type A Receptacle Input Signal 1 x Mini-USB (service & control only) 1 × HDMI Type A Receptacle 1 × OPTICAL Toslink Receptacle Output Signal 1 × COAX Black RCA Receptacle 1 ×... -
Page 15: Dvi And Hdmi Supported Resolutions
TL-AD-HD User Manual 5.2 DVI and HDMI Supported Resolutions DVI and HDMI Supported Resolutions (Hz) Input Output 640x480@60/72/75/85 √ √ 720x400@85 √ √ 800x600@56/60/72/75/85 √ √ 1024x768@60/70/75/85 √ √ 1280x720@60 √ √ 1280x768@60/75/85 √ √ 1280x800@60 √ √ 1360x768@60 √ √... -
Page 16: Supported Audio
TL-AD-HD2 User Manual 5.3 Supported Audio Input Output Level THD+N Frequency Crosstalk Output Level/Freq. Vrms/dB±10% (A-Weight) Response >90dB <-90dB Analog 2 Vrms < 0.01% ±1 dBFS >104dB <-110dB HDMI Coaxial 0 dB < 0.00001% ±1 dBFS >141dB <-164dB 0dB/1kHz Optical 0 dB <... -
Page 17: Panel Drawing
TL-AD-HD User Manual 6. Panel Drawing HDMI IN HDMI IN HDMI OUT HDMI OUT OPTICAL OPTICAL COAX COAX DC 12V DC 12V HDMI Audio Decoder TL-AD-HD 132 mm HDMI www.tlnetworx.com... -
Page 18: Troubleshooting & Maintenance
TL-AD-HD2 User Manual 7. Troubleshooting & Maintenance Problems Causes Solutions Incorrect setting on the Check the display’s setting display Image ghosting or bad color Try another high quality A cable of poor quality connection cable Check with oscilloscope or No signal at the input /... -
Page 19: After-Sales Service
TL-AD-HD User Manual 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
