Gira 1153 00 Installation Instructions

Data Interface
GIRA
Info
Installation Instructions
Data Interface
General system information
This device is a product of the Instabus KNX/EIB-sys-
tem and complies with KNX directives.
Detailed technical knowledge obtained in Instabus
KNX/EIB training courses is a prerequisite to proper
understanding.
The functionality of this device depends on the soft-
ware. Detailed information on loadable software and
attainable functionality as well as on the software it-
self may be taken from the manufacturer's product
database.
Planning, installation and commissioning of the unit
are performed by means of KNX-certified software.
Function
The data interface ensures the connection of a PC for
addressing, programming and diagnosing Instabus
KNX/EIB components.
Fitting

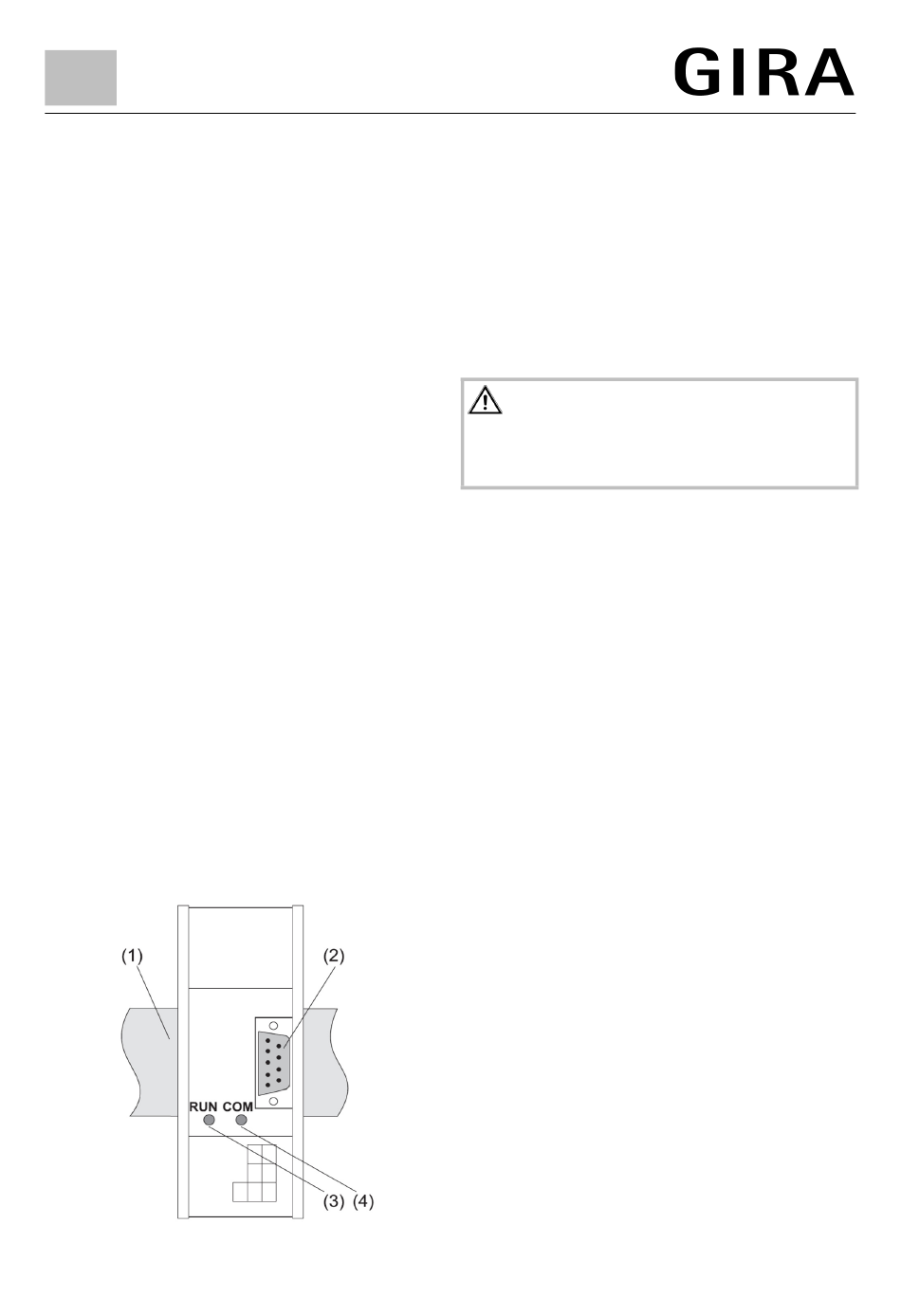

The data interface is snap-fastened on a DIN rail (1)
and connected to the Instabus KNX/EIB with the EIB
bus terminal (bus contact (7) behind the flap).
The bus line must leave the device at the bottom.
Data Interface
For the productdatabase and technical descriptions
please refer to the internet at www.gira.de offering up-
to-date information.
Indications of Danger
Caution! The installation and assembly of elec-
trical equipment may be carried out only by a
skilled person.
Operation indicators
(3) green: RUN ready for operation
(4) yellow: COM data transfer via RS 232
5/07
Order no.: 1153 00
Page 1 of 3
