USER AND
MAINTENANCE MANUAL
Heavy-Duty Air Hammer with 4
Hexagonal Chisels
Art. 0059
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0059 and is the answer not in the manual?

Questions and answers

Related Manuals for Fervi 0059

Summary of Contents for Fervi 0059

  • Page 1 USER AND MAINTENANCE MANUAL Heavy-Duty Air Hammer with 4 Hexagonal Chisels Art. 0059 TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
  • Page 2 We guarantee the product's conformity to specifications and technical instructions described in the Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in future, without the Manual being updated. Therefore, contact FERVI information about modifications that could implemented.

  • Page 3: Table Of Contents

    HARDWARE Table of Contents GENERAL SAFETY INSTRUCTIONS..............4 Risks Associated with the Work Area ................4 Risks Associated with the Presence of Rotating and/or Moving Parts......4 Personal Protective Equipment ..................5 Technical Support ......................5 Identification ........................5 DESCRIPTION OF THE AIR HAMMER AND INTENDED USE ....... 6 Technical Specifications ....................6 IMPROPER USES AND PRECAUTIONS ............

  • Page 4: General Safety Instructions

    HARDWARE GENERAL SAFETY INSTRUCTIONS 1. During use, maintain control of the tool. 2. The operators represent the most important aspect of safety. To better protect against the risk of injury, work cautiously and carefully. 3. The pneumatic tool should not be used and repaired by someone under the influence of drugs or alcohol.

  • Page 5: Personal Protective Equipment

    HARDWARE 1.3 Personal Protective Equipment When using the pneumatic tool, always wear the following:  Safety shoes;  Work gloves;  Hearing protection (cap, earplugs, etc.);  Protective goggles. Figure 1 - PPE to wear 1.4 Technical Support For any problems and/or concerns, please contact, without hesitation, the Customer Service Department of the dealer from whom you purchased the product, who has specialised staff, specific equipment and spare parts.

  • Page 6: Description Of The Air Hammer And Intended Use

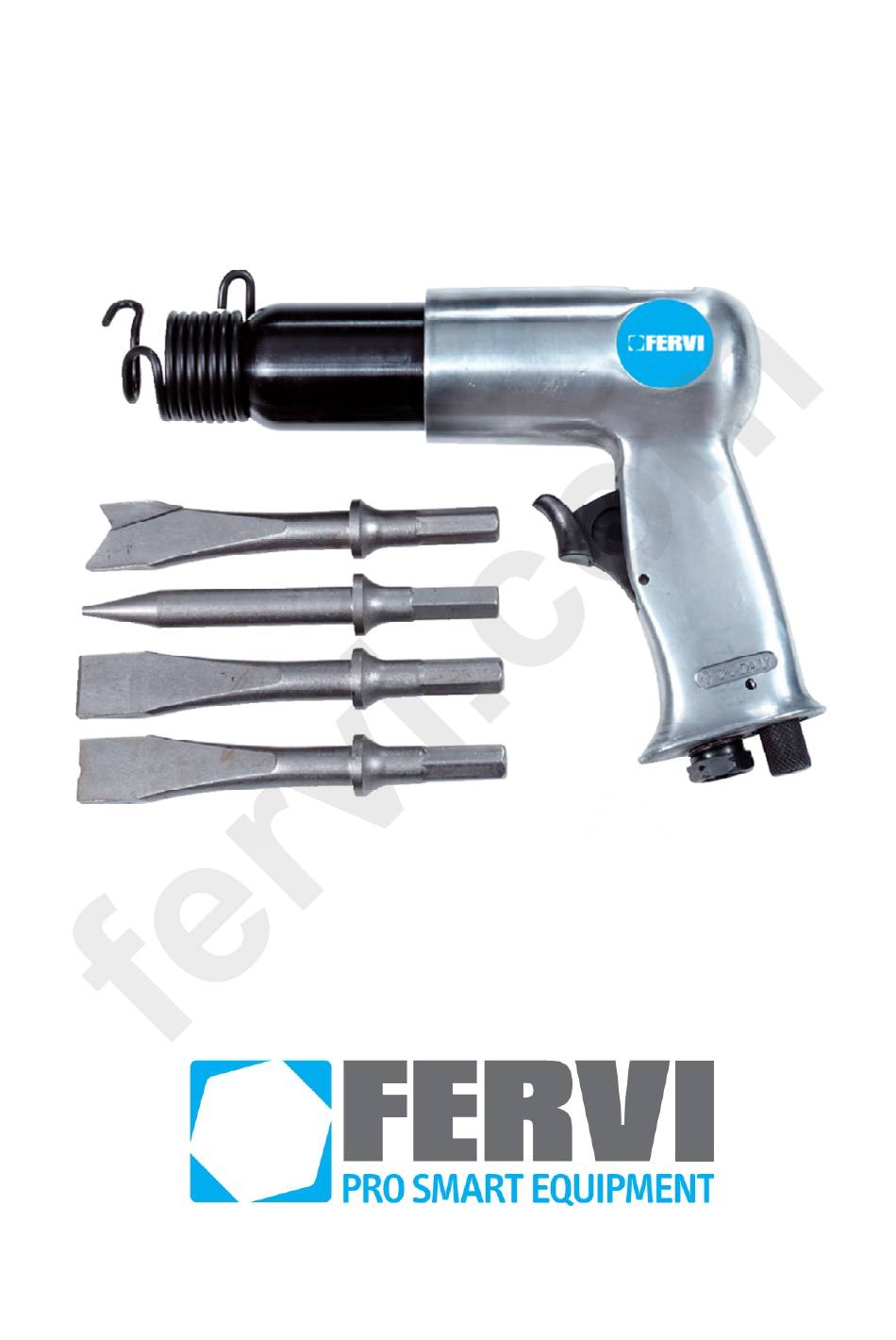

    2 DESCRIPTION OF THE AIR HAMMER AND INTENDED USE The Heavy-Duty Air Hammer (Art. 0059) is a portable pneumatic tool, to be used for chipping, chiselling and the demolition of bulk materials. By changing tools (chisels), it is possible to work with different materials, such as asphalt, concrete and wood.

  • Page 7: Improper Uses And Precautions

    HARDWARE 3 IMPROPER USES AND PRECAUTIONS IT IS STRICTLY FORBIDDEN TO:  Allow the tool to be used by untrained personnel and those who have not read the instruction manual;  Use the tool for different purposes and uses other than those for which it was designed, i.e.
  • Page 8 HARDWARE Centralized circuit Pressure regulator Quick release connector Tool Tube Anti-wear Nozzle Oiler Filter tube Figure 4 – Connecting the air supply 6. Insert the quick coupling of the supply hose into the air inlet nozzle at the bottom of the hammer.

  • Page 9: How To Use

    HARDWARE 5 HOW TO USE 5.1 Attaching the Chisels Crushing and Cutting Before attaching and/or removing the chisels, always remove the air supply hose. Protective gloves Before attaching and/or removing the chisels, wear suitable protective gloves. 1. Choose the chisel with the desired shape and size. 2.

  • Page 10: Power On / Off

    After assembling the tool and connecting the flexible compressed air supply hose, grab the air hammer by its "gun" handle. The Air Hammer, Art. 0059, is equipped with a dial for adjusting the percussion speed according to the type of material and the type of processing. The values in the...
  • Page 11 HARDWARE Type of material Number of strokes Plaster 1,500 Tile cement 2,000 Bricks 2,200 Concrete 3,000 Manually rotate the percussion speed dial to the desired position (Figure 7).  UNSCREW (anticlockwise)  to increase the speed  TIGHTEN (clockwise)  to decrease the speed ...
  • Page 12 HARDWARE In case of an emergency, immediately release the air hammer's power button. Disconnect the air hose and turn off the tool in the event of the following:  to replace the chisel;  to clean, rebuild or perform maintenance on the chisel; ...

  • Page 13: Maintenance And Cleaning

    HARDWARE 6 MAINTENANCE AND CLEANING The purpose of this section is to provide all the information on maintenance procedures and their frequency, as required by the Air Hammer, Art. 0059. Frequency ACTION Daily Weekly 1. General visual inspection 2. General cleaning 3.

  • Page 14: Bill Of Materials And Spare Parts

    HARDWARE 7 BILL OF MATERIALS AND SPARE PARTS Ref. Description Ref. Description 0059/01 BODY 0059/10 BUTTERFLY VALVE 0059/02 CLOSING VALVE 0059/11 O-RING 0059/03 FLAT VALVE 0059/12 AIR REGULATOR 0059/04 VALVE COVER 0059/13 0059/05 PISTON 0059/14 AIR INTAKE VALVE 0059/06 CYLINDER...
