Summary of Contents for Sumec PowerG PG720BS

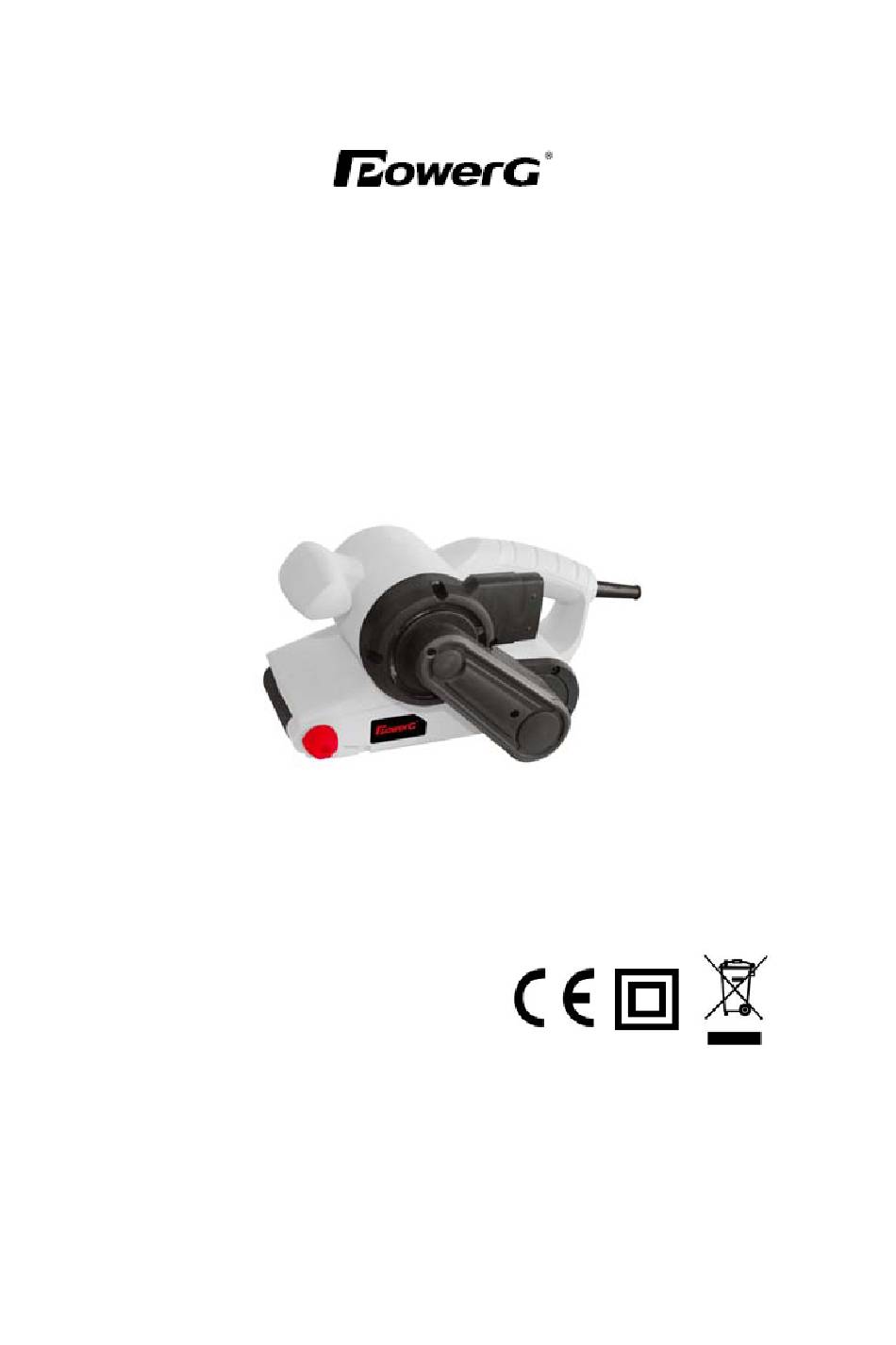

- Page 1 720W Belt Sander PG720BS Manufacturer: SUMEC Hardware & Tools Co., Ltd 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China...
-
Page 3: Technical Data
TECHNICAL DATA Belt Sander PG720BS Rated voltage/ Frequency 230-240V~50Hz Rated input power 720W No-load speed 250m/min Dimension 76x457 mm Sound pressure level =89.2dB(A) =3.0 dB(A) Power sound level = 100.2 dB(A) =3.0 dB(A) =4,805m/s K=1,5 m/s Vibration Protecting class II / DESCRIPTION OF SYMBOLS Please read all of the safety and operating instructions carefully before using this tool. -
Page 4: General Safety Instructions
Voltage Watts (Effective power) No-load speed. Protect electrical power tool from moisture! Caution – electric shock! Danger to life! Check that the device, mains lead and plug are in good condition! Safety classⅡ Wear hearing protection, dust protection mask, protective glasses and protective gloves. - Page 5 injury. Save all warnings and instructions for future reference. 1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 6 electric shock. e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock. f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable.
- Page 7 Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts. g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used.
- Page 8 changing accessories, or storing power tools. Such preventive safety measures reduce the risk of staring the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 9 hazardous to health, the sander must be connected to a suitable external dust extraction device. c) Ensure that there is adequate ventilation when working on plastic, paint, varnish etc. d) The belt sander is designed for the dry sanding of large surfaces of wood, plastic, metal and plastic and painted surfaces.
- Page 10 m) When working always hold the device securely with both hands. Always keep proper footing and balance. Switch the device off and allow it to come to a complete standstill before you put it down. When taking a break from your work, before carrying out any tasks on the device itself (e.g.
- Page 11 following parts are complete: --Belt sander --1 Dust bag --1pc sanding sheet --Operating instruction If any parts are missing or damaged, please contact with your dealer. Product Features The numbering of the product features refers to the illustration of the machine on the graphics page (Pic.
- Page 12 Warning! Before you carry out any work on the belt sander always pull the plug out of the mains socket. a) Release the tensioning lever 7 for the sanding belt by moving the tensioning lever 7 fully outwards. The tensioning lever 7 is now open and the sanding belt can be removed.
- Page 13 chemicals and the abraded particles are hot from prolonged abrasion. Therefore you must empty the device’s dust collection box before taking a break or stopping work and always avoid overheating of the abraded particles and the device. Wear a dust mask! Operation Switching on and off When operating the belt sander you can select between intermittent or...
- Page 14 sanding marks. After sanding always lift the device from the workpiece before switching it off. Advice on use Light sanding pressure is enough: Apply light sanding pressure only. The weight of the belt sander alone is adequate to produce good sanding results.
- Page 15 or distributor that has been designated as a battery recycling location. Guarantee and Service This product is guaranteed for 1 year from the original date of purchase, the guarantee applies to material and production defects. This warranty is not valid without the original dated receipt of purchase. If the product shows defect as a result of material and production defects during the period of guarantee, providing that the product has been used properly and for the purpose which it has been intended, then faulty...
- Page 16 SUMEC Declaration of Conformity SUMEC Hardware & Tools Co.,LTD 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China Declare that the product Belt Sander Model No. PG720BS Complies with the essential safety and health requirement of the...
- Page 18 Ref. Description Ref. Description Right housing Small-belt-wheel Label Sanding belts76X457 Screw ST4.1X16 Clamping Screw ST2.9X16 Cover board Screw ST2.9X10 Wrench Brush frame clip Plain washer Carbon brush frame Bearing698 Brush holder Rotating wheel Carbon brush Axis Retainning block Plain washer Mid housing Spring Main name plate...
- Page 19 Bearing626-2Z Forner Axis Insulation sheet Big gear Rotor Synchonization belt Bearing cover Dust bag Bearing608-RS...
- Page 20 720W Belt Sander PG720BS Sumec Europe GmbH Hanns-Martin-Schleyer-Str.18a 47877 Willich, Germany Helpline: 0844 856 0793...
