Sonitrol Cradlepoint IBR600 Series Quick Install Manual

1
Requirements:

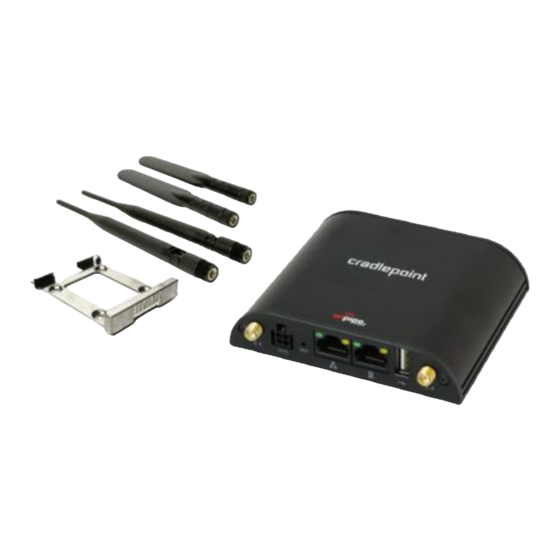

Cradlepoint® IBR600E-SP or IBR600LE2-SP Modem (Fig. 1)
Sonitrol FlexIP, iBase, or FlexiBase control panel with Keypad (Fig. 2)
1.5A @ 12VDC available power
Personal computer with LAN adapter (Fig. 3)
Cradlepoint® c
onfiguration files:
· "192 IBR600 dual LAN Rev A.bin"
· "192 iBase ONLY alternate config Rev C.bin"
· "10 iBase ONLY alternate config Rev C.bin"
UL Required Hardware:
Altronix® Power Supply PN: AX-300ULXPD8
2
Pre-Install Signal Check:
q
Insert the activated SIM card, if applicable (IBR600LE2-SP only)
q
Power up the IBR600 and connect to PC via Ethernet cable. See Figure 4.
q
On your PC, open a web browser and Go to the URL 192.168.0.1
q
Enter the default password; found on the bottom of the IBR600.
q
From the Dashboard, confirm that the Internet State = Connected.
Wireless Innovations (Sprint™ Partner)
Cell connectivity, service and device technical support, and general questions.
For more information on service plans, see:
Josh Brown:
Email: JBrown@pcsorders.com

(603) 422-2658
3
Router Configuration:
q
Log into the IBR600. (see Step 2)
q
Find the System Settings drop down.
q
Select System Software.
q In the 'System Config Save/Restore' field, select Upload from file button.
q
Select the Choose File button.
q
Browse your PC for the Cradlepoint® router configuration file, named:
q
Click the Restore Settings button.
4
Mounting the IBR600:
Install the two included modem antennas to the top antenna ports (marked with ▲) of the IBR600.
1.
(Figure 7). Ensure they are
With the IBR600 powered, the IBR600's signal strength LED's shall be used to verify signal
2.
strength. (Figure 5)
3. Mount the IBR600 in a secure location with strong signal strength using the mounting bracket
hardware that comes included. (Figure 6)
Location: DO NOT mount the IBR600 inside of the
alarm panel enclosure; signal strength will be
greatly reduced!
Extra Antennas: The bottom antenna ports are for Wi-Fi
and don't need to be installed. Leave
these antennas inside of the enclosure
so they may be used in the future if needed.
1/13/2015
Quick Install Guide
Cradlepoint IBR600
PB14-0021 . Sonitrol Cell Backup and Primary with Cradlepoint IBR600
Regional VP Sales
Gerry Portela: Technical Support Lead
NOT parallel to the
19810075 Rev A . Cradlepoint IBR600 Quick Guide
FlexIP, iBase & FlexiBase
Recommended Version Requirements:
-FlexIP 0A.07 (Boot A.03) or higher
-iBase 0A.57 (DAS "Blackfin" 0A.09) or higher
-FlexiBase 0A.17 (Boot A.03) or higher
-Keypad 0A.27 or higher
-SONIP version 3.1.47.1 or higher
(CASE SENSITIVE)
Email: sonitrolsupport@pcsorders.com

(888) 215-1005
"192 IBR600 dual LAN.bin"
ground; they should point towards the sky or ground.
Figure 5 Figure 6
SGNL
Minimum of 2
bars required!
|
Questions? Contact the DASH Line
M-F 8:30AM – 7:00PM EST
P: 800.654.6061
Email: Support@Sonitrol.com
Figure 2
Figure 1
Figure 3
Figure 4
12VDC
Trouble Connecting?
Try using the Cradlepoint
firmware version 5.3.0
http://resource.sonitrol.com/library/
asset/document/cradlepoint-ibr600-
firmware-version-530
Note
After completing this step:
Ø
IBR600 Gateway (login
URL) is changed to
192.168.0.17
Ø
IBR600 password is
changed to 65535
Figure 7
Both modem antennas shall be
connected to the top facing
ports "▲", pointed towards the
ground or sky
1/3
