Summary of Contents for Elite Projector MosicGO Sport MGFU-S

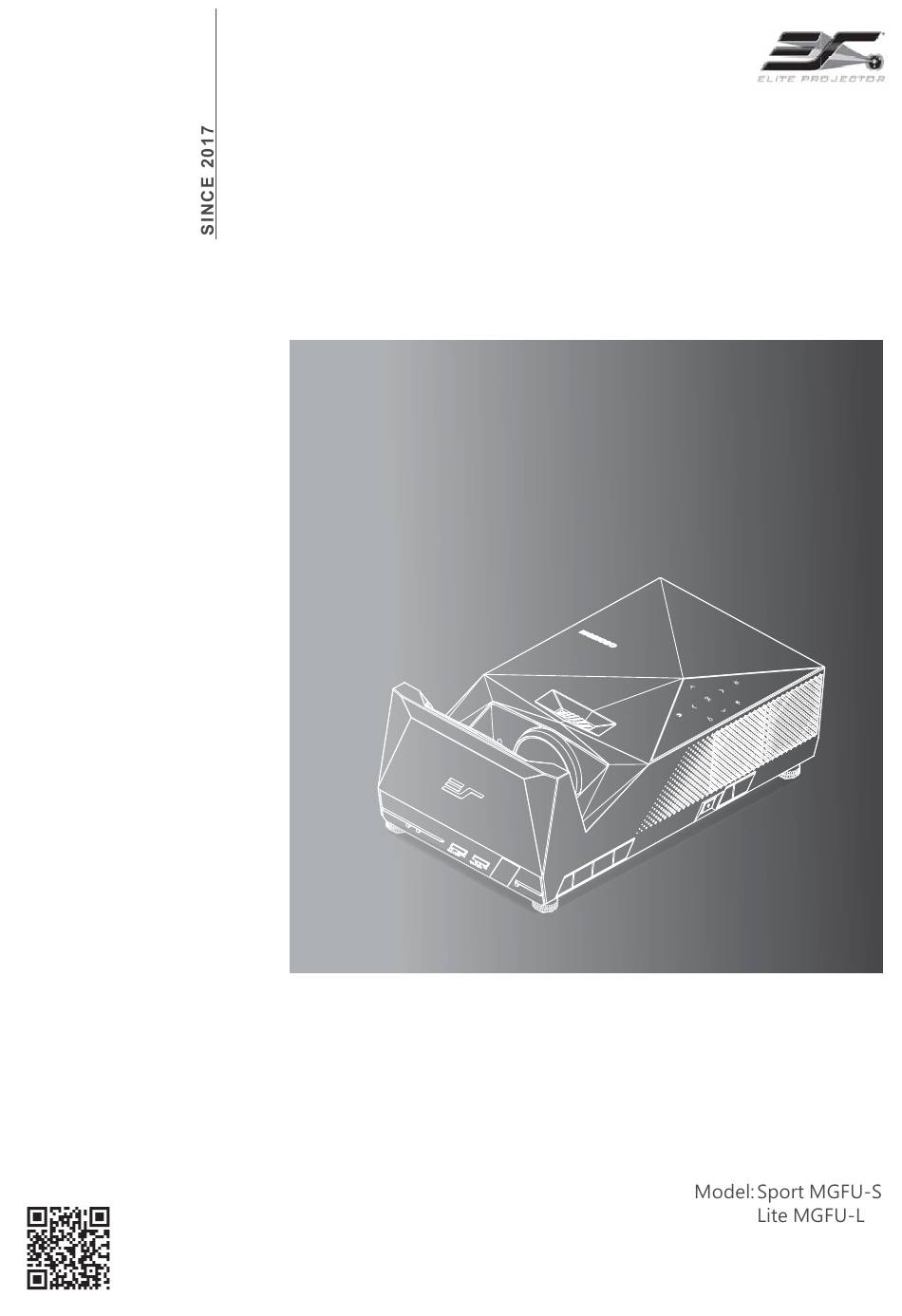

- Page 1 MosicGO ® MOVIES MUSIC POWER GO ® MosicGO Projector User’s Guide www.eliteprojector.com for more update user manual: P r i n t e d i n T a i w a n Electronic file link FBZZ-MG1Z002-03 www.eliteprojector.com/MGFU/manual...
- Page 2 To avoid retinal damage, do not stare directly or indirectly into the projector's light beam. Rather than stand in the projector's light beam to point on the screen, use a laser pointer or pointer stick instead. Make sure that students and other viewers observe the eye safety warnings and stay out of the direct light beam. Use window blinds and turn down interior light sources to reduce the washout glare of ambient light.
- Page 3 2014/30/EU EN 301489-1 EN 301489-17 EN 55032 EN 55024 Low Voltage Directive : 2014/35/EU Safety: EN 62368 , EN62133+Annex.M Apple, Macintosh, iPod, iPod nano, and iPhone are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation.
-
Page 4: Power Out
Kensington Lock Slot Ventilation Port POWER OUT 12V Trigger Out DC IN 19V Power On/O Switch USB Type C Display Port (DP) HDMI 2 HDMI 1 Earphone Jack Touch Focus Ventilation Port Tripod Mount Hole Wireless Speaker Projector Wireless Speaker On /O Button Projector On /O Button Battery / Power Status (Battery indicator only for... -
Page 5: Touch Keypad
Touch Keypad 1. Up (adjust keystone up) 2. Down (adjust keystone down) Right 4. Left OK/Enter Menu Mute Input Source Selection Home Remote Control 1. Wireless Speaker On/Off, Audio Source Selection(Note) 2. Projector On/O Brightness Adjustment (Note) 3. Up (adjust keystone up) Down (adjust keystone down) Right Left... - Page 6 MGFU-S only MosicGO MOVIES MUSIC POWER GO MosicGO MOVIES MUSIC POWER GO MosicGO Projector User’s Guide FBZZ-MG1Z002-01 Electronic file link www.eliteprojector.com www.eliteprojector.com/MGFU/manual P r i n t e d i n T a i w a n 4-A Remote Control 6.
- Page 7 Press the PJ button to turn the projector on and the status LED indicator will light up. To turn off the projector, press and hold the PJ button for over 1 second. After seeing prompt message, short press PJ button again to confirm. The MosicGO logo will show briefly before the device ®...
- Page 8 LEDs indicate battery and charging status as following table. Adapter Mode Battery Mode Geen(100%) Solid Solid Green (80% ~) Flash Solid Orange(15%~79%) Flash Solid Red(~14%) Flash Solid In battery mode, will be forced to power off if battery MosicGO ® capacity is under 10% Suggest charging the battery immediately if LED indicator is Red.
- Page 9 1. Connect the device using HDMI or USB type C cable. The projector is equipped with four elevator feet for adjusting the projected image tilt. Adjust the focus until the image is clear. To adjust the tilt: Turn the elevator feet to adjust the projected image position to the desired tilt.
- Page 10 *Note *Note *Note: MosicGO ® (Lite MGFU-L & Sport MGFU-S) portable UST (ultra-short throw) projectors are specifically designed for creating 60-80” imagery in a 16:9 aspect ratio. Throwing larger (90”-100”) images will have corner distortion and is more recommended for videos than in still shot / training presentations.
- Page 11 Earphone, 3.5mm Jack Pin assignment 12V Trigger Port, 3.5mm Jack Pin assignment 12V : 12V trigger signal for screen rolling up/down HPL : Left Channel Audio Signal GND : Signal Ground HPR : Right Channel Audio Signal GND : Signal Ground To Earphone Plug To 12V Trigger Plug Warning : Don’t plug in earphone to 12V trigger port,...
- Page 12 Mount on tripod Mount on ceiling M4 Screw ( x 4 ) ( x 4 *Standard Tripod Screw hole for tripod Screw a standard tripod into the screw hole on the projector. 1. Loosen 4 screws metal plate from MosicGO ®...
- Page 13 MosicGO ® Contrast: adjust color contrast. PICTURE Sharpness: adjust picture sharpness. Contrast Pattern Test: present pattern picture to verify focus and color situation of display. Press “OK” will return Sharpness to current video port. Pattern Test Picture Test: circularly present red, green, blue, and Picture Test white screen to verify picture color.
- Page 14 MosicGO ® Configure color properties. COLOR Gamma ［ ［ *Note: 1.All COLOR Menu can be configured only when video signal is ready. Color Temp ［ ［ 2.Some features might not be supported in current model. 3.Reset to default setting by selecting 'Menu'->'Other'->'Reset' Color Effect Standard ［...
- Page 15 MosicGO ® 12V Trigger: Enable/disable the output of 12VTrigger Out. OTHER Keystone: adjust the rectangle shape of display. 12V Trigger ［ ［ Transparency: configure the transparency of OSD(on-screen display). Keystone ［ ［ S.P.M: enable/disable Smart Projector Mode. If Transparency enable, MosicGO will automatically adjust ®...
- Page 16 If you experience a problem with your projector, please refer to the following Item Description information. If a problem persists, please contact your local retailer or service Imager center. Native x 1080 No image appears on screen Resolution Projection m (1' " - 2'2") (from screen to lens) Ensure the cable is fine.
- Page 17 3 continuous beep sound You may hear 3 continuous beep sound accompany following icon on the screen Low battery: projector is turned off immediately. Please plug power adapter to charge the battery. You can turn on the projector during charging. Battery fail: if the power adapter is plugged.
- Page 18 for more update user manual: www.eliteprojector.com Electronic file link P r i n t e d i n T a i w a n www.eliteprojector.com/MGFU/manual FBZZ-MG1Z002-03...
-
Page 19: Date Of Purchase
Customer’s name: Phone number: Email: Address: Date of purchase: Model No: S/N: ＊To ensure your right, please ask the Dealer to fill in the information Dealer’s Stamp: above, and have Dealer’s stamp on this card. ＊If date of purchase cannot be provided with dealer’s stamp, the manufacture date as recorded will be deemed to be the start of the Warranty Period. - Page 20 MosicGO ® MOVIES MUSIC POWER GO www.eliteprojector.com for more update user manual: P r i n t e d i n T a i w a n Electronic file link FBZZ-MG1Z002-03 www.eliteprojector.com/MGFU/manual...
