Operating Instructions and Parts Manual
24815
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions
could result in personal injury and/or damage to product or property. Please retain instructions for future reference.

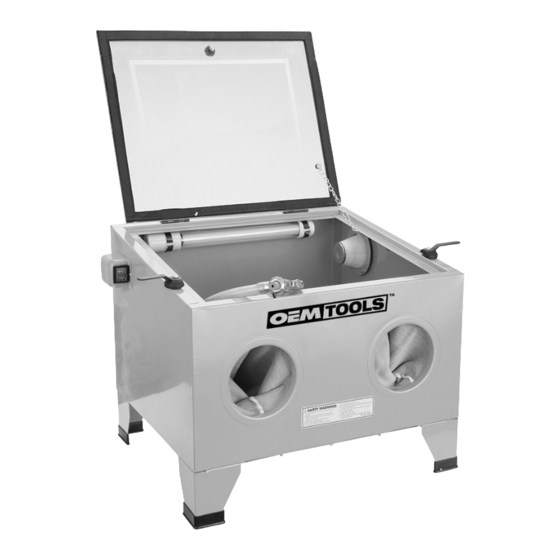

SANDBLAST BENCH TOP CABINET
FOR CUSTOMER SERVICE
CALL 1-866-458-2472
www.oem-tools.com
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose,
missing, or damaged parts. Shipping damage claim must be filed with carrier.
1
5/19
5/19
2019 OEMTOOLS™
2019 OEMTOOLS™
Advertisement
Table of Contents
Related Manuals for Oemtools 24815
Summary of Contents for Oemtools 24815
-
Page 1: Spare Parts & Service Contents
Operating Instructions and Parts Manual 24815 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference. -
Page 2: Table Of Contents
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET Thank you for purchasing this OEM Shot Blast Cabinet We strongly recommend that this unit be used with a which is designed for professional, workshop use. vacuum extraction device. Air is extracted via a double... -
Page 3: Assembly
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET ASSEMBLY Carefully unpack the unit, and check to ensure that no Connect the grit pick up hose to the pickup and damage was caused in transit. Should any damage tighten the worm drive clip securely. Locate the be apparent, please contact OEM at 1-866-458-2472 pick up on the floor of the cabinet. -
Page 4: Changing Nozzles
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET OPERATION Place the object to be cleaned in the cabinet, and Plug the transformer into the power supply and switch close the lid, securing with the two swivel clips. the power ON. Switch the lamp ON by pushing the rocker switch on the switch box “I”. -
Page 5: Maintenance
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET MAINTENANCE Before use, check to ensure that all parts are service- Carefully pull the lamp from its retaining clips then hold able, including the air inlet hose, rubber gloves and the clear plastic protective outer tube firmly and ease abrasive pick-up. -
Page 6: Parts Diagrams
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET PARTS LIST AND DIAGRAM 5/19 2019 OEMTOOLS™... -
Page 7: Parts List
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET PARTS LIST AND DIAGRAM Item Description Part No. Item Description Part No. Grid 24815-01 End Cap 24815-24 Fluorescent Tube 12V 24815-02 Abrasive Nozzle 4mm 24815-25A End Connector 24815-03 Abrasive Nozzle 5mm... -
Page 8: Troubleshooting
Operating Instructions and Parts Manual 24815 SANDBLAST BENCH TOP CABINET TROUBLESHOOTING Problem CAUSE REMEDY Excessive dust in cabinet. Air vent or airflow is blocked. Abra- Clean rear vent, and keep vent sive media worn. away from any wall. Replace abra-...
