Clark-Reliance GL53 Installation Instructions

Illuminator
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
World's Leader in Boiler
Trim Instrumentation
GL53 Illuminator Installation
All installation steps should be performed by a qualified technician and
should be executed in accordance with all applicable national and local
codes.
Instructions
16633 Foltz Parkway, Strongsville, OH 44149 USA
Telephone: (440) 572-1500
Fax: (440) 238-8828
www.clark-reliance.com
Section: R500
Section:
Bulletin: R500.E178A
Bulletin:
Date: 3-17-06
Date:
Supercedes: E178A
Supercedes:

Advertisement

loading
Need help?

Need help?

Do you have a question about the GL53 and is the answer not in the manual?

Questions and answers

Related Manuals for Clark-Reliance GL53

Summary of Contents for Clark-Reliance GL53

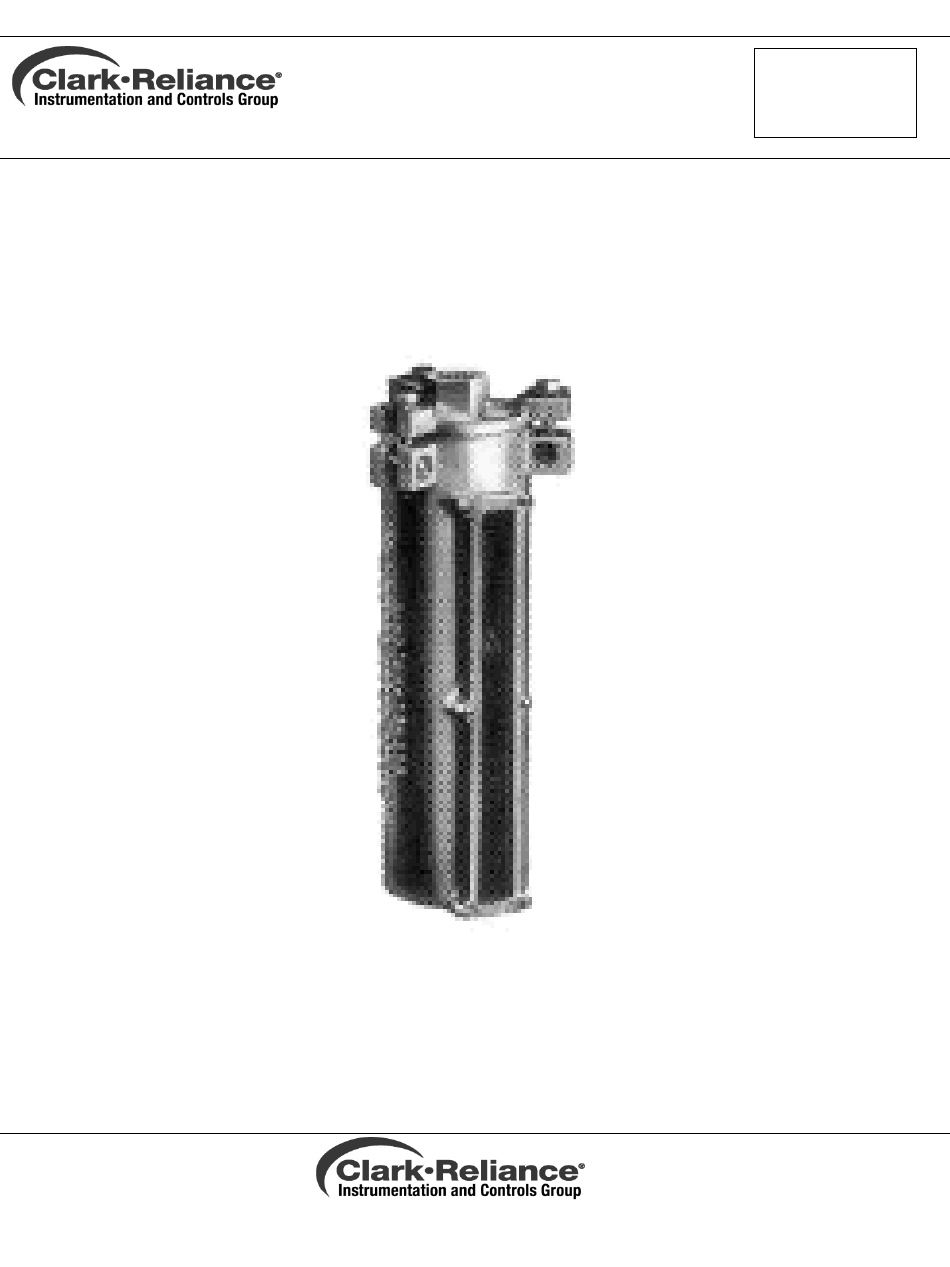

  • Page 1 Date: 3-17-06 Supercedes: Supercedes: E178A World’s Leader in Boiler Trim Instrumentation GL53 Illuminator Installation Instructions All installation steps should be performed by a qualified technician and should be executed in accordance with all applicable national and local codes. 16633 Foltz Parkway, Strongsville, OH 44149 USA...
  • Page 2 (for 240 supply). An illuminator timer provides up to 3 minutes of operation time, by depressing a pushbutton. This results in extended lamp life, reduced power consumption and maintenance. Consult C-R or your local representative for additional details. Page 2 16633 Foltz Parkway, Strongsville, OH 44149 USA Telephone: (440) 572-1500 Fax: (440) 238-8828 www.clark-reliance.com...
  • Page 3 12. Wire the illuminator to the 120 V.* sure that the mounting plate is centered on the power supply. (*Unless lamp is for 230 V. lamp socket/conduit connector assembly. service) Page 3 16633 Foltz Parkway, Strongsville, OH 44149 USA Telephone: (440) 572-1500 Fax: (440) 238-8828 www.clark-reliance.com...
  • Page 4 Section: Bulletin: Date: Supercedes: World’s Leader in Boiler Trim Instrumentation REPLACEMENT PARTS PART NUMBER DESCRIPTION GL53-7R LAMP SOCKET E32-24 60W-120V FROSTED LAMP V13064 50W-250V FROSTED LAMP Page 4 16633 Foltz Parkway, Strongsville, OH 44149 USA Telephone: (440) 572-1500 Fax: (440) 238-8828...
