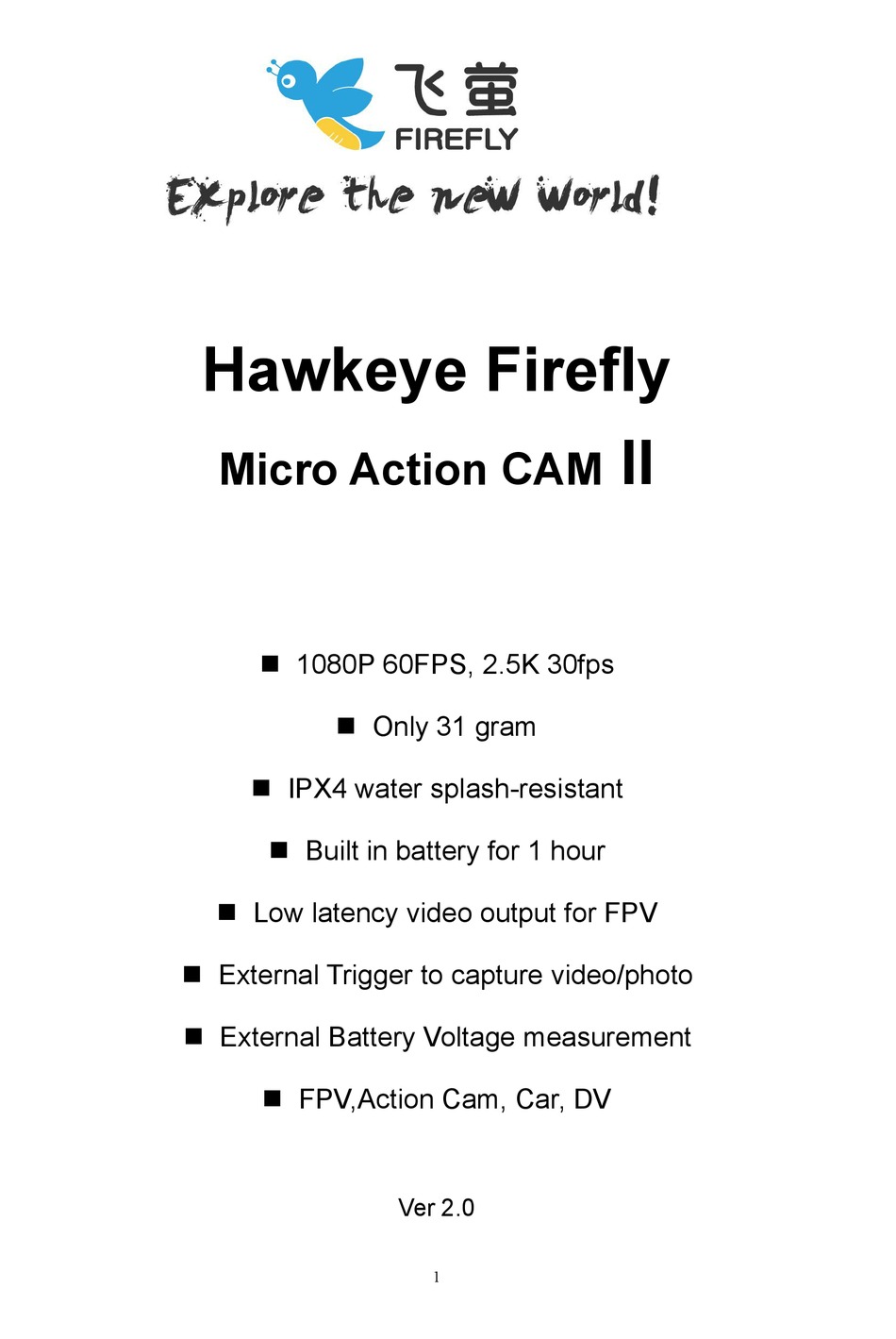

Hawkeye Firefly
II
Micro Action CAM
 1080P 60FPS, 2.5K 30fps
 Only 31 gram
 IPX4 water splash-resistant
 Built in battery for 1 hour
 Low latency video output for FPV
 External Trigger to capture video/photo
 External Battery Voltage measurement
 FPV,Action Cam, Car, DV
Ver 2.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro Action CAM II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hawkeye Firefly Micro Action CAM II

  • Page 1 Hawkeye Firefly Micro Action CAM  1080P 60FPS, 2.5K 30fps  Only 31 gram  IPX4 water splash-resistant  Built in battery for 1 hour  Low latency video output for FPV  External Trigger to capture video/photo  External Battery Voltage measurement ...
  • Page 2: Table Of Contents

    Contents Safety Guidelines:......................3 Features :........................4 USB pins :........................4 ............................4 Performance and Specifications:...................5 Buttons:..........................5 Video Settings:........................5 Photo Settings:......................... 6 System Settings:......................6 Record videos:........................7 Battery Charging:......................7 Transferring Files:......................7 Update Firmware:......................7 NOTE:..........................9...
  • Page 3: Safety Guidelines

    Safety Guidelines: Please read the instruction manual carefully before using the camera for the first time. 1.It’s a high-precision product, do not drop or crash it. 2.Do not expose the camera to strong magnetic objects, sch as magnets or electrical motors.
  • Page 4: Features

    Features : LED lights: 1. Mode button. Red:1080P/720P Mode. 2. Power/OK button Blue:2.5K Mode. 3. Mini 8P USB Red&blue: Photo Mode. 4.Reset Button:Press to reset the Green:Charging LED; machine On: charging, Off: Battery 5.Micro SD card port Full. 6.External Key USB pins :...
  • Page 5: Performance And Specifications

    Performance and Specifications: Resolutions 2.5K 30FPS/ 1080P 60/30FPS/ 720P 60FPS PAL/NTSC Micro SD card Class 10 SD card supported 8-64G Size Weight 31 gram Battery 600mAH Working time About 60 minutes Charging time About 2-3 Hours File format *.MOV Lens F/2.8 ,6 glasses Angle Diagonal 160 degrees...
  • Page 6: Photo Settings

    White Balance: Auto , Daylight,Cloudy,Fluroresc. Fluoresc.1, Hawkeye, Incandesc. ISO:Auto,ISO100, ISO 200, ISO400, ISO800,ISO1600,ISO3200. Color: Natural, Vivid, Pale. Effect: Normal, Sepia, B&W, Negative. Contrast:-100 to +100. Saturation:-100 to +100. Sharpness:-100 to 100. Photo Settings: Photo Size: 12M. Photo quality: Super Fine, Fine. Self timer: Off, 2sec, 3sec,5sec,10sec.
  • Page 7: Record Videos

    Record videos: Press Power/OK button for 3 seconds to power on, then press Power/OK button once to record. The videos are 3 minutes per clip, and will loop record by default, you can change it in menu. Battery Charging: Connect the camera to a computer or phone charger using the included USB cable.
  • Page 8 interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 9: Note

    NOTE: For more information please check our Youtube/Facebook channel: Hawkeye Firefly Official...
