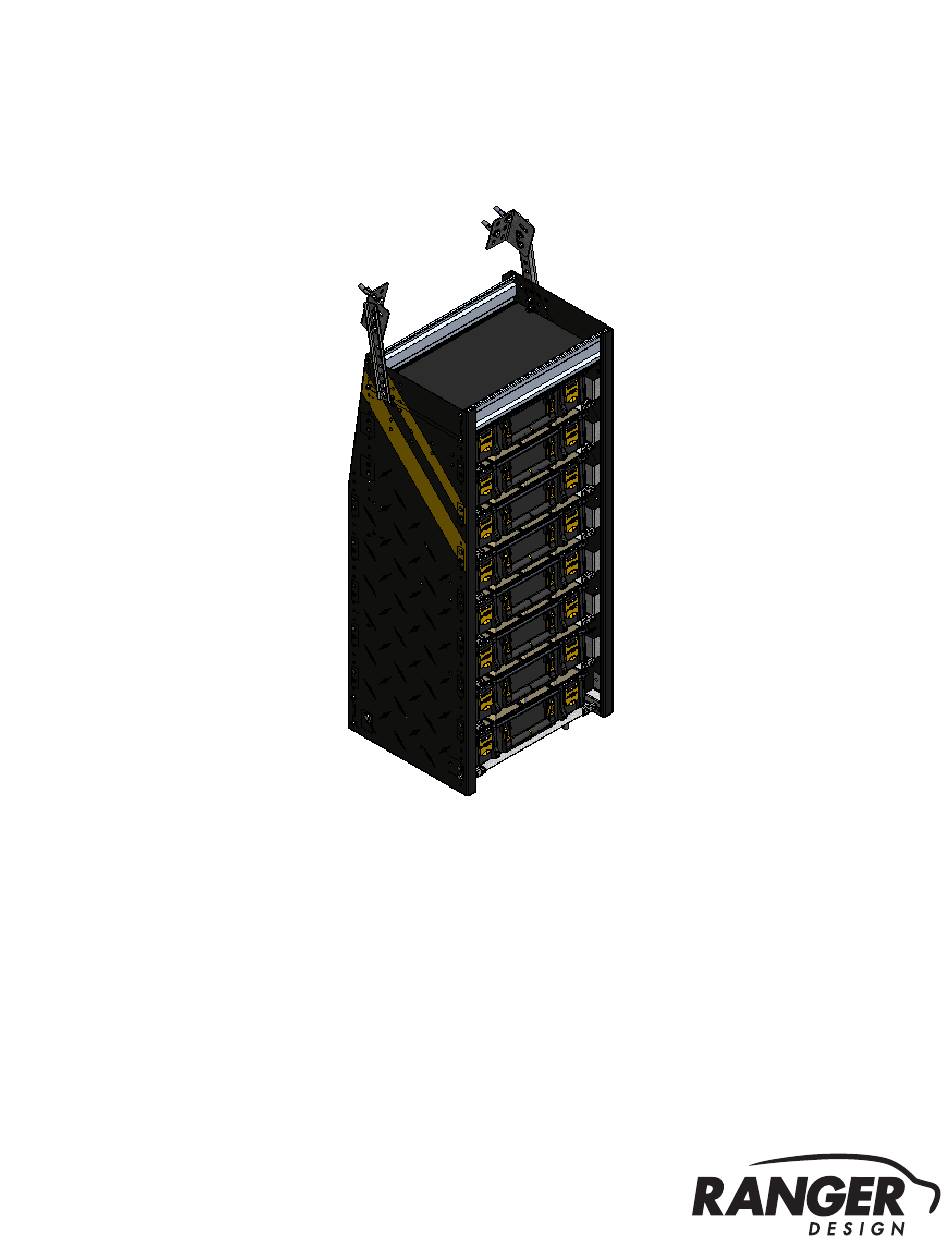

- Page 1 INSTALLATION GUIDE N4-PS20-8 Partskeeper Cabinet ( steel )
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 5 q 1.2 Shelf Assembly..........................6 - 7 Phase 2 - Installation q 2.1 Attach Wall Brackets To The End Panels..................q 2.2 Mark Holes For Plus Nuts....................... q 2.3 Attach Plus Nut.......................... - Page 3 EN - 402 × 19.5 - 00 Shelf Extrusion ( 19.5" ) 94 - 5013 Assembly Fastener Kit 96 - 5013 Install Fastener Kit N4-PS20-8 Installation Guide | REV. A1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 1/4"-20 # 94-112 ZINC 12× Flat Washer 2× # 98-116 5/16" ZINC #92-102 Screw #14 × 1" Flat Washer 4× 1/4" # 98-112 ZINC N4-PS20-8 Installation Guide | REV. A1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 #90-204 Hex Bolt 5/16" × 3/4" ZINC #98-116 Flat Washer #94-116 Serrated Nut Spacer 4× 0.375" ID, × 1.0" OD × 0.25" LONG # 98-157 NYLON N4-PS20-8 Installation Guide | REV. A1 | Page 5 For technical support, contact us at 1-800-565-5321...
-
Page 6: Shelf Assembly
#90-106 Hex Bolt 1/4" × 1/2" #98-112 Flat Washer #94-112 Serrated Nut 2× 94-5013 #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #94-116 Serrated Nut N4-PS20-8 Installation Guide | REV. A1 | Page 6 For technical support, contact us at 1-800-565-5321... - Page 7 Cordless Impact q 1/2" Socket HARDWARE USED 4× hand tighten the bolts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut N4-PS20-8 Installation Guide | REV. A1 | Page 7 For technical support, contact us at 1-800-565-5321...
-
Page 8: Phase 2 - Installation
1/2" Socket HORIZONTAL RIM HARDWARE USED BRACKET HEAD 4× hand tighten the bolts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut N4-PS20-8 Installation Guide | REV. A1 | Page 8 For technical support, contact us at 1-800-565-5321... - Page 9 Mark 2 holes of each end panel on the vehicle floor. NOTE: If you are using Ranger floor, please go to page TOOLS q Marker MARK N4-PS20-8 Installation Guide | REV. A1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 8× 96-5013 #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT N4-PS20-8 Installation Guide | REV. A1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE N4-PS20-8 Installation Guide | REV. A1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 #94-132 5/16" Plusnut ips when to use spacer most vehicle use spacer when not over ribs W/ Spacer W/O Spacer N4-PS20-8 Installation Guide | REV. A1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 #92-102 Screw 1" HARDWARE USED 2× floor fastener kit #90-490 Carriage Bolt 5/16" × 1" #98-116 Lock Washer #98-122 Flat Washer #94-104 Hex Nut N4-PS20-8 Installation Guide | REV. A1 | Page 13 For technical support, contact us at 1-800-565-5321...
-
Page 14: Attach Wall Brackets
Cordless Impact q 1/2" Socket HARDWARE USED 4× 96-5013 #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut N4-PS20-8 Installation Guide | REV. A1 | Page 14 For technical support, contact us at 1-800-565-5321... - Page 15 1/2" Socket FASTENERS USED 4× wall kits fastener kit #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut N4-PS20-8 Installation Guide | REV. A1 | Page 15 For technical support, contact us at 1-800-565-5321...
- Page 16 “You have successfully installed your N4-PS20-8 Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: N4-PS20-8 Installation Guide | REV. A1 | Page 16 For technical support, contact us at 1-800-565-5321...
