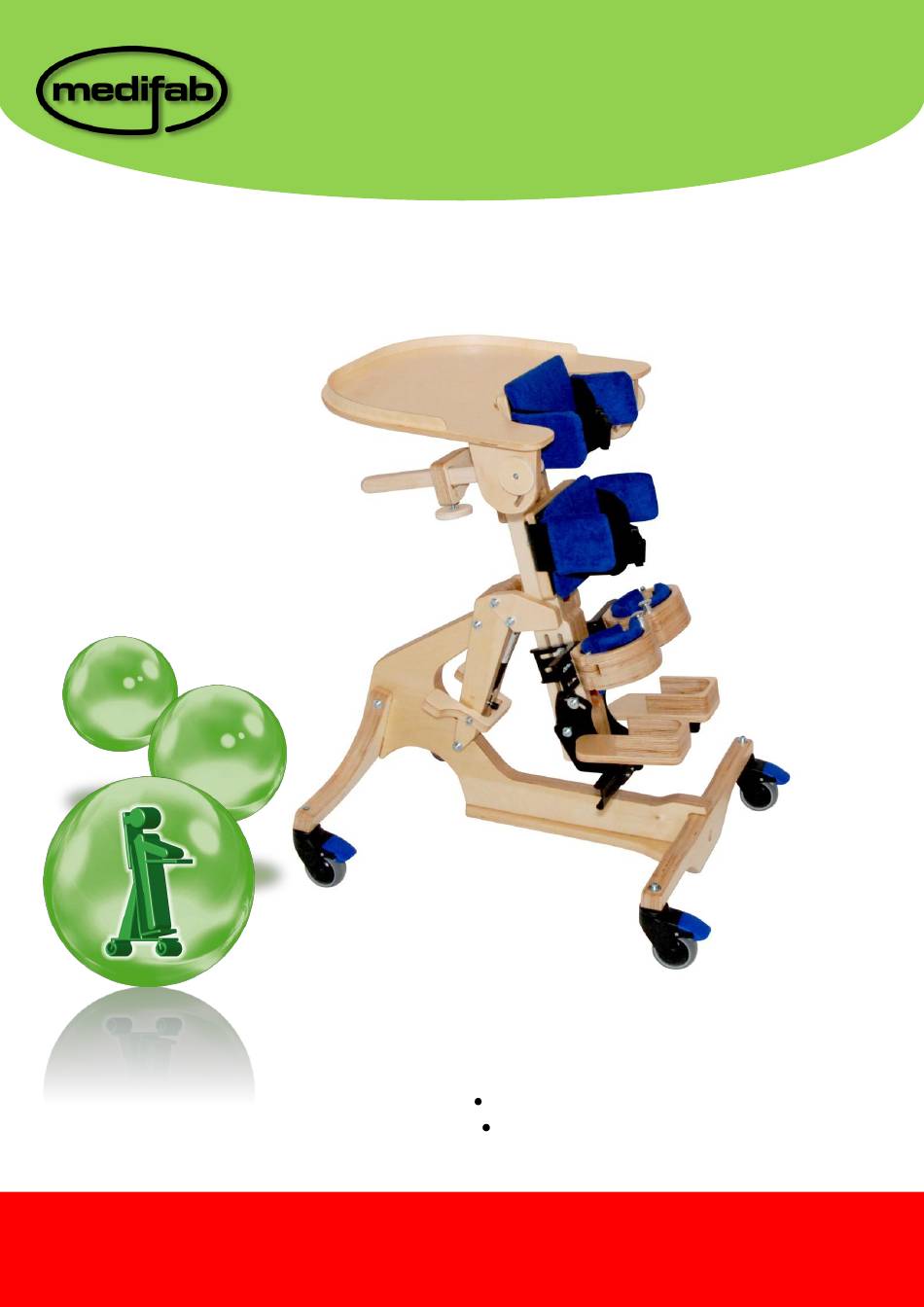

- Page 1 Multistand 2000 Therapist and Carer manual Medifab Ltd Australia: 26 Pardoe Street, Devonport, TAS 7310 New Zealand: 32 Detroit Drive, Rolleston 7675 Call: 1300 543 343 (AU) 0800 543 343 (NZ) www.medifab.com info@medifab.com Please Read Before Use...
-
Page 2: Table Of Contents
Multistand 2000 User Manual Timoteos Oy Sisällysluettelo Description of product ......... 3 Maintenance..........3 Important! ..........3 Contents of box ........4 Base assembly ........4 Frame assembly ........5 Supine or prone setup ......6 Measuring and adjusting ....... 7-8 Helping the user into the stander ... -
Page 3: Description Of Product
Multistand 2000 User Manual Timoteos Oy Description of product: Onni is a product for well supported standing. 4 high quality casters allow easy and agile mobility. Separate adjustments for each leg allow a very demanding posture. The product can be used for either prone or supine standing, without additional components. -
Page 4: Contents Of Box
Multistand 2000 User Manual Timoteos Oy Contents of package Base Front wheel axle Rear wheel axle Frame with trunk supports Head rest Tray ATTENTION! The adjustment tool is located in the middle part of the vertical frame, by the pivot point. -
Page 5: Frame Assembly
Multistand 2000 User Manual Timoteos Oy Attaching the frame Grab the frame and lift it into place (see picture to the left). There are clear slots for the gas spring frame in the base, marked with arrows in the picture. -
Page 6: Supine Or Prone Setup
Multistand 2000 User Manual Timoteos Oy Supine or prone setup 4.1 Head rest On the backside of the thoracic trunk support pad are two holes for attaching the head rest. Adjust the trunk pad a bit upward in order to reach the screws properly without obstacles. -
Page 7: Measuring And Adjusting
Multistand 2000 User Manual Timoteos Oy Measuring and adjusting 5.1 User height User height defines the size of the product to be used: 60 - 95 cm : size 1 90 - 130 cm : size 2 120 - 155 cm : size 3 130 - 180 cm : size 4 5.2 Foot rests and hip... -
Page 8: Helping The User Into The Stander
Multistand 2000 User Manual Timoteos Oy 5.4 Knee blocks Measure the distance from the foot to the lower edge of the patella. Adjust the knee block’s upper edge to that height from the foot rest. Possible adjustments for flexion, distance or abduction will be... -
Page 9: Technical Information And Measures
Multistand 2000 User Manual Onni measurements 9210 (size 1) 9220 (size 2) 9230 (size 3) 9240 (size 4) 60 - 95 cm 90 - 130 cm 120 - 155 cm 130 - 180 cm 25 - 45 cm 37 - 61 cm... - Page 10 Your enthusiastic distributor is Medifab Ltd New Zealand Head Office Phone +64 3 307 9790 Australian Head Office +64 3 307 2820 32 Detroit Drive 26 Pardoe Street solutions@medifab.com Rolleston 7675 East Devonport, TAS 7310 Call 0800 543 343 Call 1300 543 343...
