FQ 47B
V 1.1 – 30.03.2018
PHASE AND FEEDER ON LINE
CONTROLLER
mPAD
CAUTION: Read this manual before using the device
M A D E
S.A. au capital de 270 130 €
167, Impasse de la garrigue
F 83210 LA FARLEDE
Tél. : +33 (0) 494 083 198 - Fax : +33 (0) 494 082 879
E-mail : contact@made-sa.com - Web : www.made-sa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mPAD and is the answer not in the manual?

Questions and answers

Summary of Contents for Made mPAD

  • Page 1 M A D E S.A. au capital de 270 130 € 167, Impasse de la garrigue F 83210 LA FARLEDE Tél. : +33 (0) 494 083 198 - Fax : +33 (0) 494 082 879 E-mail : contact@made-sa.com - Web : www.made-sa.com...
  • Page 2 R E V I S I O N H I S T O R Y Rév. Modifications Date & author 1.61 Translation from French P. PICON version This manual is important for your safety. Read it carefully in its entirety before using the device, and keep it for future reference. 2 / 29...

  • Page 3: Table Of Contents

    S U M M A R Y SAFETY INFORMATION ................5 1.1. Safety recommendations ............5 1.2. Following the safety recommendations ........5 1.3. Warning labels ................6 OVERVIEW ....................7 2.1. Operating principle ..............8 2.2. Components ................10 2.3.
  • Page 4 FAULT CASES .................... 24 6.1. Transmitter in normal mode ............ 24 6.2. Transmitter in test mode ............24 TECHNICAL CHARACTERISTICS .............. 25 7.1. System ..................25 7.2. Transmitter ................25 7.3. Receiver ..................25 MAINTENANCE ................... 25 RECYCLING ....................26 GUARANTEE ....................

  • Page 5: Safety Information

    SAFETY INFORMATION This document is the mPAD User's Guide. It describes the implementation of the device, as well as the different modes of operation to facilitate its use. 1. SAFETY INFORMATION 1.1.Safety recommendations Please read this guide carefully before unpacking, configuring or using this equipment.

  • Page 6: Warning Labels

    SAFETY INFORMATION 1.3.Warning labels Read all labels and wordings shown on the instrument. Injuries or equipment damage could occur if these instructions are Symbol requiring reference to the instruction manual for instructions concerning operation or safety recommendations. Dangerous Voltage Ac current Do not throw away with household waste 6 / 29...

  • Page 7: Overview

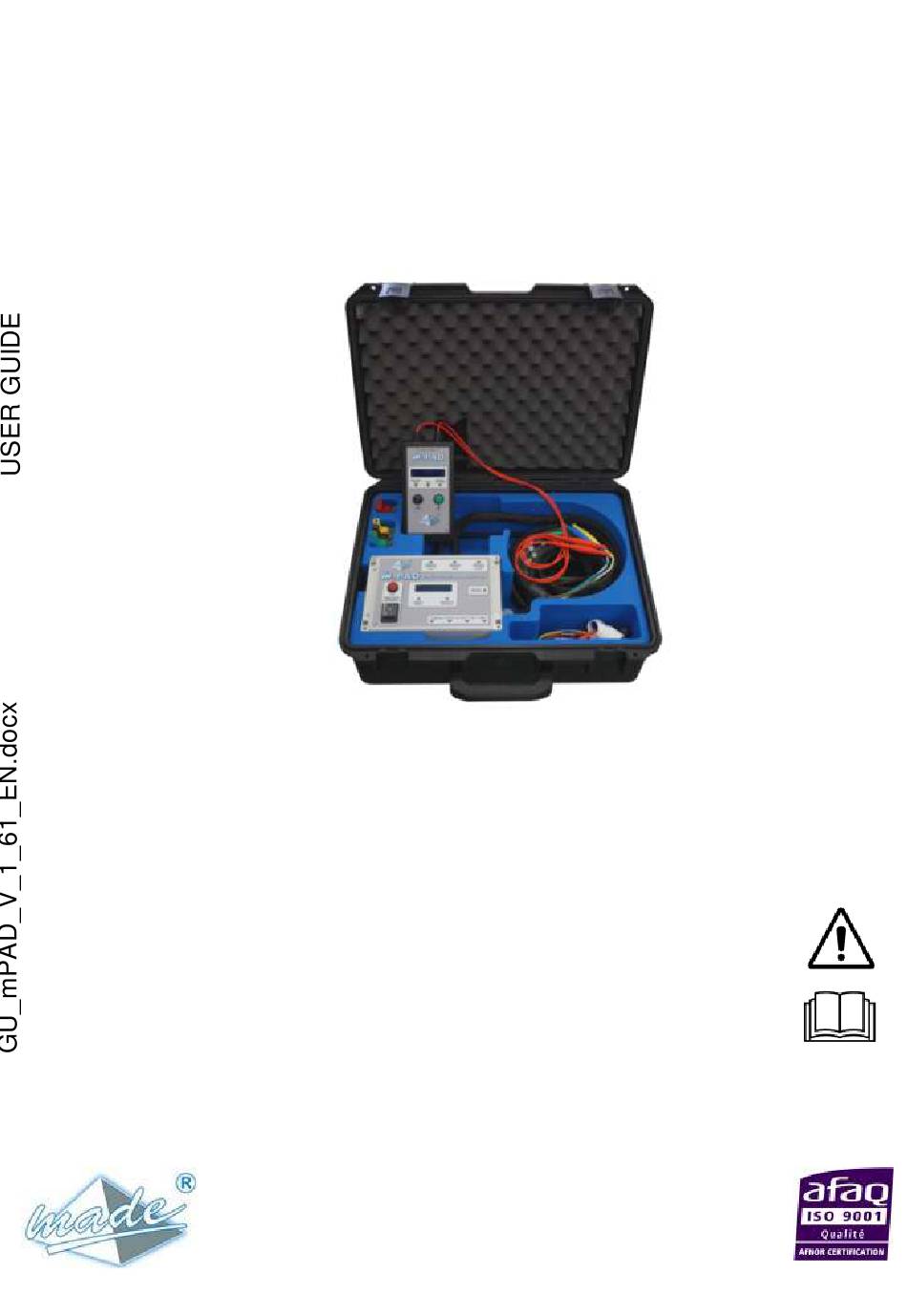

    OVERVIEW 2. OVERVIEW Figure 1 VIEW of the M.PAD system mPAD is developed, designed manufactured by the MADE S.A. company Its main functions are:  The identification of the phase and feeder at any point in the LV network, live and under load, downstream of a distribution Substation.

  • Page 8: Operating Principle

    The complete system is housed in a robust transport case. MPAD consists of a transmitter, left in place once turned on, and a receiver which is connected to the network at the points at which the phase and feeder are to be identified.
  • Page 9 OVERVIEW Figure 2 Transmitter connections 9 / 29...

  • Page 10: Components

    OVERVIEW 2.2.Components Receiver Croc clips Connecting cables for the Transmitter test mode 2.3.Brief description of setting up the system The conditions for access and connection are governed by the rules established by the Network Operator. 2.3.1. Placing the transmitter  Connect the neutral and the three phases to one of the feeders from the distribution substation.

  • Page 11: Transmitter

    TRANSMITTER it is only necessary that the directional marks on the underside are all facing the transformer.  Turn on the transmitter and check that there are no error messages on the display.  Take the receiver to the various points on the network requiring identification to carry this out.

  • Page 12: Description

    4. Red to L3 This association must be complied with since the phase identification is made relative to these connections of the network to the transmitter. Thus the network phase connected to the green connector is shown as L1 on the receiver even this is the phase three in the substation.
  • Page 13 TRANSMITTER 3.3.1. Connection in a TIPI type substation: Figure 3 TIPI Substation Figure 4 Voltage conection via Ø4mm plugs from the TIPI voltage outputs 13 / 29...
  • Page 14 TRANSMITTER Figure 5 Installation of current coils around each TIPI feeder 3.3.2. Connection in a TUR type substation Figure 6 TUR 14 / 29...
  • Page 15 TRANSMITTER Figure 7 Voltage connections by croc clips on a feeder in a TUR type substation Figure 8 Connection to LV terminals on a distribution transformer Figure 9 Installation of current coils on each feedr in a TUR type substation The uninstalled coil is kept closed without a cable so as to keep the correct number sequence 15 / 29...

  • Page 16: Connection Of The Current Measurement Rogowski Coils

    3.4.Connection of the current measurement Rogowski coils The mPAD is equipped with 4 to 12 flexible (Rogowski) coils for current measurement depending on the chosen option. These coils are grouped in fours in a robust cable sheath fixed to the transmitter.
  • Page 17 TRANSMITTER The coils must definitely be closed around the three phases and NOT the neutral, see the drawing below. In addition, they must all be in the same sense. To be sure of this the marking on each coil should be oriented towards the transformer (the opposite, all towards the load is also useable, but for reasons of simplicity and to have a simple rule for setting up, the first is preferable ;...

  • Page 18: Turn-On

    TRANSMITTER 3.5.Turn-On Once the connections described in §3.2 and §3.3 above have been made, it suffices to press the “I” on the power switch. The cooling fan starts, the fault LED µP extinguishes, and the display gives some indications:  The name of the device (mPAD) ...

  • Page 19: System Test Mode

    TRANSMITTER 3.7.System Test Mode mPAD employs significant number Rogowski current measurement coils. Although the connections have been chosen with care for reliability and robustness, a bad contact could develop. To ensure that the system is functioning correctly, a test mode, easy to use, is available.

  • Page 20: Receiver

    Turn-on button 4.2.Connection The MPAD receiver is connected to the LV network using the cables supplied with fused 4 mm. banana plugs IP2X CAT IV, on which are fitted probe points or croc clips. It is important that, once the connection is made, it is maintained without interruption until the full data block is received from the transmitter (between 4 and 20s).
  • Page 21 RECEIVER 4.2.1. Connection to the client terminal cabinet Figure 12 Connection by croc clips Figure 13 Connection by probes Figure 14 Special connection case Figure 15 connection to a IP2X cabinet 21 / 29...

  • Page 22: Operation

    It is thus possible that in some cases the sum of these effects militate against the correct operation of MPAD. Nevertheless, even if the performance may be affected, it can fulfil most of its function.

  • Page 23: If Only The Phase Is Identified

    ADVICE FOR USE IN DISTURBED ENVIRONMENT 5.1.If only the phase is identified The data blocks are received from the transmitter but the feeder is not or ambiguously identified. 5.1.1. Single phase access  The phase to which the client is connected has a problem, it may be that this is temporary, in which case a new attempt a little later will work.

  • Page 24: Fault Cases

    6.1.4. The LED fault µP is lit and there is a message on the display  Connection fault : Check that the connections are correctly made, that there are no inversions phase/neutral and that all fuses are OK.  Transmission problem : Check the connections, there could be a bad contact or a fuse blown.

  • Page 25: Technical Characteristics

    1,6A@1000V breaking power 30KA 8. MAINTENANCE Opening the system is not allowed. This is reserved exclusively for qualified personnel accredited by MADE-SA. An annual check can be programmed. Use only a clean dry cloth for cleaning. Never use solvent or a product based on solvent to clean the system or its accessories.

  • Page 26: Recycling

    If such a fault is discovered during the period of the guarantee, MADE decides at its choice to repair or replace the defective product, excluding the costs of transport and initial delivery.

  • Page 27: Claims Limitations

    10.2.Claims limitations Claims having for object repair or replacement are the only allowable claims in case of the breaking of this guarantee. The MADE Company cannot be held responsible, whether on the basis of strict responsibility or any other legal basis, of any incidental or consecutive damage resulting from a violation of the guarantee or from carelessness.

  • Page 28: Annexe

    12.1.Declaration of conformity CE déclaration of conformity Déclaration : CE_mPAD / 01 / 2013 The manufacturer MADE SA 167, Impasse de la Garrigue F 83210 LA FARLEDE Declares the product: mPAD Has been designed and manufactured to conform to : The EU directives and specifications listed CEM 2004/108/CE relative to «...
