Summary of Contents for Silent Venus SVP600
- Page 1 Silent Venus SVP600 INSTALLATION & MAITENENCE This product must be installed in strict accordance with local plumbing codes. A licensed plumber should install product. **Visit: www.thesilentvenus.com/our-system for instructional videos**...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Descriptive Diagram........................... 1 Cautionary Notice..........................2 Introduction / General Information....................3 Standard Operation..........................4 Electrical Requirements........................5 Sanitary Inlets............................6 Bathtubs..............................6 Shower Stalls............................6 Sewer Pipe Connection........................7 Proper Disposal............................. 7 Pre-Installation Tips........................8-10 Placement Options..........................10 Installation Diagrams........................ -
Page 3: Descriptive Diagram
DIAGRAM & SPECIFICATIONS Air flow cap Activated carbon The sponge Cover plate Floating bucket Rubber connecting pipe Hose hoops The water pipe Check valve 10. Main housing Main body foot 12. Self-tapping screw 13. Flat mat 14. Self-tapping screw 15. Filter 16. -
Page 4: Cautionary Notice
CAUTIONARY NOTICE Using the unit for purposes and in situations apart from its intended function can lead to damages and void your warranty. The conditions of misuse include but are not restricted to: • Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood, building materials, kitty litter or anything that could halt or damage or corrode the unit. -
Page 5: Introduction / General Information

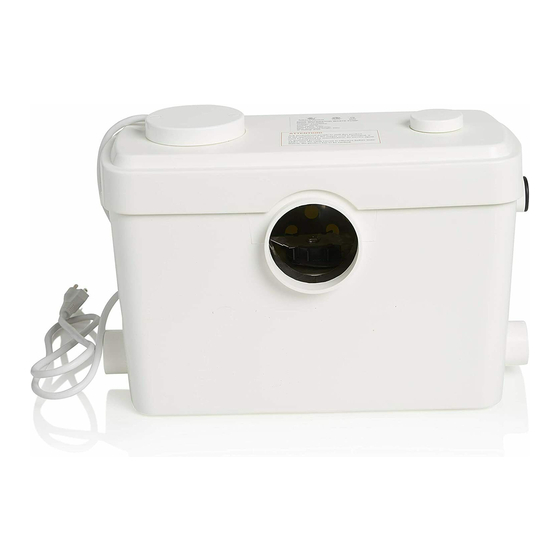

INTRODUCTION The Silent Venus macerator is a residential pumping system for toilet and other bathroom fixtures. The tank collects sewage from toilets, showers, and bathtubs via the simple principle of gravity. A built-in pressure switch detects the incoming waste and starts a pump combined with cutting blades. This pump works in tandem with several cutting blades to convert the sewage into a fluid form which can be easily pumped into drains via small-diameter pipes. -
Page 6: Standard Operation
STANDARD OPERATION In order to function, The Silent Venus unit consists of three major parts: o The container, which securely houses the operating mechanism o A pressure chamber, which activates and deactivates the pump o The induction motor, which drives the cutting blade and the impeller For effective use, the macerating unit should be connected to a rear spigot outlet toilet via the toilet’s outlet on the wall, and the waste collected should be discharged into a... -
Page 7: Electrical Requirements
For users wanting to pump in both vertical and horizontal directions, the following calculations should be used: • 3 feet of a vertical lift is roughly equivalent to 30 feet of a horizontal run • A bend or change in direction would result in some losses which must be deducted from the overall discharge performance. -
Page 8: Sanitary Inlets
SANITARY INLETS In addition to the large inlet on the front of the unit that's designed for a toilet, the macerating unit is equipped with two additional 2" inlets, one on either side of the case. The macerating unit is connected to the drainpipes of sanitary fittings in the toilet and bathroom via two inlets. -
Page 9: Sewer Pipe Connection
SEWER PIPE CONNECTION Using a 1 1/2-inch branch hub, install a standard wye fitting connecting the discharge pipe to a sewer pipe. If the discharge pipe is made of copper, purchase a brass male adapter ((MPT x Hub) 3/4" x 3/4" sweat) for the subsequent steps. If it is a CPVC pipe, then a CPVC male adapter ((MPT x Hub) 3/4"... -
Page 10: Pre-Installation Tips
PRE-INSTALLATION TIPS GRAVITY FALL The unit accepts wastewater by gravity; it does not “vacuum” in water. All inlet pipe work must have a positive gravity fall, (1/4" per foot). All horizontal piping from the macerating unit must also have a positive gravity fall to allow free drainage when the pump stops. - Page 11 PIPE WORK All pipe work should be either copper, PVC or CPVC (Do not use flexible pipes). Hangers should not be less than three feet apart to prevent pipe rattling. DISCHARGE Never discharge directly into an open drain, fixture, manhole or rainwater drainpipe.
-
Page 12: Placement Options
AVOID DIRECT FALL Where the point of discharge into the soil stack is significantly lower than the base of the unit, a vacuum relief valve may need to be fitted at the highest point in the pipe run in order to avoid siphonage of the water seal. - Page 14 � Silent Venus PERFORMANCE "" feet I pieds -· )'._ & feet I pieds 15 n-..x � 12 ..� i ··· ·rr · · · · u :::, 3 ..I/min � 240 2703 US gallon/min 00 feet pieds FLOW RATE (DEBIT) FERME...
-
Page 15: Installation Instructions (Step By Step)
INSTALLATION INSTRUCTIONS STEP 1 PLACE THE TOILET Place the toilet bowl in a position where it does not come in contact with a wall or room partition. For the resilient mounts to function effectively, the bowl must be placed on a perfectly leveled surface. The distances between the fastenings and the discharge pipe must not exceed 3ft (1m). - Page 16 3B.) CONNECT THE INLET PIPES There are three inlet connections; two on the side a It is not necessary to connect them all, however, you must fill any unused inlet with the provided plugs Only straight vertical sections and horizontal sections with small gravity fall. Caution: DO NOT INSTALL DIAGONALLY These connections must be properly secured by placing the clamps over each opposing side of the gaskets and tightening.
- Page 17 C.) CONNECT THE DISCHARGE PIPE For effective use, the macerating unit should be connected to a rear spigot outlet toilet via the toilet’s outlet on the wall, and the waste collected should be discharged into a drainage pipe with a minimum diameter of 3/4"...
-
Page 18: Activating The Unit
STEP 5 CARBON FILTER & DESCALER (RECOMMENDED) Open the lid and insert carbon filter. Close the lid back in place. You may also connect this to an air vent. De-Scaler fluid is recommended at least once a month to prevent buildup on the unit. -
Page 19: Normal Operating Procedures
INSTALLATION COMPLETE! QUESTIONS? Do not hesitate to contact us at: support@thesilentvenus.com NORMAL OPERATING PROCEDURES Once the toilet is flushed or water leaves your bathtub or shower, the waste (both human waste and toilet paper from the toilet or dirty water from the bathtub or shower) enters the macerating unit. -
Page 20: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Causes Solution Disconnect the unit from the Blockage in the unit. power supply This could be due to any of the following: Using a siphon, drain the toilet bowl and the macerating unit. • Something other Motor Remove the bowl and check for than toilet paper any obstruction... - Page 21 Check if the unit is properly connected to an electric supply. If not, the fault lies with the motor itself. Silent 1. Loss of power 2. Faulty pressure Motor switch Check the small plastic pipe covering the switch for any blockages Remove the plastic pipe to access the switch Pressure...
-
Page 22: Disassembly
TROUBLESHOOTING The macerating unit is very reliable. With normal use long service is assured. However, in certain cases an incident may occur which you may rectify yourself. Before taking any action check the following points: o Plumbing system. Flush system, water supply turned on. o Electrical system. -
Page 23: Impeller Check
o If the unit would not be used for a long period of time, either due to vacation or maintenance purposes, or even instances of power failure, ensure that the water supply to the tank is completely turned off. Then, flush the unit to remove the remaining water in the tank. -
Page 24: Cutter Blades
CUTTER BLADES CAUTION: The blades are sharp and should be handled with extreme care. The blades can be easily removed if they ever require replacement. Simply remove the retaining cir-clip on top of the blade/rotor assembly and lift rotor/blade assembly off the spindle. The blades can now be slid sideways, removed and replaced. -
Page 25: Warranty Information
LIMITED WARRANTY 1 Year Warranty from Date of Purchase Subject to the terms and conditions set out below, Silent Venus, (hereafter designated the as the Company) warrants that it will repair or replace the product or any of its component parts, at the Company’s discretion if it deems that the product or part it is defective or does... -
Page 26: Returns And Servicing
RETURNS AND SERVICING In the event that the unit needs to be returned for service, please call for possible options, or to inquire about an authorized repair shop in your area. When you are required to return the macerating unit to the manufacturer, please ensure that prior to shipping, the unit has been cleaned and disinfected inside and outside.
